Industrial Electric Heating Systems
Introduction
Xiangyuan provides customized industrial electric heating systems for oilfield, petrochemical, steel, metallurgy, testing, pipeline, and process heating applications.
Unlike a single electric heater, an industrial heating system can integrate electric heaters, control cabinets, pumps, valves, sensors, pipelines, skid frames, insulation, temperature monitoring, and safety interlock logic into one complete heating solution.
Our engineering team can design each system according to process medium, heating capacity, temperature range, pressure condition, installation environment, control requirements, and project safety standards.
Why Choose Our Industrial Electric Heating Systems
✔ Complete process heating package integration
✔ Custom design for oilfield, petrochemical, pipeline, and industrial sites
✔ Skid-mounted, inline, deep well, radiant tube, and heat tracing solutions
✔ Integrated control cabinet, sensors, safety interlocks, and monitoring
✔ Engineered for high temperature, pressure, outdoor, and continuous operation
✔ Factory testing and technical documentation support
Typical Technical Parameters
| Parameter | Typical Range / Options |
|---|---|
| Heating Medium | Crude oil, heavy oil, thermal oil, process liquid, air, nitrogen, flue gas, process gas, and special industrial media |
| Heating Power | 10 kW – 2000 kW or higher by multi-unit system design |
| Temperature Range | Customized according to medium and process requirements |
| Operating Pressure | Atmospheric pressure to 1.0–2.5 MPa; high-pressure designs available upon request |
| System Type | Inline heating system, circulation heating system, skid-mounted heating system, deep well heating system, heat tracing system, or complete process heating package |
| Control System | PID, SCR/thyristor, PLC, HMI, remote monitoring, and integrated control cabinet optional |
| Main Components | Electric heater, control cabinet, pump, valves, sensors, instruments, skid frame, insulation, and safety interlock |
| Materials | Carbon steel, SS304, SS316L, SS310S, Incoloy, nickel-based alloy, or selected materials |
| Safety Protection | Over-temperature, low-flow, pressure, leakage, liquid level, grounding, and process interlock |
| Custom Design | Process layout, heating power, medium, pressure, temperature, control logic, and installation environment |
Engineering, Safety & Documentation
Each industrial electric heating system can be engineered as a complete process heating package according to site conditions, heating demand, control requirements, and safety protection logic.
Process Heating Design
Heating capacity, medium properties, temperature rise, flow rate, pressure condition, and site layout can be reviewed for proper system sizing.
System Integration
Electric heaters, control cabinets, pumps, valves, instruments, pipelines, insulation, and skid frames can be integrated into one heating package.
Control & Interlock Logic
PID control, SCR/thyristor power control, PLC, HMI, remote monitoring, and safety interlocks can be configured when required.
Factory Testing & Documentation
System inspection, wiring check, functional testing, general arrangement drawings, wiring diagrams, and operation guidance can be provided.
Industries Served
Xiangyuan industrial electric heating systems are designed for demanding process environments where stable temperature control, continuous operation, custom system integration, and project-specific engineering support are required.
Oil & Gas / Oilfield Heating
Integrated electric heating systems for crude oil, heavy oil, produced liquids, pipeline heating, tank heating, viscosity control, and skid-mounted oilfield applications.
Petrochemical Processing
Custom process heating systems for thermal oil, chemical liquids, process fluids, gas heating, temperature control, and continuous petrochemical production lines.
Steel & Metallurgy
High-temperature electric heating systems for air heating, gas preheating, ignition support, radiant tube heating, drying, and metallurgical process applications.
Power Generation & Energy
Industrial electric heating systems for auxiliary heating, flue gas heating, air preheating, thermal oil circulation, and energy infrastructure process support.
Marine & Offshore
Marine electric heating systems for fresh water, lube oil, fuel oil, offshore process heating, compact installation, and corrosion-resistant operating environments.
Industrial Manufacturing
Custom electric heating packages for production equipment, process air heating, liquid heating, tank heating, drying systems, and general manufacturing applications.
High-Temperature Testing
Electric heating systems for laboratory equipment, pilot process lines, high-temperature test platforms, controlled heating chambers, and engineering validation projects.
Environmental Protection
Electric air and gas heating systems for exhaust gas heating, VOC treatment, flue gas treatment, condensation prevention, and industrial emission control processes.

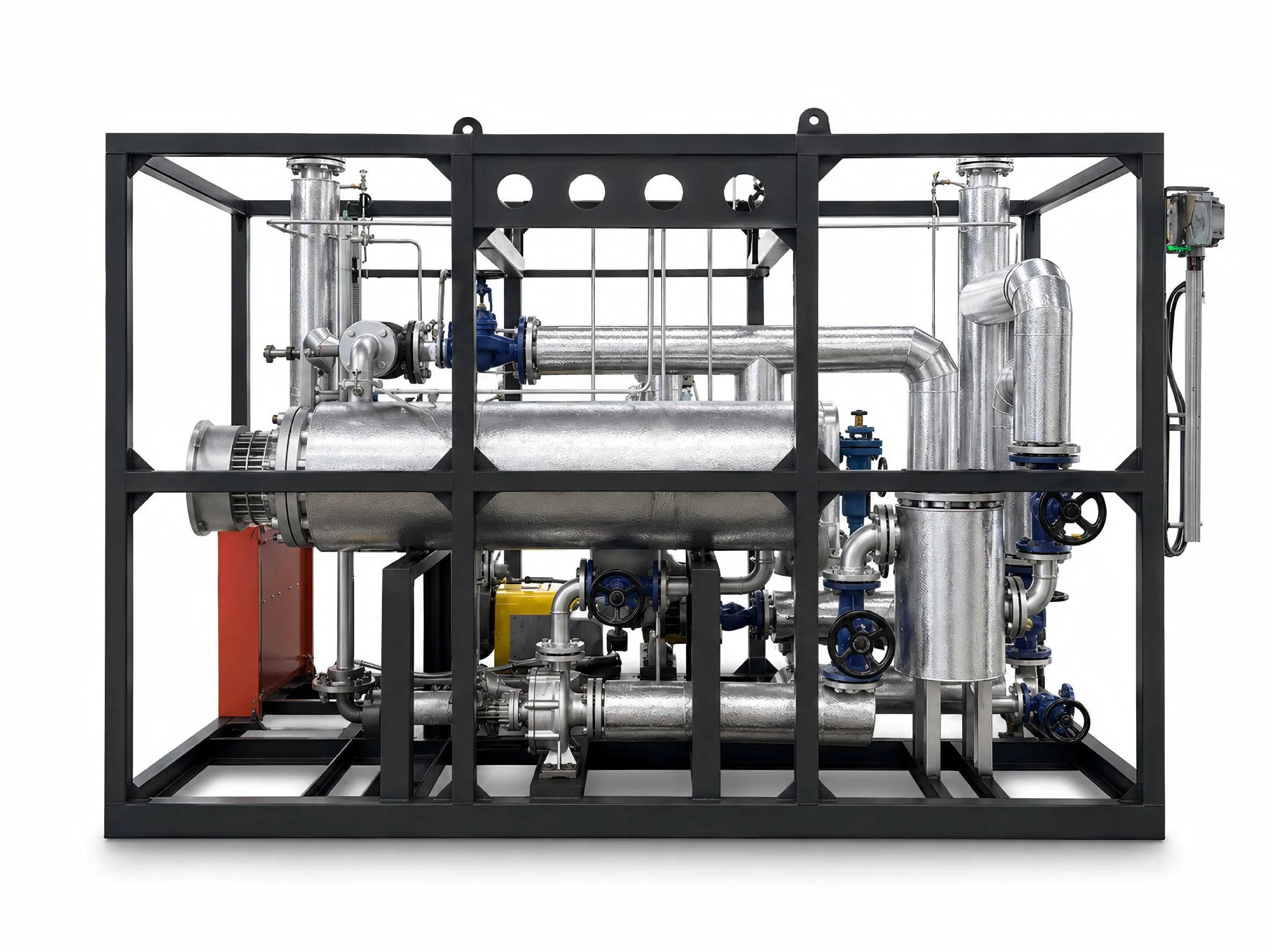

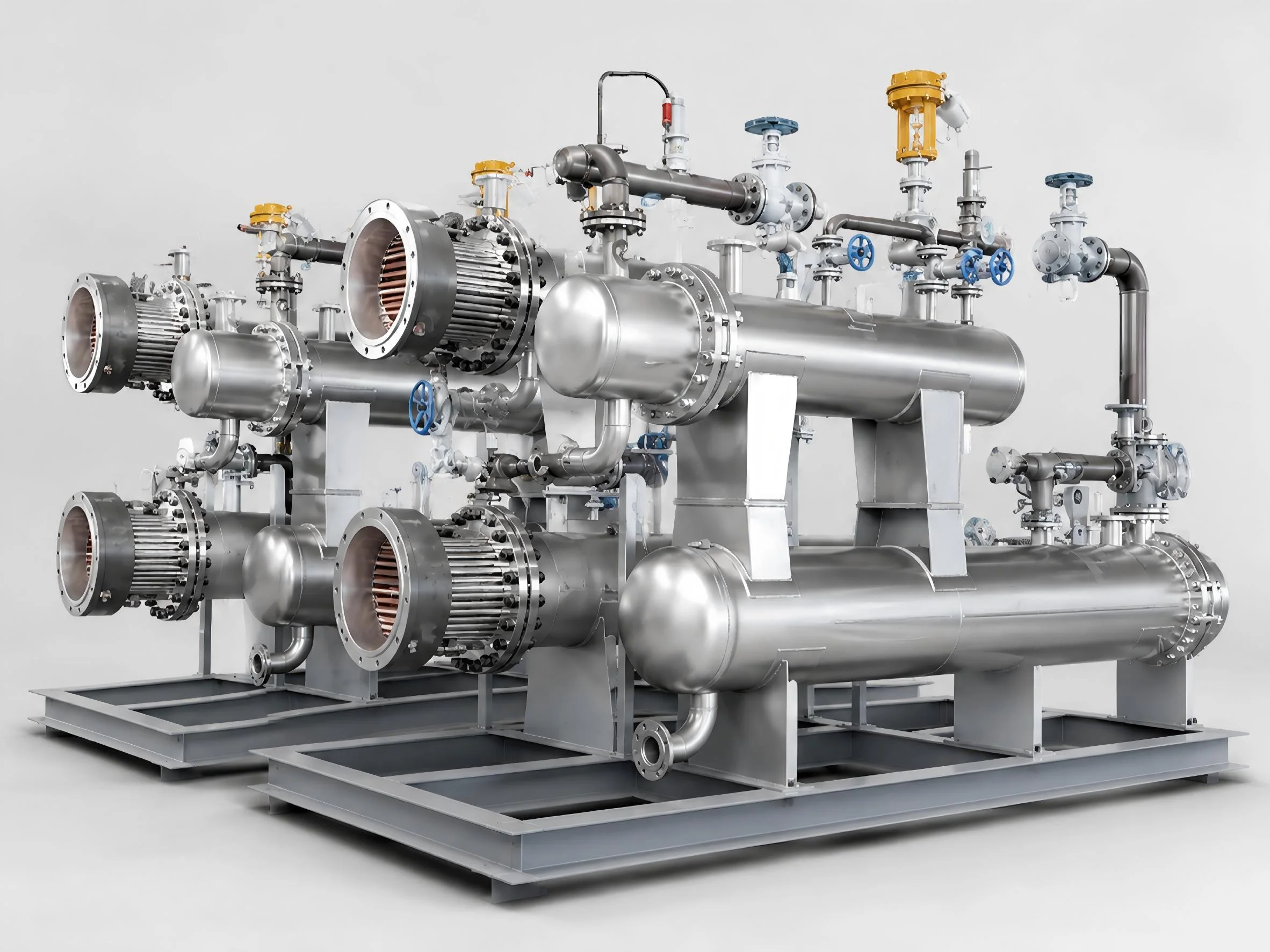

Oilfield Electric Heating System
Description
Designed for oilfield production, transportation, and processing applications requiring reliable heating and temperature control. The system can be supplied as a complete heating package with electric heaters, control cabinet, pumps, valves, sensors, skid frame, and insulation when required.
Applications
Oil production facilities, gathering stations, wellhead systems, crude oil transportation, viscosity reduction, pipeline heating, storage terminals, and oilfield processing operations.

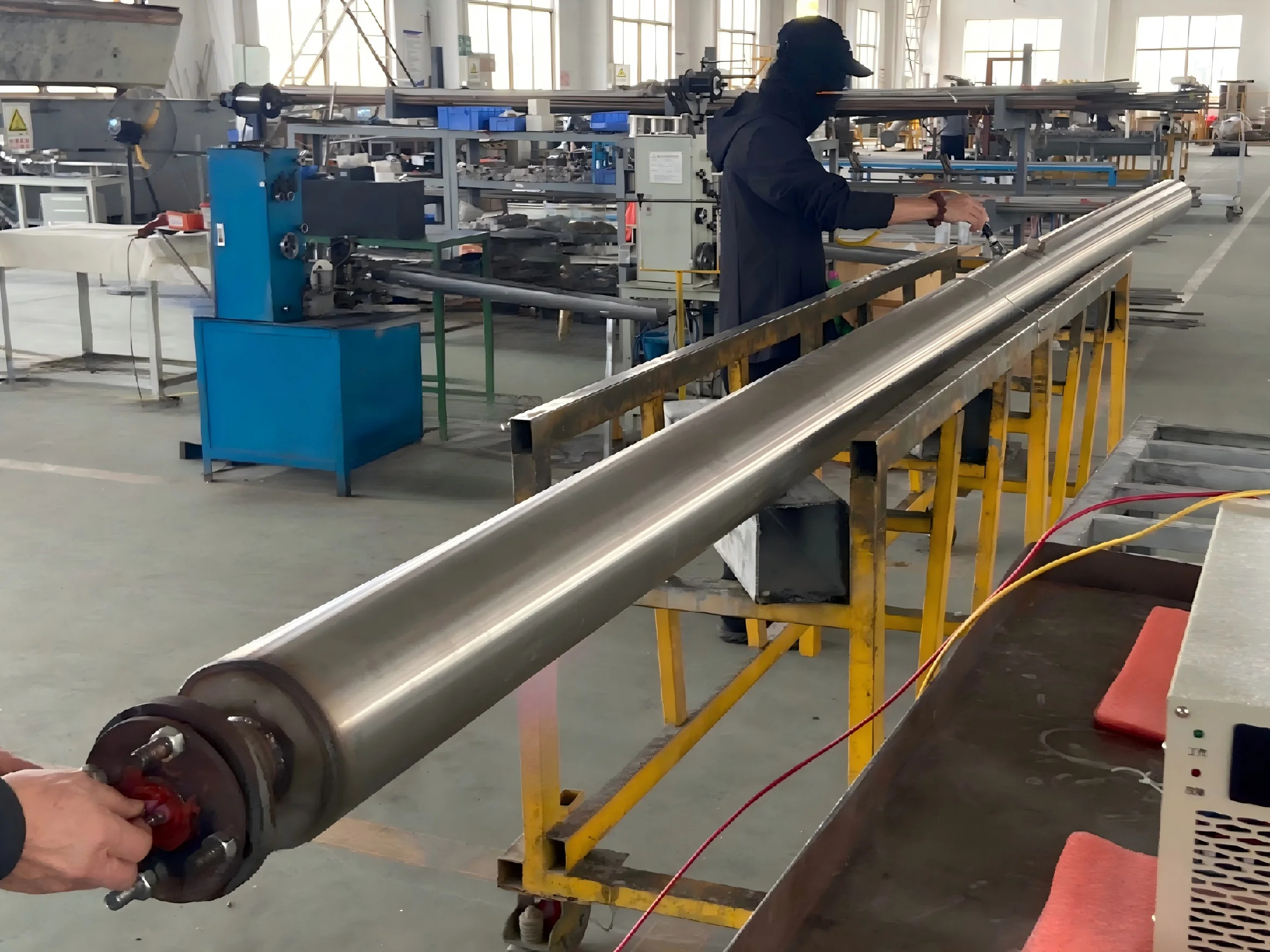

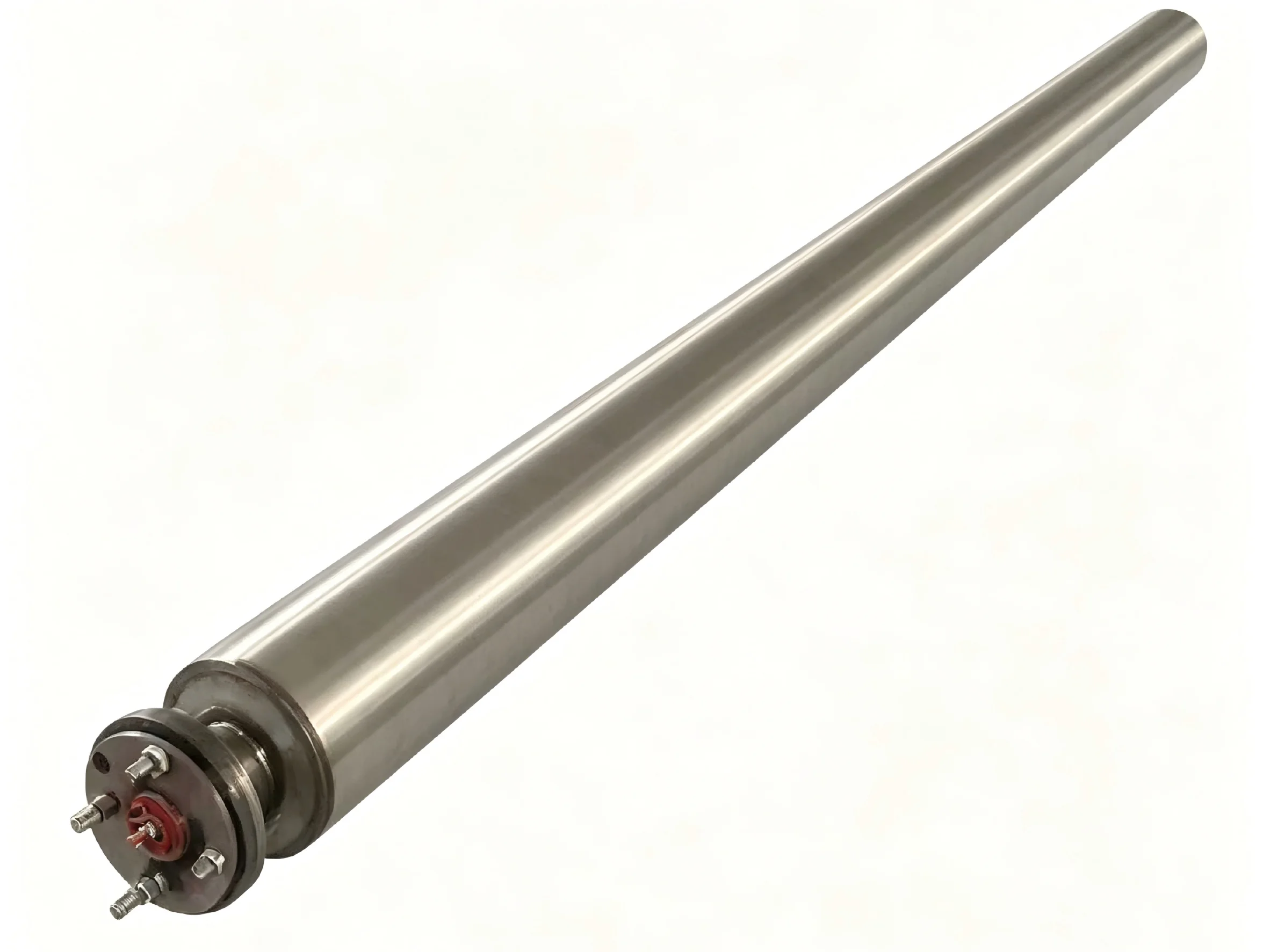

Deep Well Heater
Description
Designed for downhole and deep well heating applications to improve fluid flow characteristics, reduce viscosity, and support production efficiency. Custom-engineered assemblies can be designed according to well conditions, installation method, power demand, and control requirements.
Applications
Oil wells, heavy oil production, enhanced oil recovery, well stimulation processes, flow assurance, and downhole heating applications.

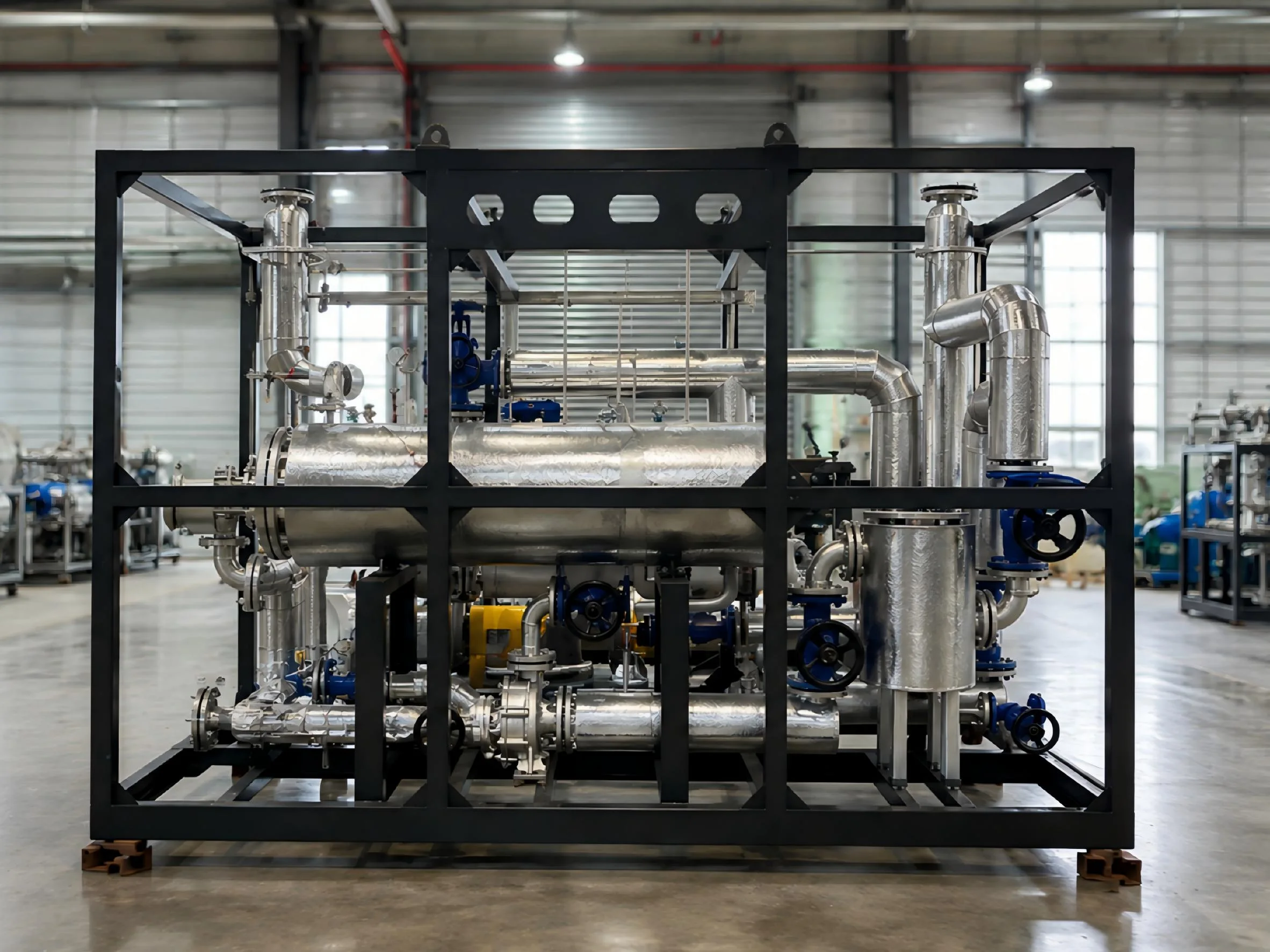

Skid-Mounted Electric Heating System
Description
Designed as a fully integrated heating package combining electric heaters, control systems, pumps, piping, instrumentation, and safety devices on one skid. Custom-built solutions are available for modular installation and turnkey industrial process heating projects.
Applications
Chemical processing, oil and gas facilities, water treatment plants, energy systems, industrial manufacturing, outdoor process heating, and project-based heating packages.

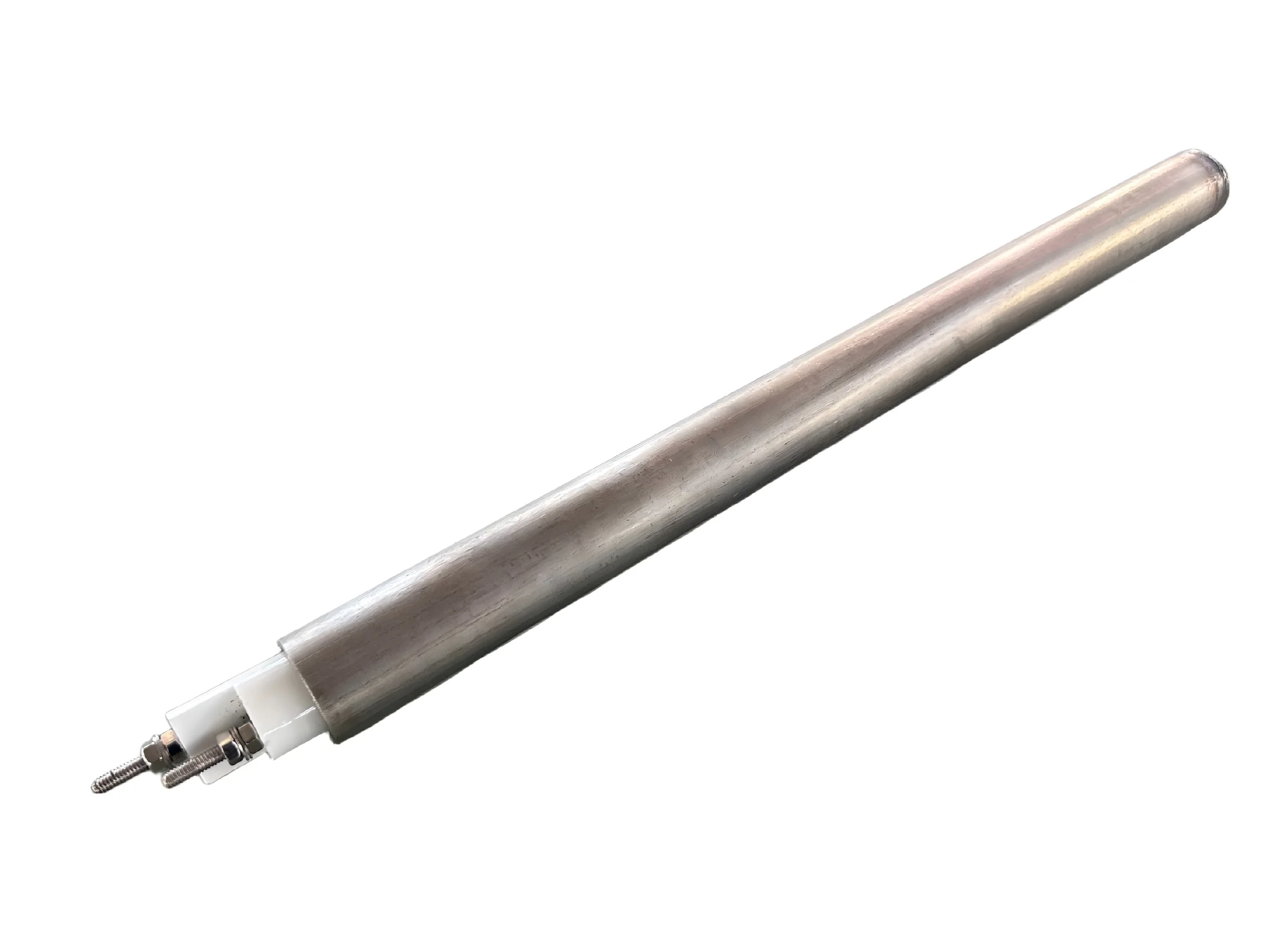

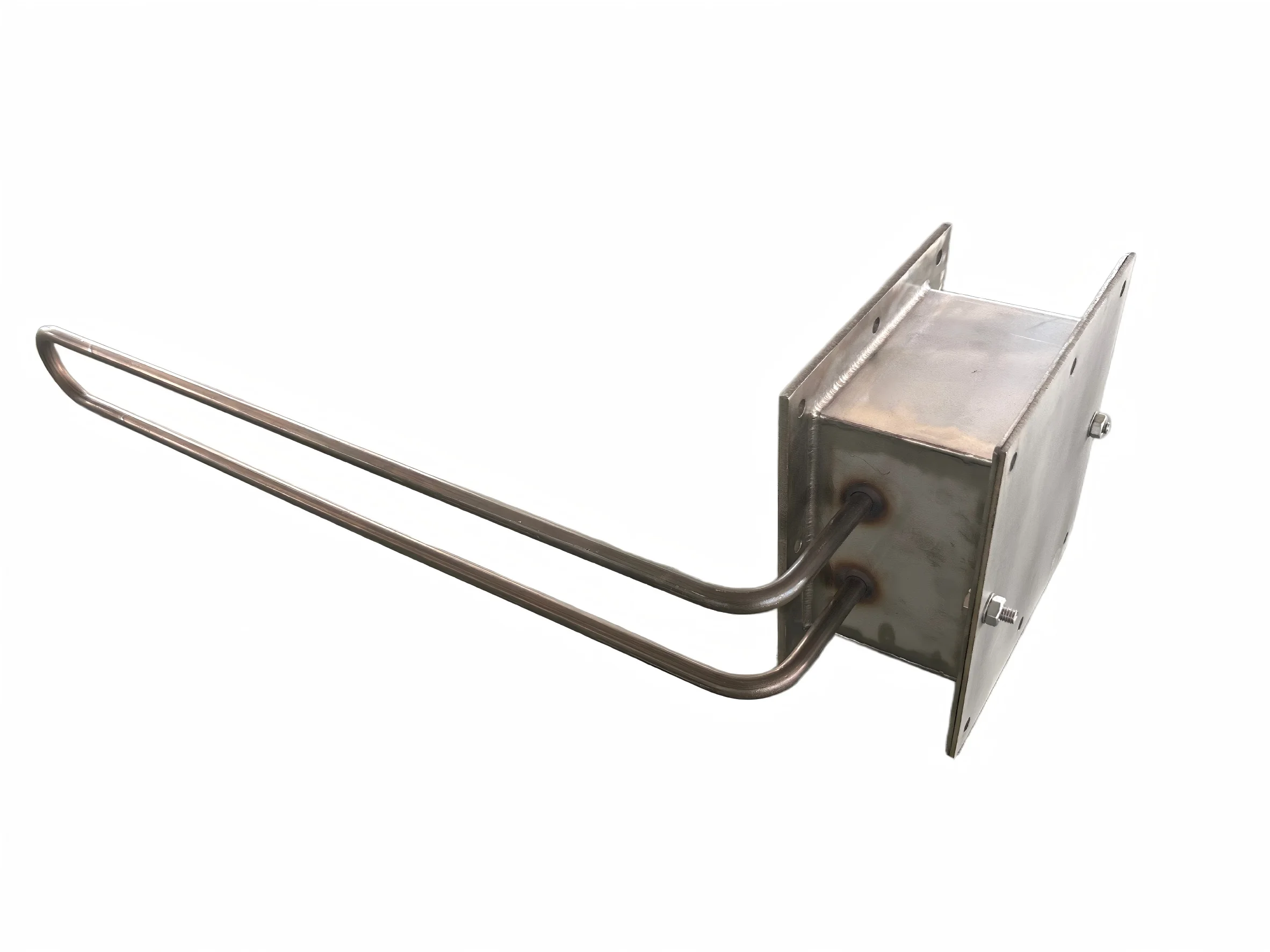

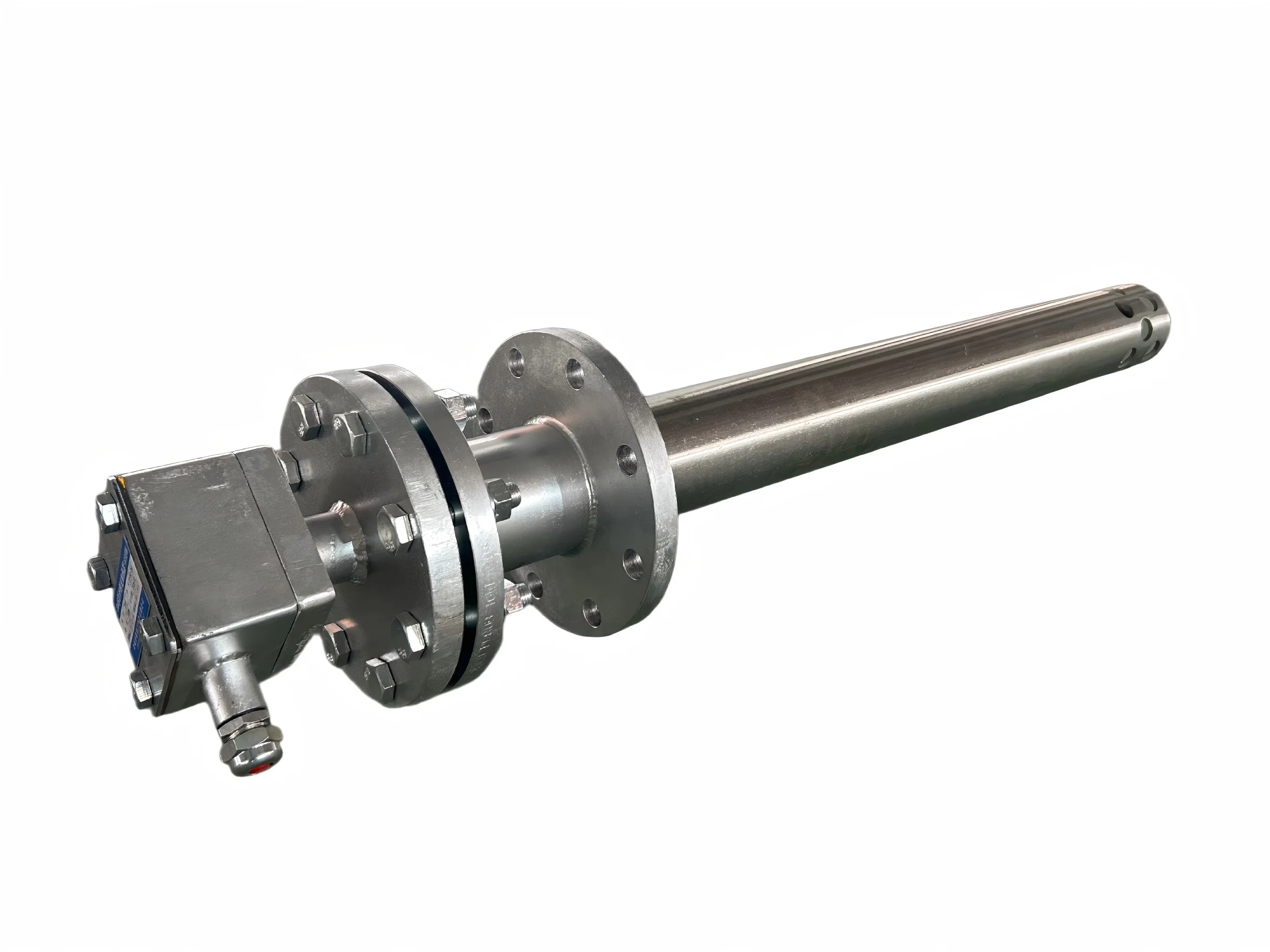

Industrial Electric Igniter
Description
Designed for reliable ignition of industrial burners, furnaces, kilns, boilers, and thermal processing equipment. Available in custom configurations to match ignition temperature, installation size, voltage, control method, and working environment.
Applications
Steel plants, industrial furnaces, combustion systems, thermal oxidizers, kilns, drying equipment, boilers, process heaters, and industrial burner systems.

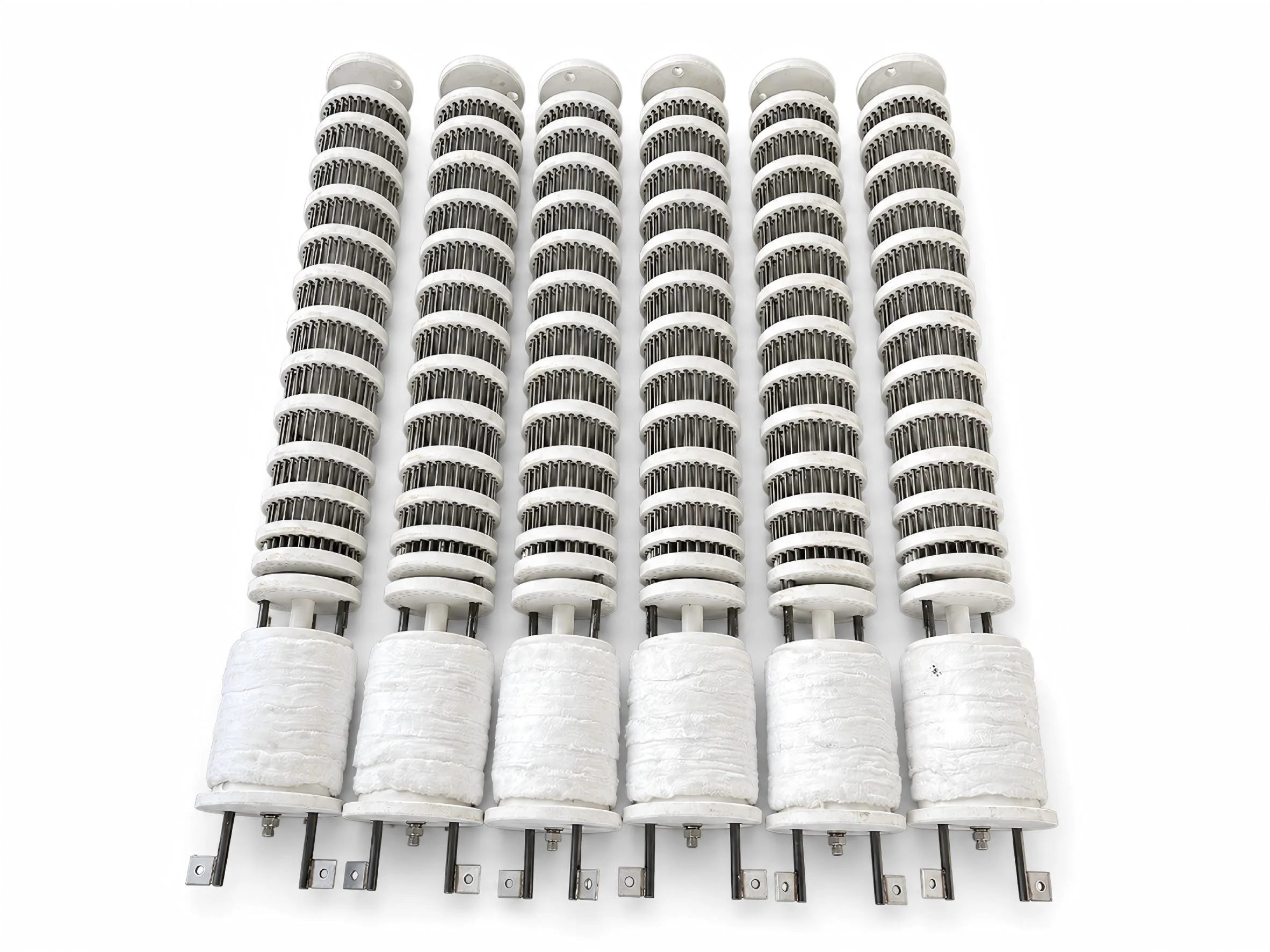

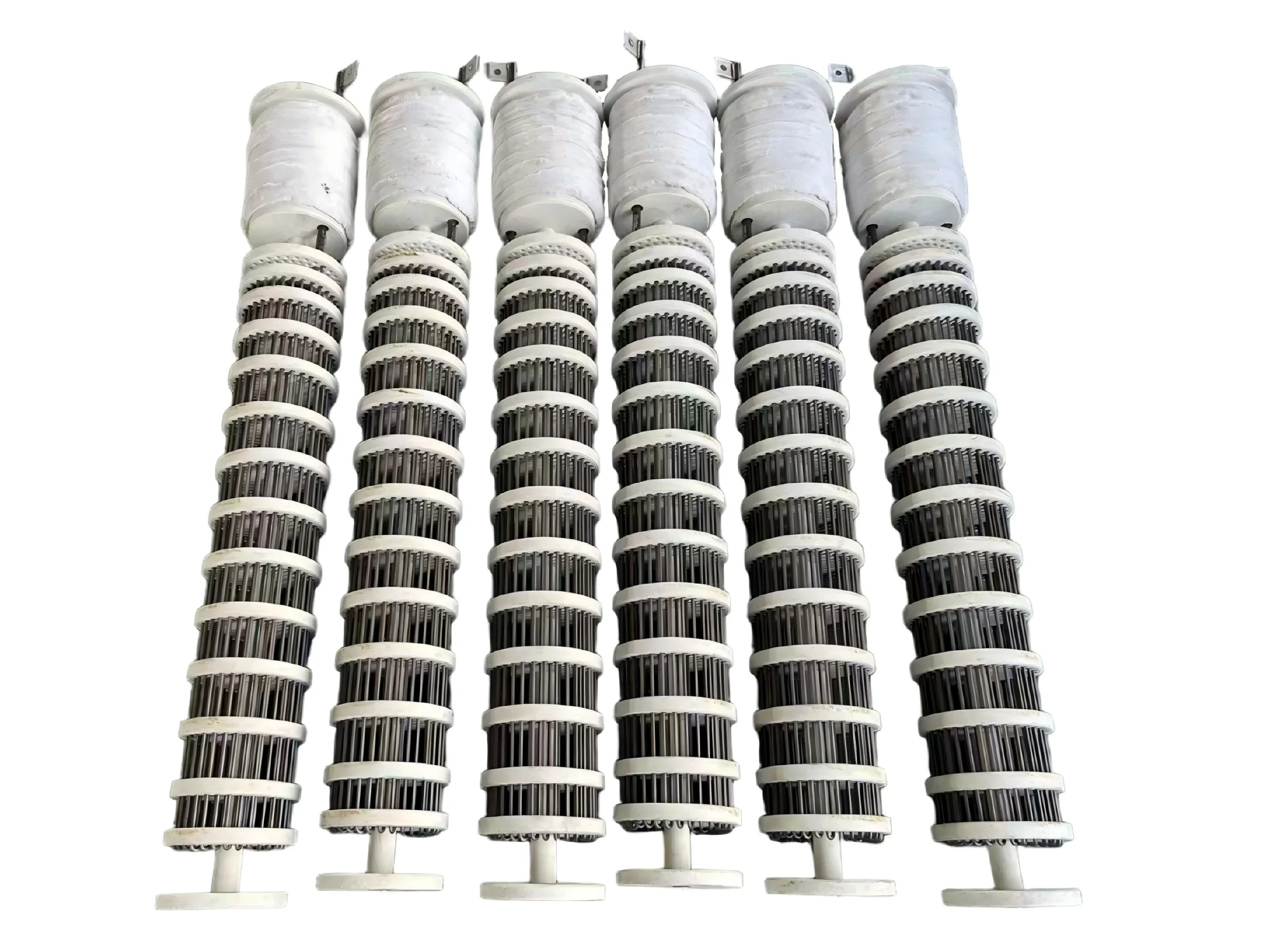

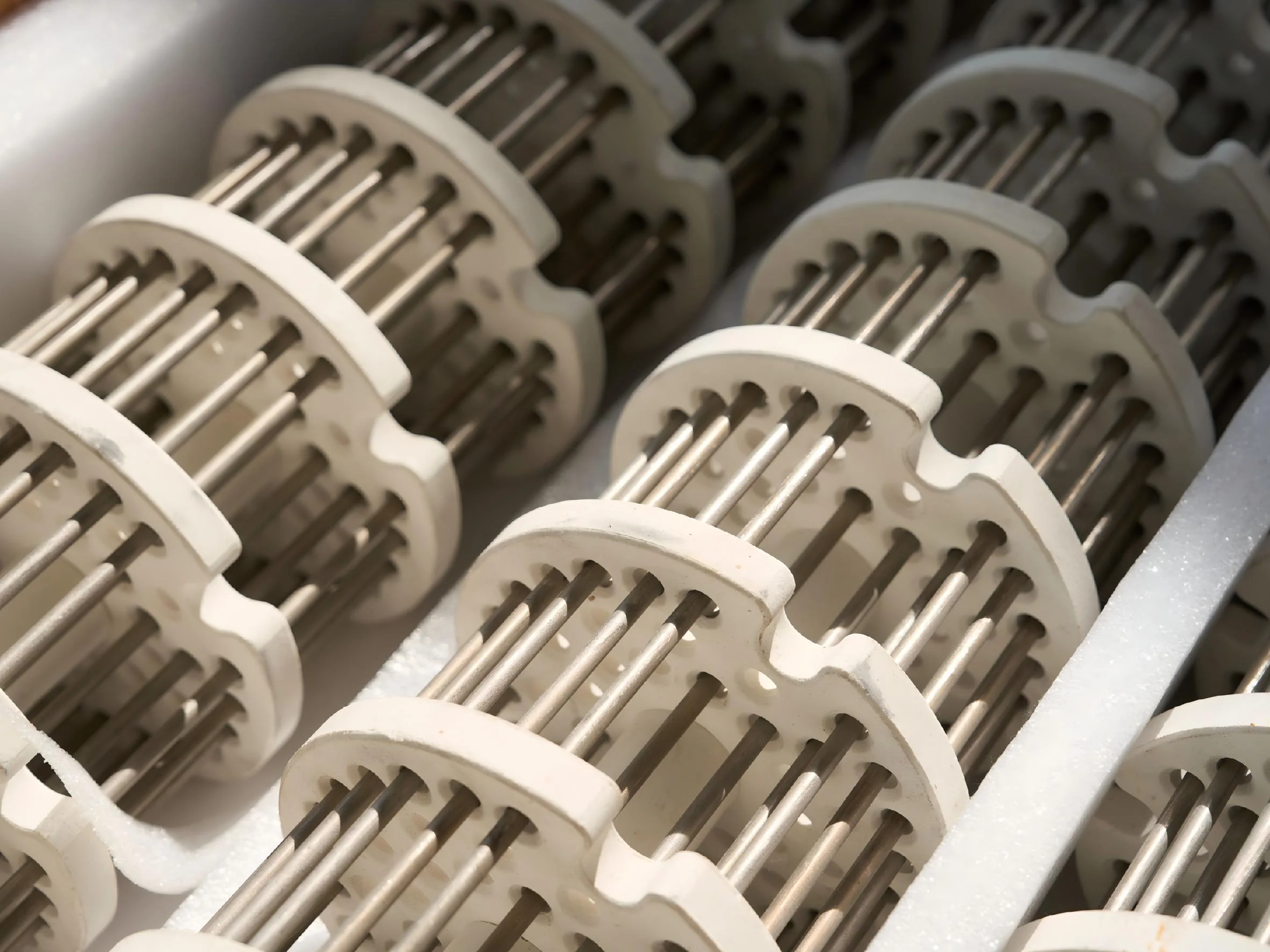

Electric Radiant Tube Heater
Description
Designed for indirect electric heating applications using radiant heat transfer to provide uniform and efficient thermal performance. Radiant tube heater assemblies can be customized for high-temperature industrial furnaces and controlled heating environments.
Applications
Industrial furnaces, heat treatment systems, metal processing, coating lines, drying systems, controlled-atmosphere heating, and thermal processing operations.
Industrial Electric Heat Tracing System
Description
Designed to maintain process temperatures, prevent freezing, and support reliable flow in pipelines, tanks, and industrial equipment. Complete heat tracing solutions can include heating cables, control cabinets, monitoring systems, insulation, and customized circuit designs.
Applications
Pipeline freeze protection, tank temperature maintenance, viscosity control, chemical processing, oil and gas facilities, water treatment systems, and industrial process equipment.

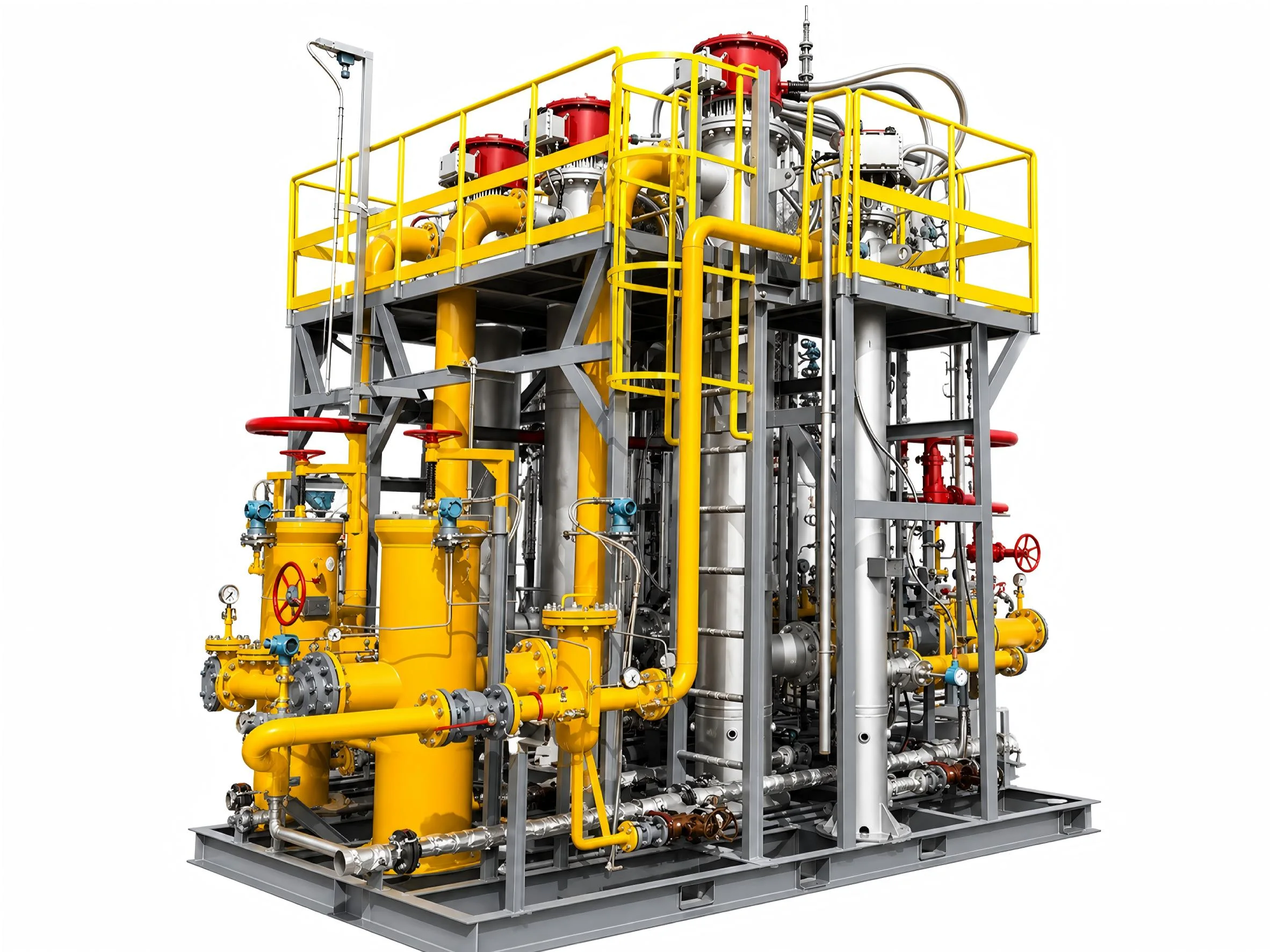

Oilfield Skid-Mounted Crude Oil Heating System
Description
A complete oilfield heating skid integrating the electric heater, pump, piping, valves, instruments and control cabinet for crude-oil heating and transfer.
Applications
Wellhead heating, crude-oil gathering, oil transfer, pipeline preheating and skid-mounted oilfield process systems.
INDUSTRIAL HEATING SYSTEMS · PROJECT INPUT
Scope Your Complete Electric Heating System
For integrated systems, the equipment boundary matters as much as the heat load. These inputs help us define the heater, piping, instruments, controls, and skid scope.
Process Basis
- Heating medium and process description
- Flow rate, tank volume, or production capacity
- Inlet, target, and design temperatures
System Scope
- Inline, circulation, skid, deep-well, or heat tracing
- Required pumps, valves, filters, instruments, and insulation
- Battery limits and customer / supplier responsibilities
Site & Installation
- Working pressure and connection standards
- Indoor, outdoor, offshore, or hazardous-area location
- Space, lifting, transport, and maintenance constraints
Controls & Safety
- Power supply and installed capacity
- PID, PLC, HMI, DCS, and remote monitoring
- Interlocks, redundancy, alarms, and shutdown logic
