ELECTRIC HEATING ELEMENTS

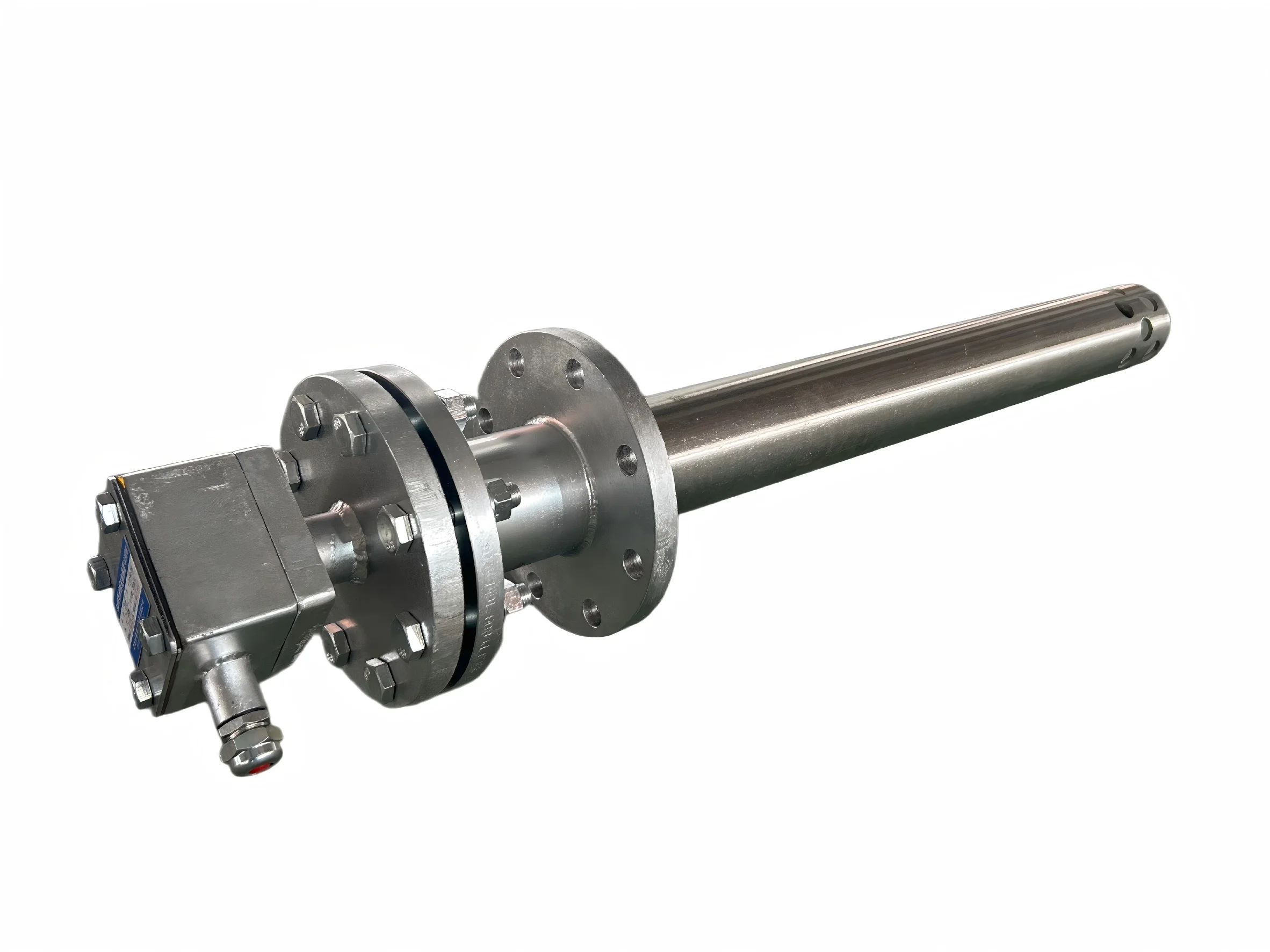

Industrial Electric Igniter
Custom Electric Igniters for Industrial Burners, Furnaces and Thermal Processing Equipment
Xiangyuan Machinery supplies custom Industrial Electric Igniters for industrial burners, furnaces, kilns, boilers, thermal oxidizers and other combustion or thermal-processing equipment.
The igniter provides localized electric heating at the ignition zone and can be engineered according to the required ignition temperature, insertion length, voltage, power, mounting method, terminal arrangement, operating atmosphere and control sequence.

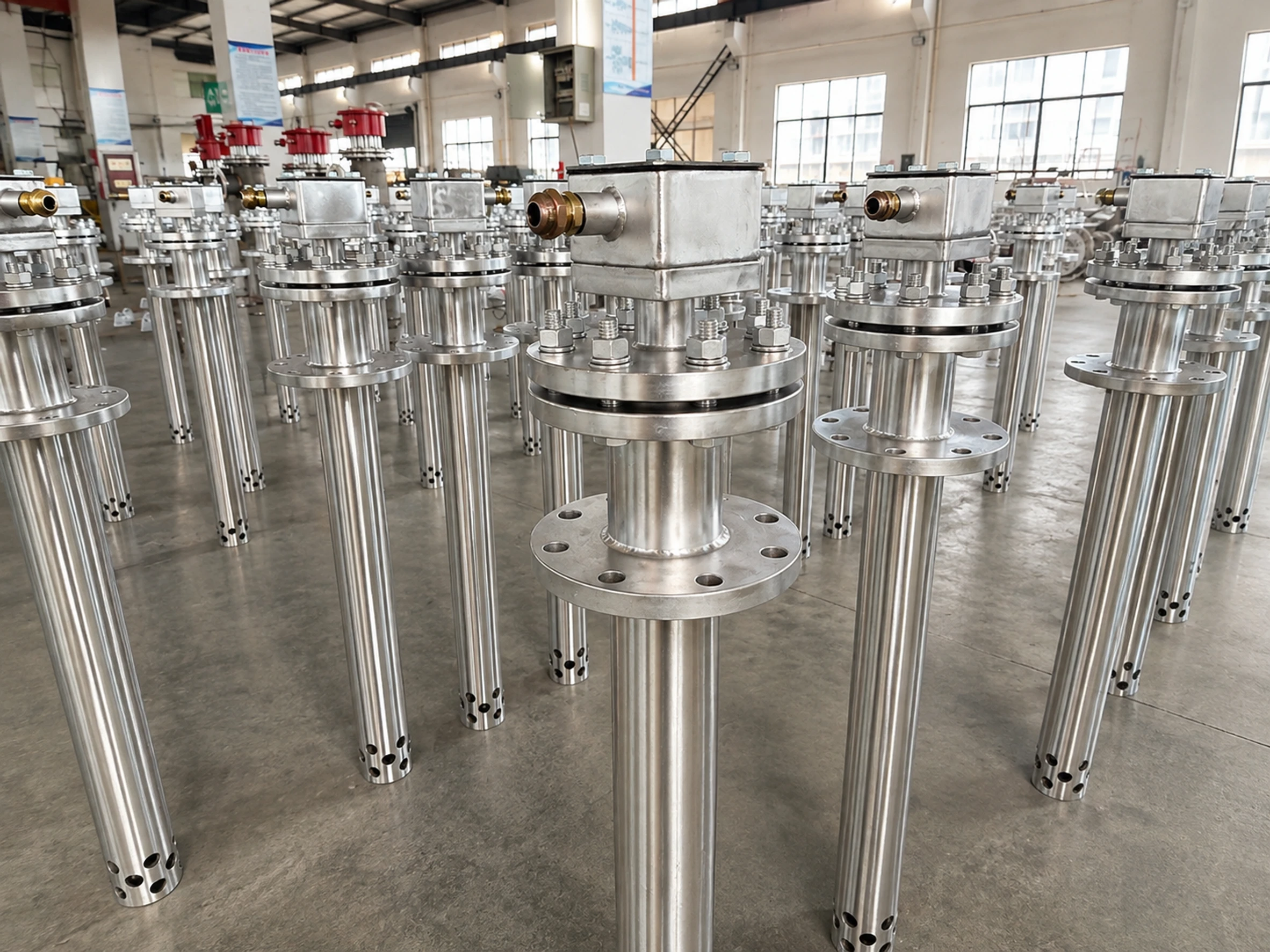

Product Overview
An Industrial Electric Igniter is an electric heating device used to support reliable ignition in industrial burners, furnace systems and other thermal-processing equipment. A high-temperature electric heating element generates heat at the required ignition position and transfers it to the surrounding ignition zone.
The final construction depends on the burner or furnace layout, fuel or process medium, required ignition temperature, ignition duty, insertion depth, available electrical supply and working environment.
Custom configurations can be manufactured for new equipment, replacement projects and drawing-based OEM applications after the operating conditions are confirmed.
Key Features
Each Industrial Electric Igniter is engineered according to the ignition duty, furnace or burner structure,
operating atmosphere, installation dimensions, electrical supply and control requirements.
Reliable Electric Heating Ignition
Provides localized electric heat for industrial ignition duties after the ignition conditions are confirmed.
High-Temperature Heating Element
The heating section is selected according to the required ignition temperature and operating environment.
Custom Heated Length
The active heating section can be matched to the required ignition position and burner or furnace geometry.
Custom Installation Length
Overall length and insertion depth can be engineered according to the available installation space.
Voltage and Power Customization
Electrical rating is selected according to the available power supply and required ignition duty.
Protective Structure
The heating element can be supplied with a protective structure selected for the confirmed furnace conditions.
Terminal and Lead Options
Terminal direction, connection method and lead arrangement can be customized for installation and maintenance access.
Control Sequence Integration
The igniter can be coordinated with burner, furnace, PLC or other equipment control logic where required.
Drawing-Based Production
Dimensions, mounting, electrical rating and connection details can be manufactured according to an approved drawing.
Typical Technical Parameters
The following items are typical design parameters for an Industrial Electric Igniter. Final values must be confirmed from the burner, furnace, ignition duty and electrical requirements.
| Parameter | Customizable Range / Options |
|---|---|
| Product Name | Industrial Electric Igniter |
| Primary Function | Electric heating ignition support for industrial burner, furnace or thermal-processing equipment |
| Typical Equipment | Industrial burners, furnaces, kilns, boilers, thermal oxidizers, process heaters and related equipment |
| Heating Principle | Electric heating configuration selected according to the required ignition duty |
| Ignition Temperature | Customized according to the ignition process and working environment |
| Voltage | Customized according to the site power supply |
| Power | Customized according to ignition temperature, heated length and duty cycle |
| Phase / Frequency | Confirmed according to project electrical conditions |
| Heating Section | Customized according to the required ignition position and heat output |
| Overall Length | Customized according to installation space and insertion depth |
| Insertion Depth | Customized according to burner or furnace structure |
| Protective Structure | Selected according to temperature, atmosphere and mechanical requirements |
| Mounting Method | Flange, threaded fitting, bracket or drawing-specific structure |
| Terminal / Lead | Customized terminal direction, connection method and lead arrangement |
| Control Method | On/off, timed ignition sequence, PLC/DCS integration or project-specific control |
| Duty Cycle | Intermittent or other operating duty according to the ignition sequence |
| Protection | Over-current, short-circuit, grounding, terminal protection and required equipment interlocks |
| Working Environment | Confirmed according to furnace temperature, atmosphere, fuel or process medium and site conditions |
| Customization | Power, voltage, size, mounting, terminal, control and drawing-based production |
Structure, Materials, Control and Safety

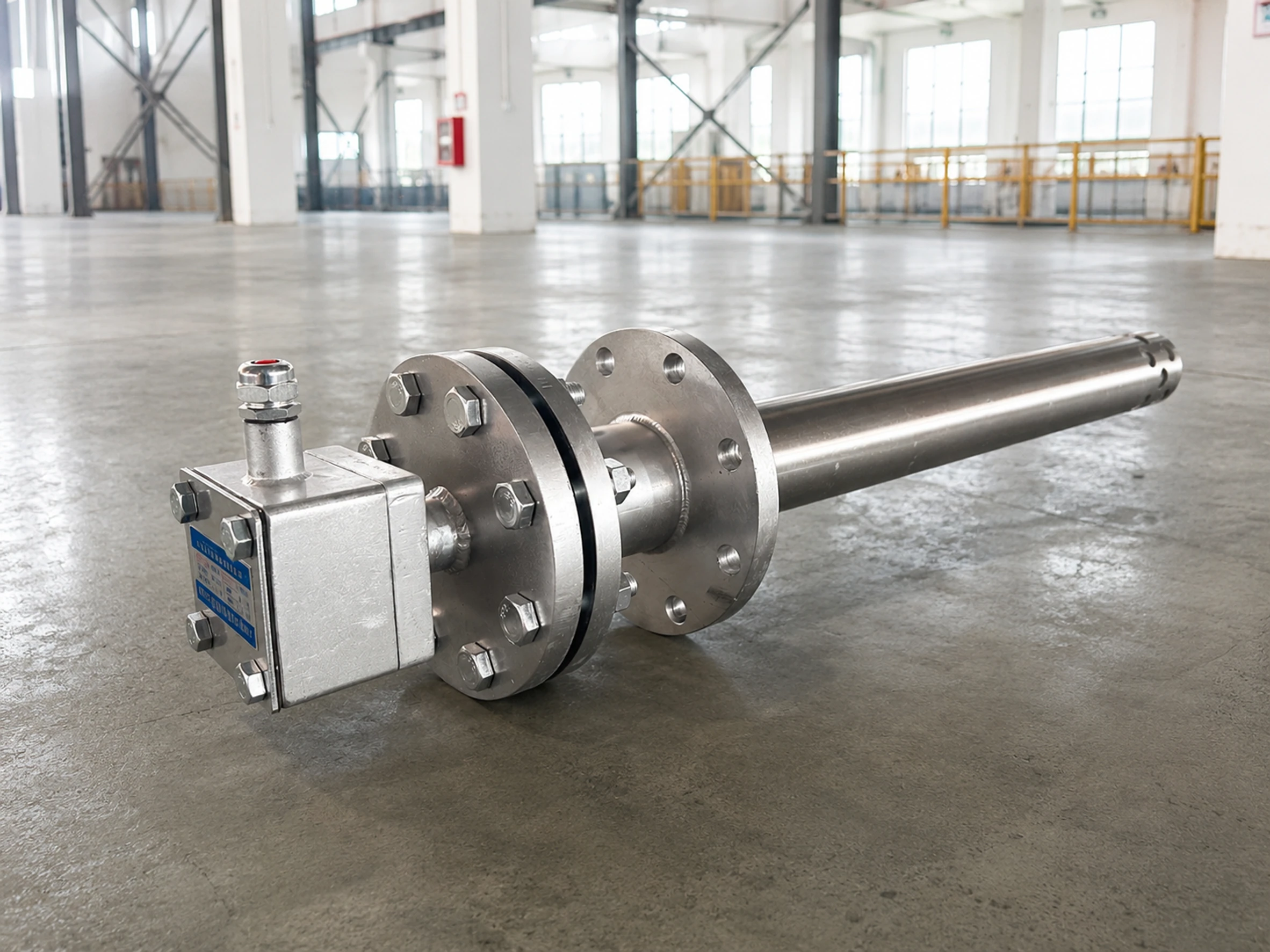

Structure of the Industrial Electric Igniter
A typical Industrial Electric Igniter can include the following main sections:
- High-temperature electric heating element
- Electrical insulation and support structure
- Protective sheath or outer structure
- Mounting flange, threaded fitting or custom support
- Terminal and electrical connection section
- Optional connection protection or terminal enclosure according to the project
The exact internal and external construction is confirmed according to ignition temperature, installation dimensions, furnace atmosphere, mechanical load and electrical requirements.

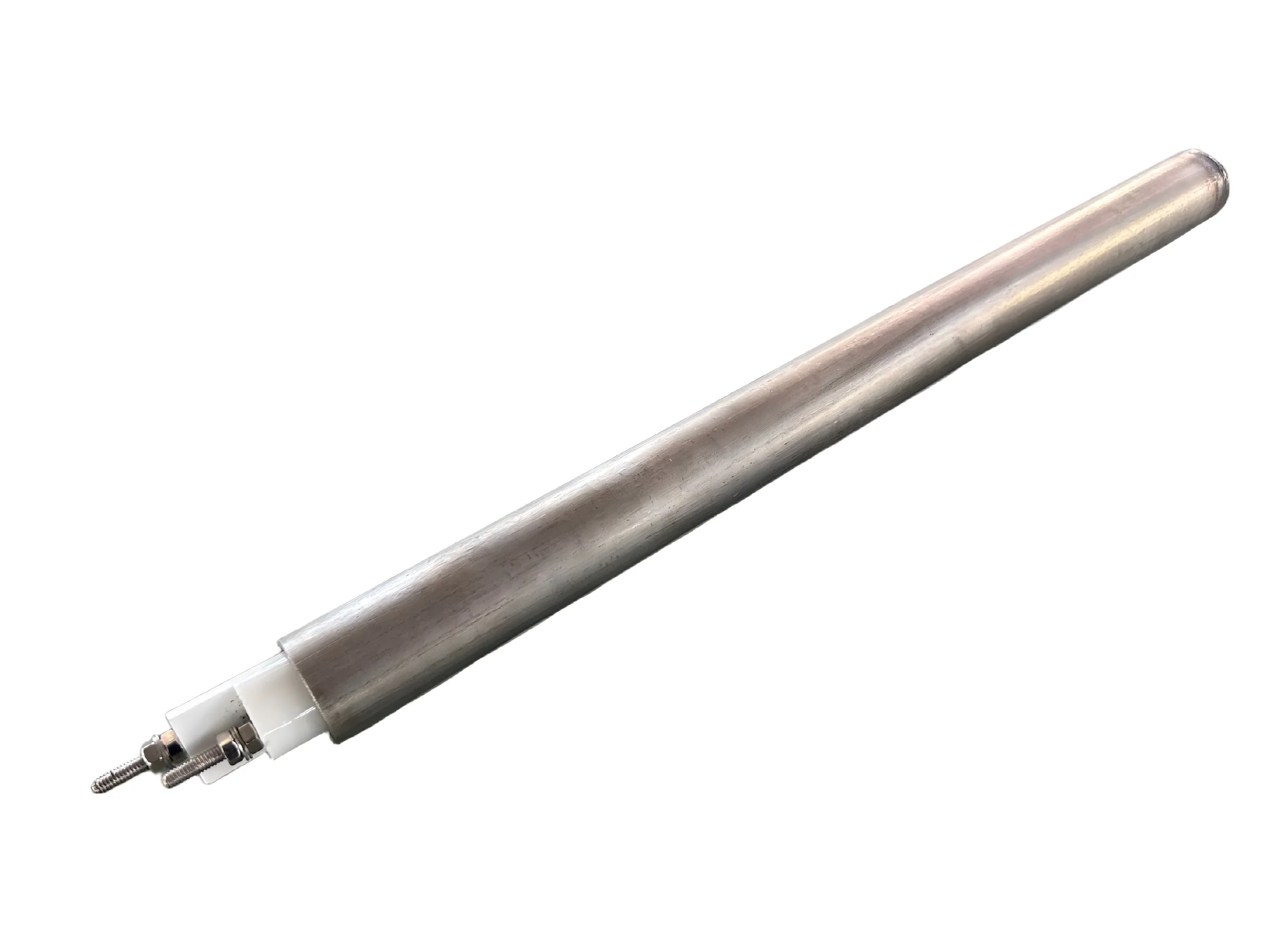

Materials and Customization
Material selection depends on the ignition temperature, furnace atmosphere, oxidation or corrosion conditions, insertion depth, mechanical strength and expected operating duty.
The heating element, protective structure, insulation, flange and terminal components should be selected as a complete assembly for the confirmed working conditions. Where drawings or an existing igniter sample are available, dimensions and materials can be reviewed for replacement or customized production.

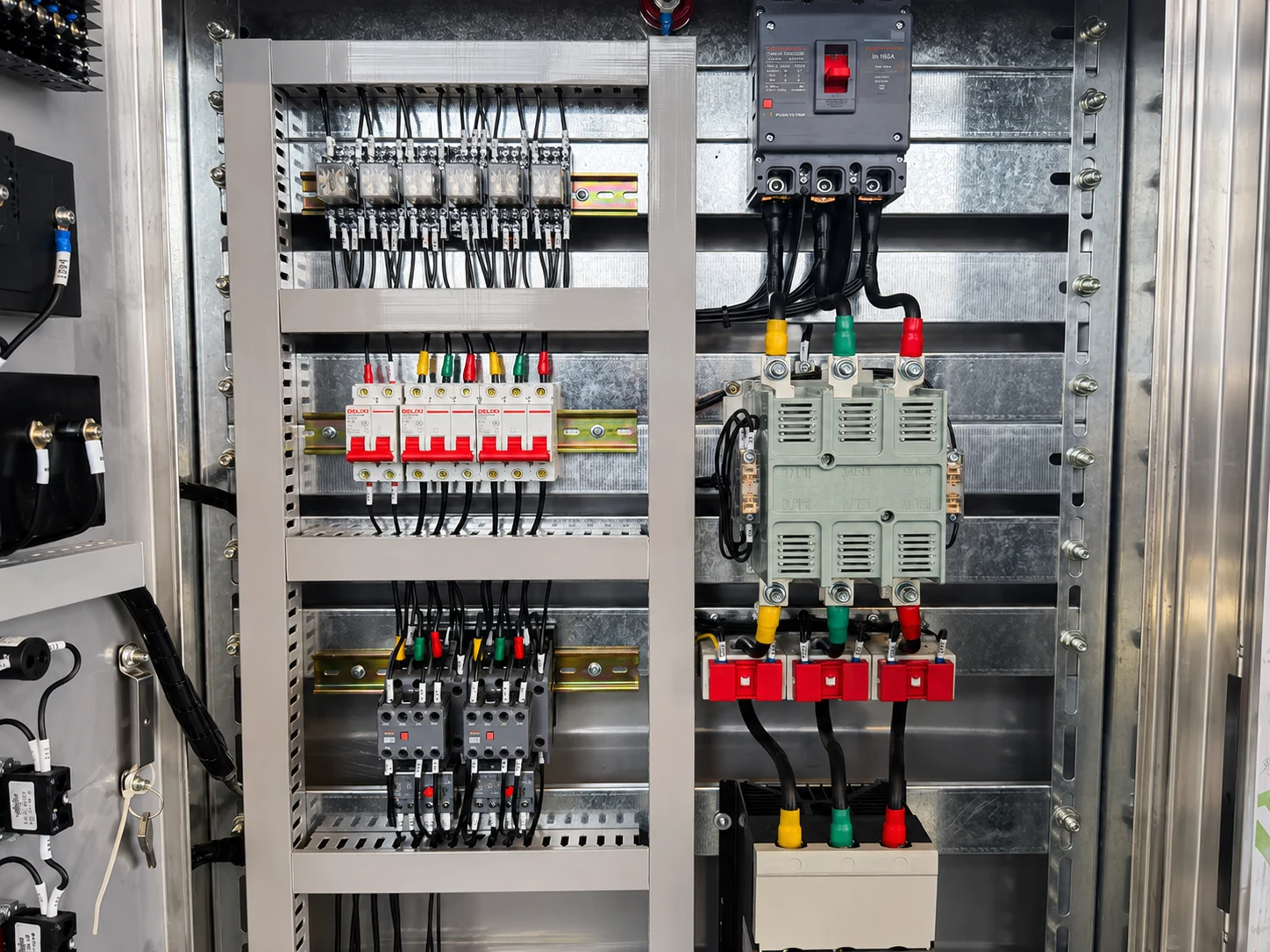

Control System
The Industrial Electric Igniter is normally integrated into the burner, furnace or equipment ignition sequence. The required control method depends on electrical load, ignition duty and the existing control architecture.
Control options can include:
– Contactor or solid-state switching
– Timed ignition sequence
– PLC or DCS control signal
– Current monitoring
– Ignition permissive and shutdown logic
– Equipment-level interlocks where required
Where the igniter is part of a burner system, control logic should be coordinated with the complete burner or furnace safety sequence.
Safety Protection
Safety protection should be designed together with the complete burner or furnace system and the actual ignition sequence.
Typical protection can include:
– Over-current and short-circuit protection
– Protective grounding
– Terminal and cable protection
– Current or operating-status monitoring
– Independent over-temperature protection where required
– Ignition permissive and shutdown interlocks

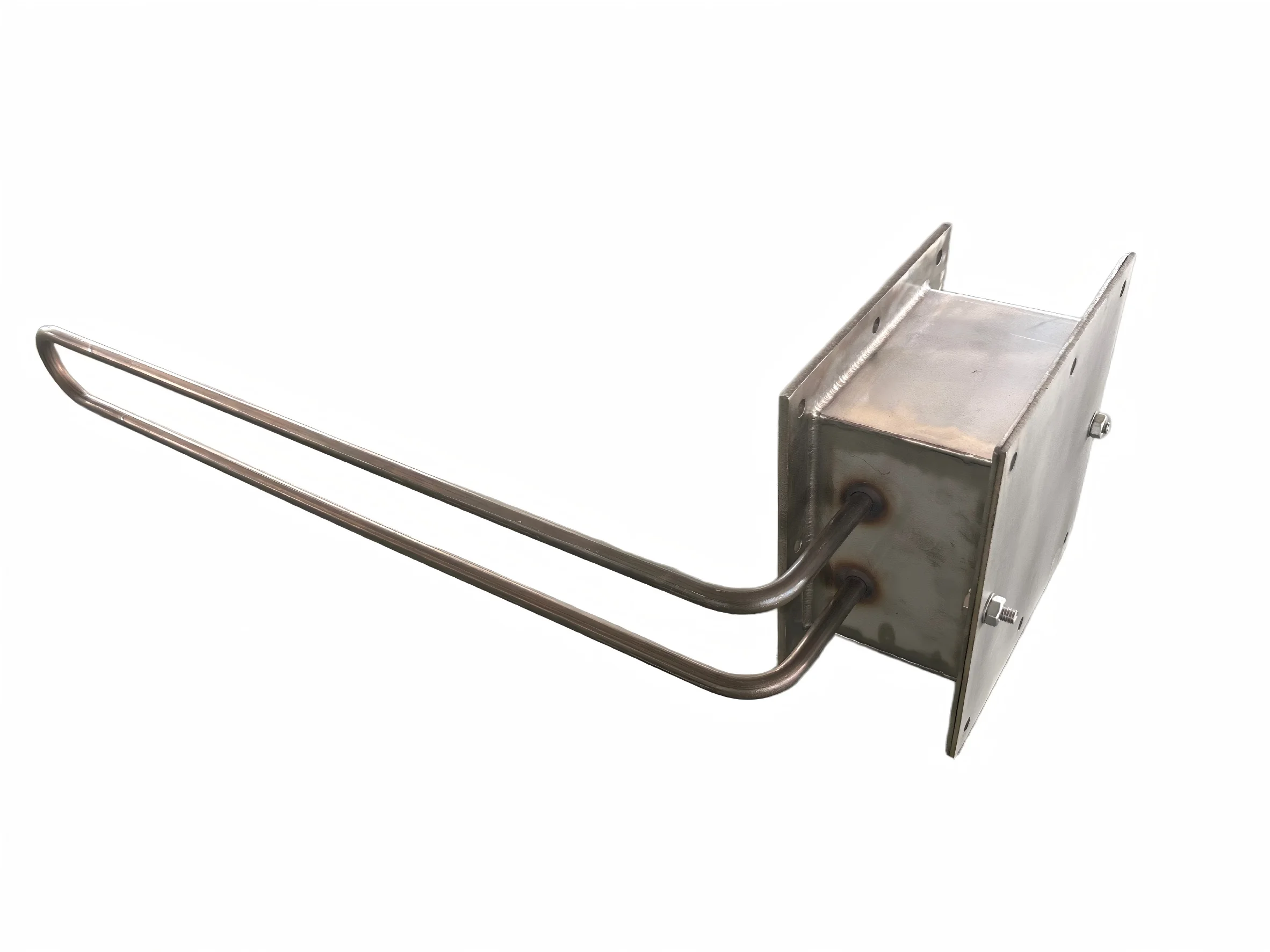

– Mechanical protection for the inserted heating section
The igniter should only be energized under the operating conditions defined by the equipment design and approved control sequence.
Typical Applications
Industrial Electric Igniters are used for industrial ignition duties after burner structure, ignition temperature,
fuel or process medium, electrical supply, insertion dimensions and control requirements are confirmed.
Industrial Burners
Electric heating ignition support for compatible industrial burner systems.
Industrial Furnaces
Ignition support for furnace heating systems requiring a customized electric igniter.
Steel and Metallurgy Furnaces
Ignition applications in steel, metallurgy and high-temperature production equipment.
Heat-Treatment Furnaces
Electric ignition support for compatible heat-treatment furnace burner systems.
Kilns
Custom igniters for industrial kiln burner and thermal-processing applications.
Boilers and Burner Systems
Electric ignition support for compatible industrial boiler burner arrangements.
Thermal Oxidizers
Ignition support for compatible thermal oxidizer combustion systems.
Process Heaters
Custom electric igniters for process-heating combustion equipment.
Drying Equipment
Ignition support for burner-fired industrial drying and thermal equipment.
Combustion Systems
Electric heating ignition components for compatible industrial combustion systems.
Industrial Ovens
Custom ignition components for burner-fired industrial ovens and chambers.
Custom Thermal Equipment
Drawing-based electric ignition solutions for specialized industrial thermal-processing equipment.
How to Select the Right Industrial Electric Igniter
Please provide the following burner, furnace, ignition and electrical data so that the igniter structure,
heating section, power, installation dimensions and control requirements can be selected correctly.
1. Application Equipment
State the burner, furnace, kiln, boiler, oxidizer or other equipment type.
2. Burner / Furnace Type
Provide the burner or furnace structure and the ignition position.
3. Fuel or Process Medium
State the fuel, gas or process medium relevant to the ignition duty.
4. Required Ignition Temperature
Provide the target ignition temperature or required heating condition.
5. Ignition Duty Cycle
State ignition duration, start frequency and intermittent or other operating duty.
6. Furnace / Ambient Temperature
Provide the temperature around the inserted section and terminal area.
7. Working Atmosphere
Describe the furnace atmosphere and any corrosive, oxidizing or combustible components.
8. Voltage, Phase and Frequency
Provide the available electrical supply at the installation site.
9. Required Power
Provide the required igniter power or existing product electrical rating if replacing a unit.
10. Heating Section Dimensions
Provide diameter, heated length and required active ignition position.
11. Overall Length / Insertion Depth
State total length, insertion depth and available installation space.
12. Mounting Method
Specify flange, threaded fitting, bracket or drawing-specific mounting.
13. Terminal / Lead Arrangement
Provide terminal direction, cable length, connection method and maintenance clearance.
14. Control and Interlocks
State the ignition sequence, PLC/DCS signal and required permissive or shutdown logic.
15. Drawing, Quantity and Testing
Provide existing drawings or samples, quantity, dimensional tolerances and required inspection or testing.
Why Choose Xiangyuan Machinery
Xiangyuan Machinery designs custom Industrial Electric Igniters according to burner or furnace structure, ignition duty, working atmosphere, installation dimensions, electrical supply and control requirements.
Flexible Mechanical Arrangement
Insertion length, mounting, protective structure, terminal direction and maintenance access can be customized.
Control & System Integration
Ignition sequence, PLC/DCS signal and required interlocks can be coordinated with the burner or furnace control system.
Testing & Project Support
Dimensions, electrical performance and connection requirements can be checked according to the approved product specification before shipment.
Need a custom Industrial Electric Igniter?
Send us your burner or furnace type, fuel or process medium, ignition temperature, voltage, power, insertion depth, mounting method and control requirements. Xiangyuan Machinery can prepare a customized technical proposal and quotation.
