Oilfield Skid-Mounted Crude Oil Heating System
Custom skid-mounted electric crude oil heating systems for oilfield wellhead, gathering and transfer applications.
The Oilfield Skid-Mounted Crude Oil Heating System integrates an electric crude oil heater with pumps, valves, instruments, piping, control cabinet and skid frame to support crude-oil heating and viscosity reduction at oilfield sites.
The system can be engineered from crude-oil properties, flow, inlet and target temperatures, pressure, outdoor climate, hazardous-area requirements, power supply, automation interface and site installation conditions.
Product Overview

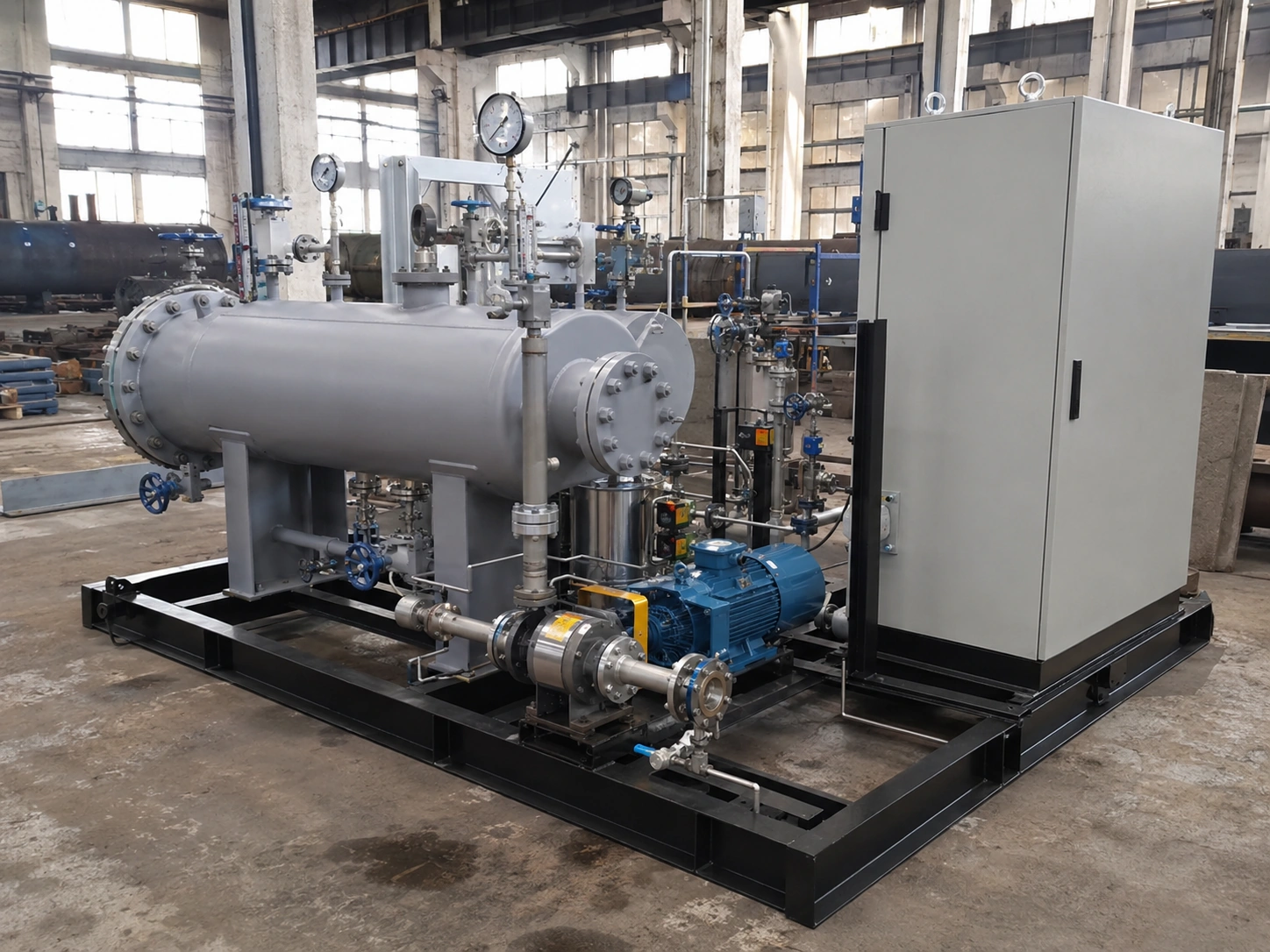

The Oilfield Skid-Mounted Crude Oil Heating System is a modular electric heating package designed for crude oil, produced liquids, oil-water mixtures and other compatible oilfield process fluids. It can integrate the electric heater, circulation or transfer pump, strainer, valves, instruments, control cabinet, piping, insulation and skid frame as one factory-assembled unit.
The system is selected according to crude-oil composition, viscosity curve, wax or sediment, water content, flow rate, inlet temperature, required outlet temperature, operating pressure, hazardous-area classification, outdoor environment and maintenance requirements.
Unlike a standalone crude-oil heater, the skid-mounted system integrates the heater with pumps, valves, instruments, piping and control functions as one coordinated package. It is specifically engineered for crude-oil and compatible oilfield process-fluid heating where factory pre-assembly, field installation and system interlocks are required.
Key Features
The Oilfield Skid-Mounted Crude Oil Heating System can be engineered around the actual medium, duty, installation and control requirements of the project.
Complete Skid-Mounted Package
Heater, pump, strainer, valves, instruments, control cabinet, piping, insulation and skid frame can be integrated as one modular unit.
Crude-Oil Viscosity Design
Heating duty, flow path, pump selection and element watt density are reviewed according to viscosity, wax, sediment and water content.
Outdoor Oilfield Construction
Insulation, coating, enclosure and tracing options can be selected for site climate and environment.
Factory Pre-Assembly
Piping, instruments and electrical interfaces can be assembled and checked before shipment.
Viscosity-Reduction Control
PID, SCR or staged power can maintain oil temperature for transfer and processing.
Explosion-Proof Configuration Options
Explosion-proof terminal boxes and matched electrical configurations are available. Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb.
Typical Technical Parameters
The following parameters are for reference only. Final design is confirmed according to the operating medium, temperature, dimensions and project requirements.
| Parameter | Customizable Range or Options |
|---|---|
| Product Name | Oilfield Skid-Mounted Crude Oil Heating System |
| Heating Medium | Crude oil, produced liquids, oil-water mixtures or other compatible oilfield process fluids |
| System Scope | Electric heater, pump, strainer, valves, instruments, control cabinet, piping, insulation, skid frame and safety interlocks according to the confirmed supply scope |
| Heating Power | Custom engineered according to flow and temperature rise |
| Flow Rate | According to wellhead, gathering or transfer process |
| Working Pressure | Designed from pipeline and equipment pressure requirements |
| Main Components | Electric heater, pump, valves, filter/strainer, instruments, piping and skid |
| Materials | Carbon steel, SS304, SS316L or selected materials by service |
| Control Method | PID temperature control, SCR/thyristor power regulation, staged control, PLC/HMI, local/remote operation or DCS interface |
| Protection Options | Independent over-temperature cutoff, pump-running and minimum-flow interlocks, pressure monitoring, element-sheath temperature monitoring, ground-fault protection, protective grounding and emergency stop |
| Outdoor Protection | Rainproof, dustproof, anti-corrosion coating, thermal insulation, cold-weather protection and project-specific enclosure protection |
| Documentation | GA, P&ID, wiring, component data, inspection and test documents as specified |
| Oil Property Data | Viscosity curve, density, water content, wax, sediment, salt, corrosive components, pour point and flash point where available |
| Heating Element Sheath Material | SS304, SS316L, Incoloy 800/840 or selected alloy according to oil properties, temperature and corrosion conditions |
| Explosion-Proof Option | Explosion-proof terminal box and matched electrical configuration; Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb. |
Structure, Materials, Control and Safety
Structure of the Skid-Mounted System

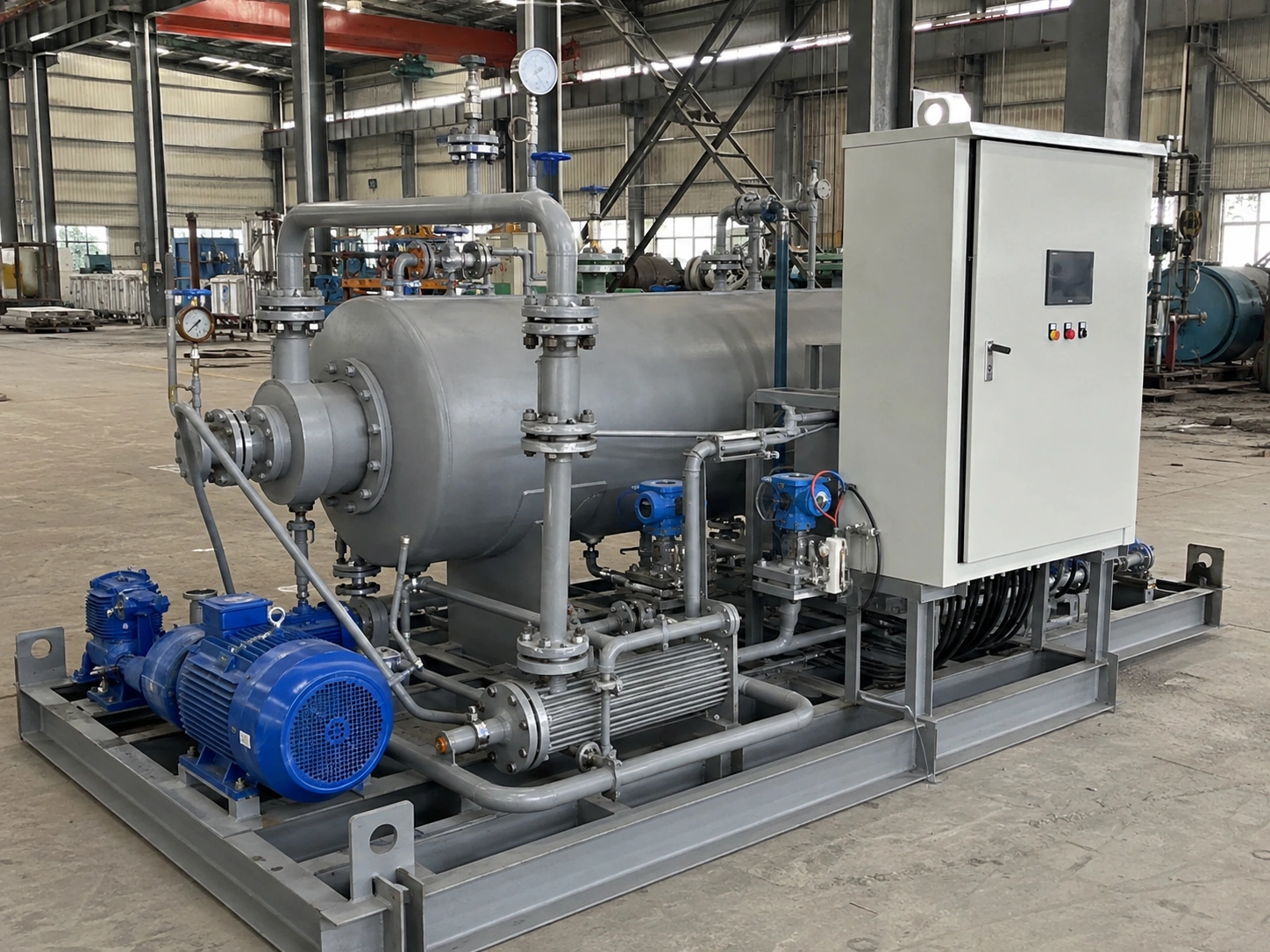

The system is arranged on a structural skid with defined inlet, outlet, drain, vent, electrical and control interfaces. The electric heater, pump and piping are positioned for operation, inspection and element removal.
Components can include isolation and control valves, filter or strainer, pressure and temperature instruments, flow switch or transmitter, expansion or bypass line, insulation, cable tray and local control cabinet.
The skid layout is coordinated with lifting, transport, foundation, field piping and maintenance access. Component brands and supply boundaries can be adjusted according to the project specification.
Materials and Customization

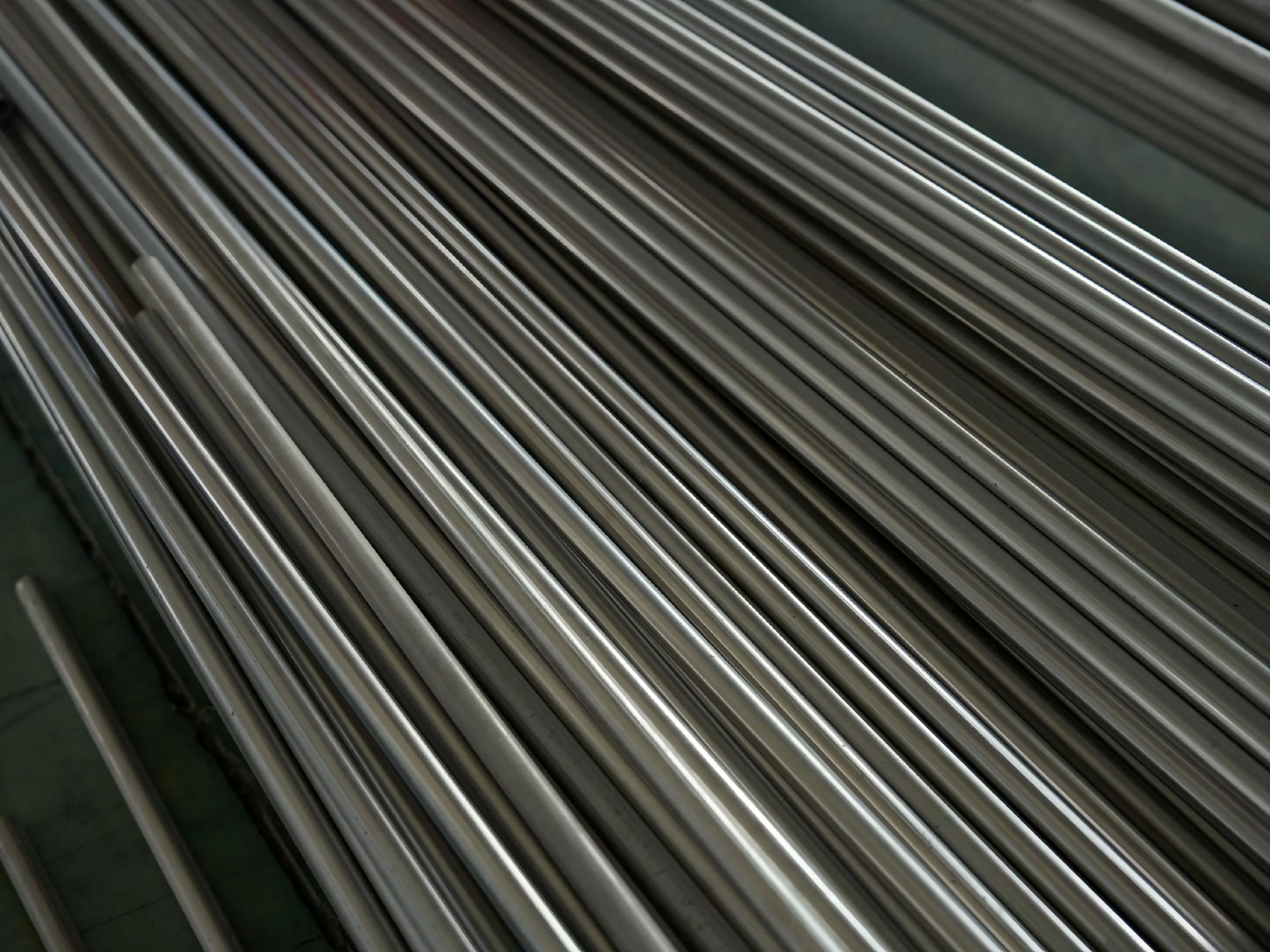

Materials are selected from crude-oil composition, water and solids content, sulfur, viscosity, temperature, pressure and outdoor environment. Carbon steel and stainless steel options can be used where suitable.
Heating element sheath and watt density are selected to reduce local overheating, oil degradation and deposition. Piping class, flange standard, valves, gaskets and instruments are matched to the process specification.
The skid frame, coating, insulation and external cladding can be customized for outdoor oilfield use, transport and site corrosion conditions.
Control System

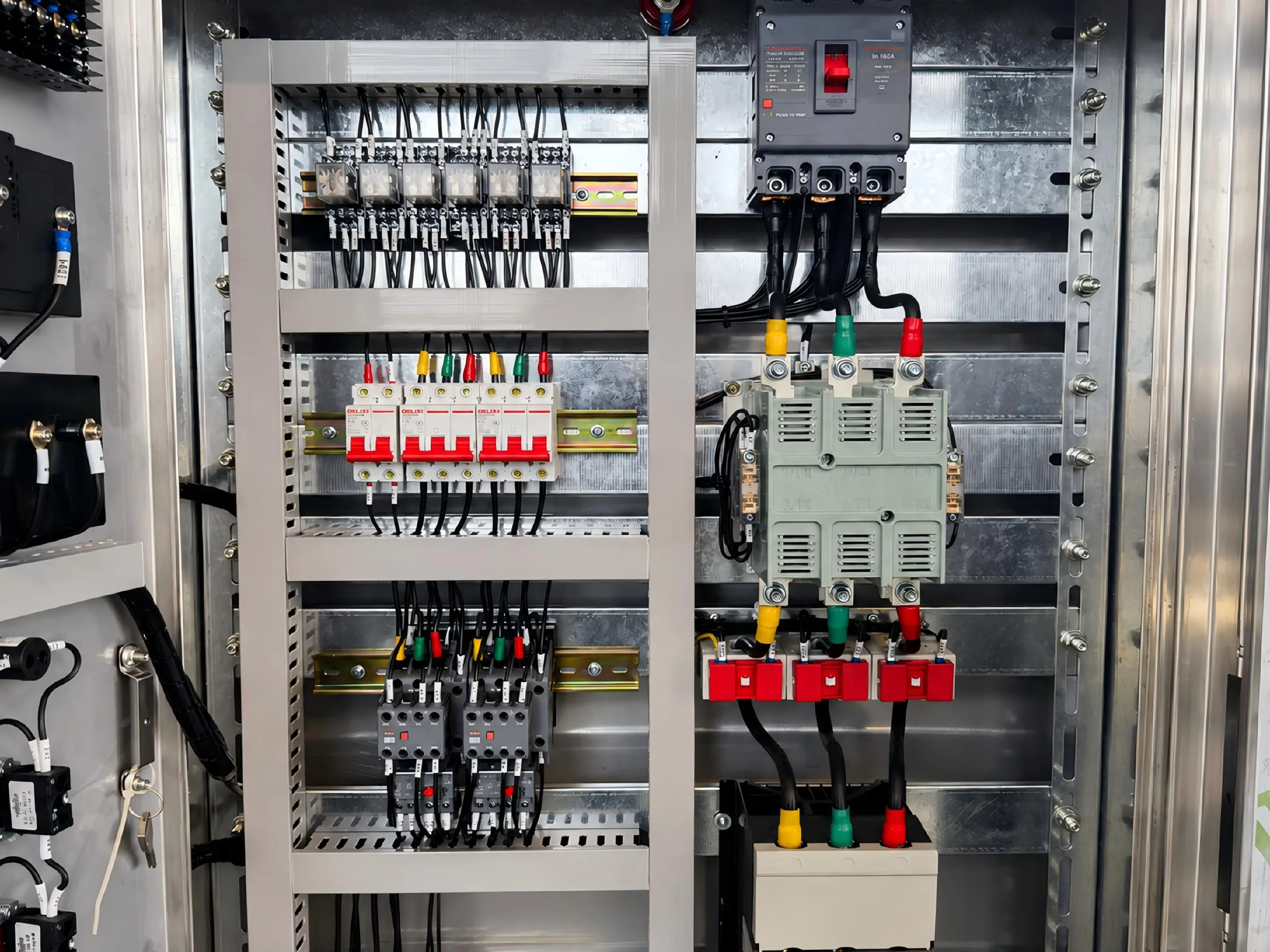

The system can include a local PLC/HMI cabinet with PID temperature control, SCR or staged power regulation, motor control and remote communication to the field DCS or SCADA system.
Control signals can include inlet/outlet temperature, element sheath temperature, flow, pump status, pressure, valve status and cabinet alarms.
The PLC or control cabinet can coordinate pump start, valve permissive, minimum-flow confirmation, staged heater energization, outlet-temperature control, pressure alarm, over-temperature shutdown and controlled cooldown. Local/remote operation, HMI, alarm history and DCS communication can be included according to the field control philosophy.
Safety Protection

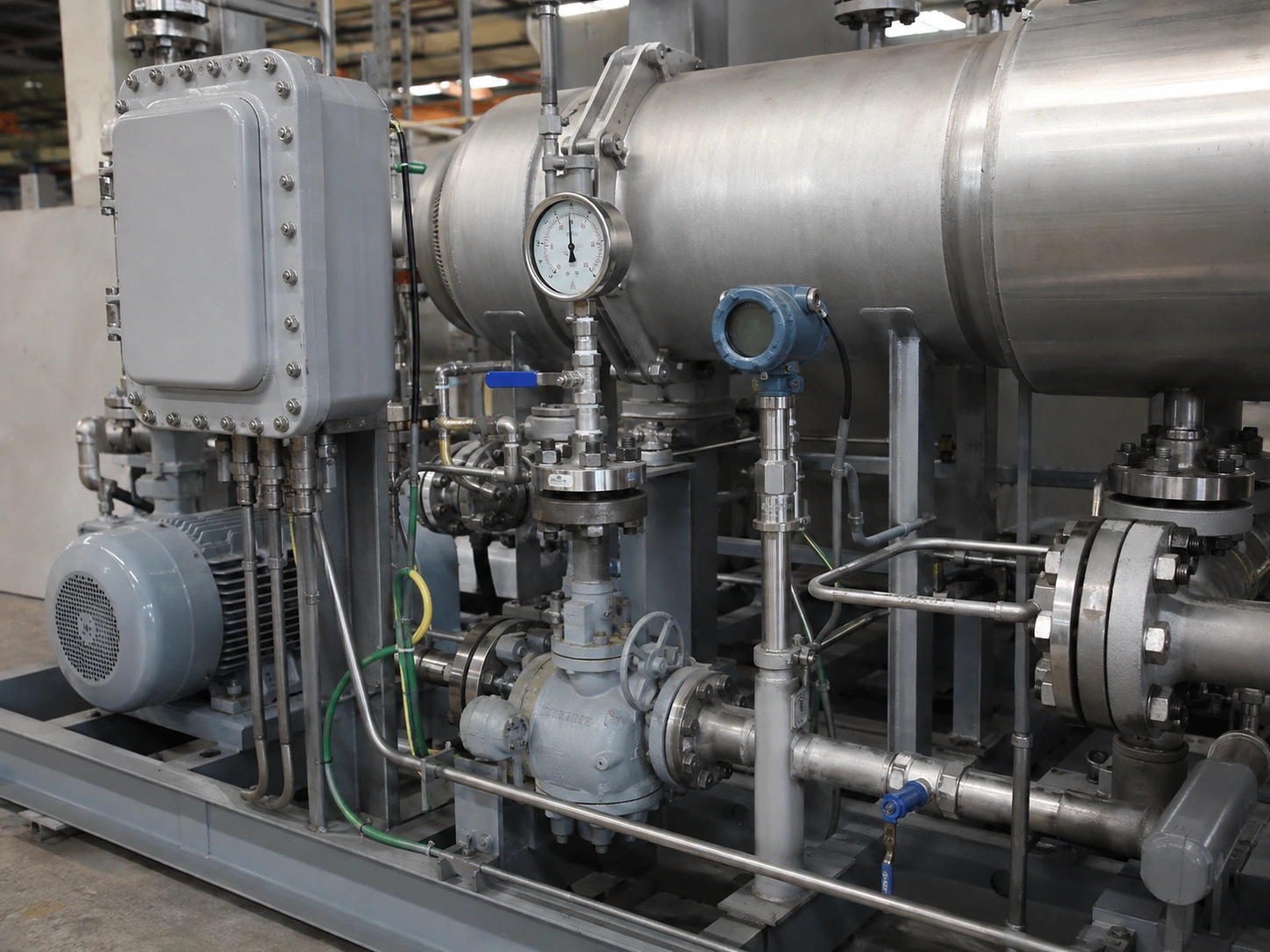

Typical protection can include independent over-temperature cutoff, pump-running and minimum-flow interlocks, valve permissive, pressure monitoring, element-sheath temperature monitoring, ground-fault protection, protective grounding and emergency stop.
The heater must not be energized until the required crude-oil circulation is established. Cold-start sequencing should consider oil viscosity, pump capability, valve position and the risk of stagnant oil around the heating elements.
For hazardous-area oilfield applications, explosion-proof terminal boxes and matched electrical configurations are available. Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb. Outdoor protection and the final electrical arrangement are confirmed according to the site classification and field environment.
Typical Applications
Typical applications for the Oilfield Skid-Mounted Crude Oil Heating System include the following oilfield crude-oil heating, viscosity-reduction and transfer duties. Final selection should be based on confirmed process data.
Wellhead Heating
Heating crude oil near the wellhead before gathering or transfer.
Gathering Stations
Viscosity reduction and temperature control in field gathering processes.
Crude Oil Transfer
Maintaining suitable oil temperature for pumping and pipeline transport.
Heavy Oil Production
Packaged heating for high-viscosity crude or heavy-oil service.
Cold-Climate Start-Up
Supporting oil circulation and equipment start-up in low ambient temperatures.
Oil-Water Treatment
Heating selected oilfield process streams before separation or treatment.
Temporary / Modular Projects
Skid packages for fast field connection or relocatable service.
Remote Oilfield Facilities
Integrated heating and control package for limited on-site assembly.
How to Select the Right Oilfield Skid-Mounted Crude Oil Heating System
Please provide the following information so Xiangyuan Machinery can select and design the Oilfield Skid-Mounted Crude Oil Heating System for the actual operating conditions.
Crude-Oil Properties
Provide the crude-oil type, viscosity curve, density, water content, wax, sediment, pour point, flash point and available laboratory data.
Flow Rate
State normal, minimum, maximum and start-up flow.
Inlet / Target Temperature
Provide seasonal inlet and required outlet temperature.
Working Pressure
Provide operating/design pressure and allowable pressure drop.
Pump Duty
State suction conditions, required head and available NPSH (NPSHa).
Site Climate
Provide minimum/maximum ambient temperature, wind and outdoor conditions.
Hazardous Area and Outdoor Conditions
Provide the site classification, gas group, temperature class, ambient range, rain, dust, corrosion and cold-weather requirements.
Power Supply
Provide voltage, frequency, available capacity and distribution limits.
Control Interface
Define PLC/HMI, DCS/SCADA communication and remote signals.
Skid Limits
Provide footprint, lifting, transport and foundation constraints.
Piping Standard
State flange, piping class, valve and instrument specifications.
Documents / Testing
List P&ID, GA, FAT, inspection and documentation requirements.
Frequently Asked Questions
Common questions about Oilfield Skid-Mounted Crude Oil Heating System selection, customization and industrial use.
What is an Oilfield Skid-Mounted Crude Oil Heating System?
What information is required for design?
Can the system be supplied fully assembled?
How is cold-start operation handled?
Can an explosion-proof outdoor skid be provided?
How is this different from a standalone Electric Crude Oil Heater?
How is it different from the general Oilfield Electric Heating System?
Why Choose Xiangyuan Machinery
Xiangyuan Machinery designs and manufactures industrial electric heaters, heating elements and control systems for customized process conditions. The Oilfield Skid-Mounted Crude Oil Heating System is engineered around the customer’s medium, thermal duty, installation limits and safety requirements.
Thermal & Material Engineering
Thermal design based on actual inlet conditions, target temperature and operating duty. Material selection matched to the medium, temperature, pressure and site environment.
Flexible Mechanical Arrangement
Flexible power, connection, installation and maintenance-access arrangements.
Control & Safety Integration
PID, SCR, staged control, PLC, HMI and remote interface options where required. Product-specific temperature, flow, pressure, level or electrical interlocks can be integrated.
Complete Project Supply
Supply scope can include the heater, control cabinet, instruments and related system components. Manufacturing inspection, electrical testing and technical documentation can be prepared according to project scope.
Tell Us Your Oilfield Crude Oil Heating Conditions
Send the medium, flow rate, inlet and outlet temperatures, operating pressure, power supply, installation dimensions, control method and site requirements. Xiangyuan Machinery will prepare a suitable technical proposal and quotation.
