ELECTRIC LIQUID & PROCESS FLUID HEATERS
Corrosive Chemical Liquid Heater
Custom corrosion-resistant electric heating equipment for chemical liquids and demanding process fluids.
The Corrosive Chemical Liquid Heater is designed for controlled heating of chemical liquids, aqueous solutions and process fluids where composition, concentration and temperature require careful material and seal selection.
The design can be customized in heating power, flow, pressure, connection, shell material, element sheath, watt density, seal, control and protection. Final material selection is based on the customer’s complete fluid data and operating conditions.
Product Overview
The Corrosive Chemical Liquid Heater is an industrial inline or immersion heating unit for chemical liquids and process fluids that cannot be treated as ordinary water or oil service.

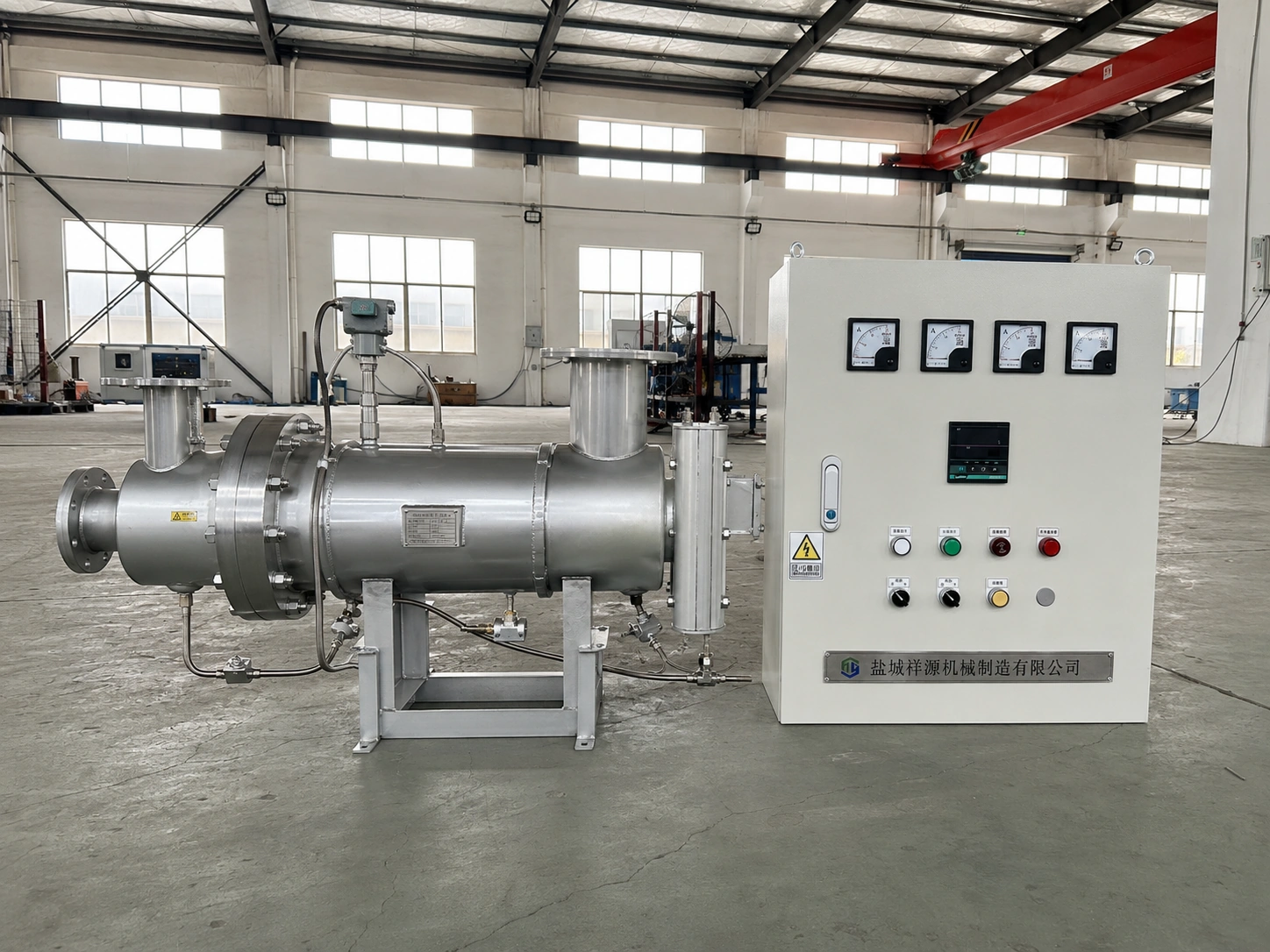

A typical inline design includes a pressure-bearing shell, inlet and outlet, removable flanged element bundle, terminal box, insulation, sensors, drain and vent connections. Tank or vessel duties can use a compatible immersion assembly.
The main selection issue is chemical compatibility. Fluid name alone is not sufficient; concentration, temperature, impurities, pressure, flow, cleaning method and possible phase change must be confirmed before materials are selected.
Xiangyuan Machinery can supply the heater only, the heater with an independent control cabinet, or a package including instruments, valves and piping selected for the confirmed process fluid.
Key Features
The Corrosive Chemical Liquid Heater can be engineered around the actual medium, duty, installation and control requirements of the project.
Chemical Compatibility Review
Material recommendations are based on fluid composition, concentration, temperature and impurities.
Controlled Watt Density
Element watt density can be reduced to limit local overheating, fluid decomposition, polymerization or crystallization.
Inline or Immersion Design
Available for circulation pipelines, process vessels or storage tanks according to the duty.
Custom Wetted Materials
SS316L, selected alloys and other compatible materials can be evaluated from process data.
Leak and Dry-Heating Protection
Level, flow, temperature and electrical protection can be integrated according to installation.
Hazardous-Area Configuration
Explosion-proof terminal boxes and matched electrical configurations are available. Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb.
Typical Technical Parameters
The following parameters are for reference only. Final design is confirmed according to the operating medium, temperature, dimensions and project requirements.
| Parameter | Customizable Range or Options |
|---|---|
| Product Name | Corrosive Chemical Liquid Heater |
| Heating Medium | Chemical liquid, aqueous solution or compatible process fluid |
| Fluid Data Required | Composition, concentration, impurities, temperature and compatibility information |
| Heating Power | Custom engineered from flow, heat capacity and temperature rise |
| Temperature Range | Customized according to fluid stability and material limits |
| Working Pressure | Atmospheric, vessel or pressure-bearing design according to process |
| Installation | Inline circulation, tank immersion or packaged system |
| Wetted Materials | SS304, SS316L or selected alloy after compatibility review |

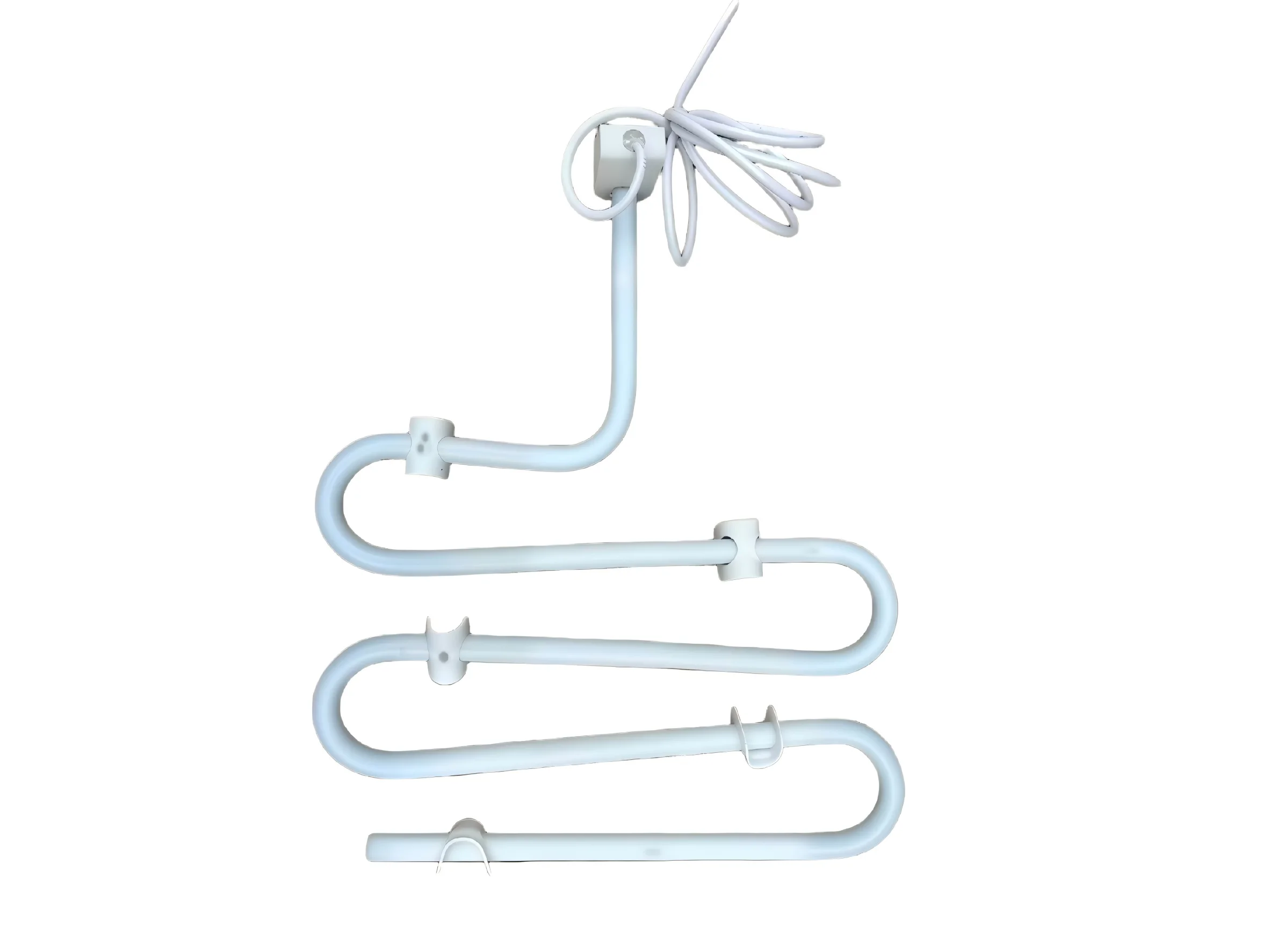

| Heating Element Sheath Material | SS316L, Incoloy, selected alloy or compatible coated sheath after chemical compatibility review |
| Seal / Gasket | Selected according to chemical, temperature and pressure |
| Control Method | PID, SCR, staged control, PLC or DCS interface |
| Explosion-Proof Option | Explosion-proof terminal box and matched electrical configuration; Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb. |
| Protection Options | Independent over-temperature cutoff, low-flow or pump interlock, low-level protection, dry-heating protection, pressure monitoring, ground-fault protection, protective grounding and emergency stop |
Structure, Materials, Control and Safety
Structure of the Heater

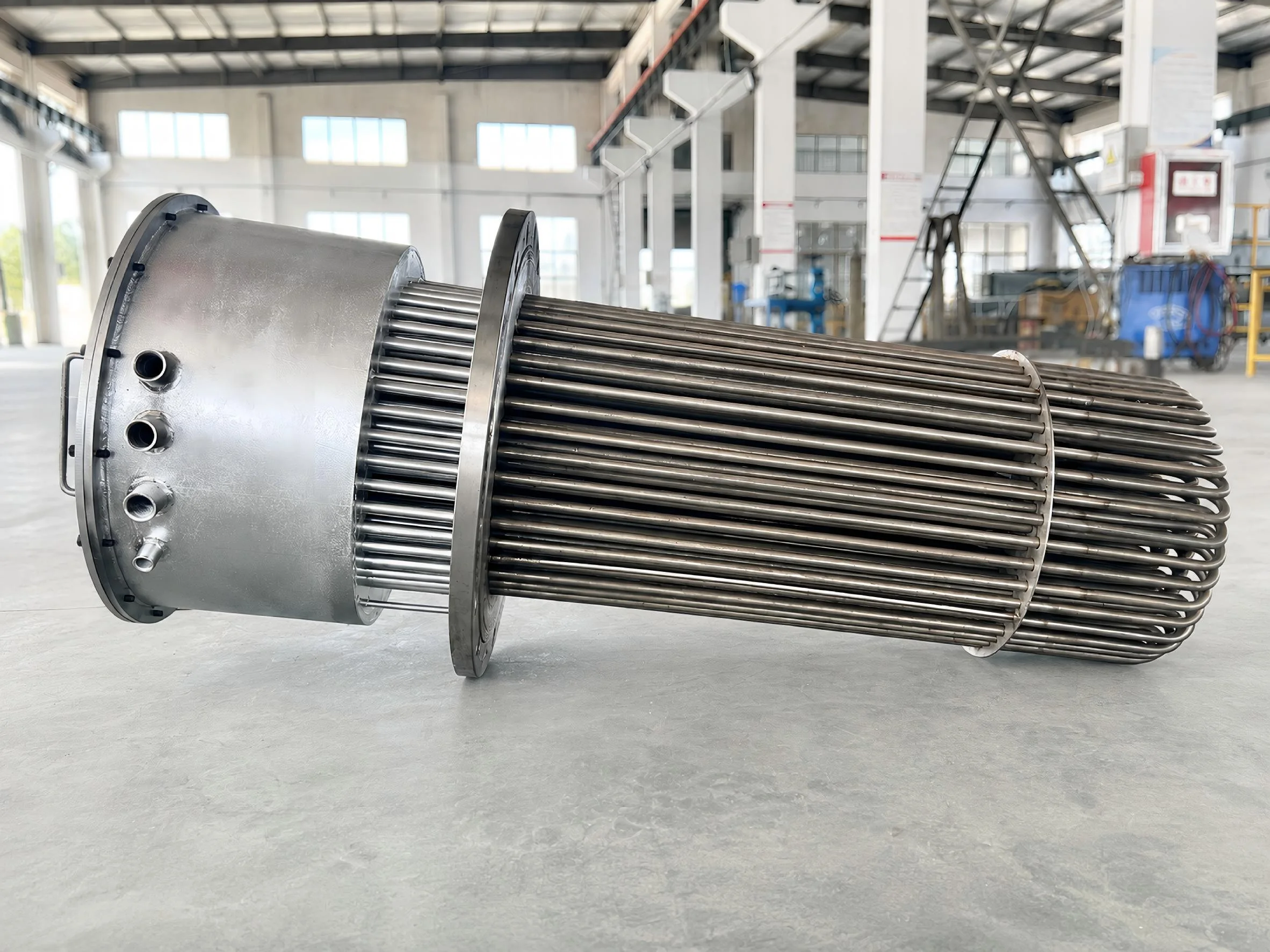

An inline chemical-liquid heater normally uses a pressure-bearing shell with compatible wetted surfaces and a removable flanged heating element bundle. The internal flow path is arranged to provide suitable velocity and avoid stagnant hot zones.
The unit can include vent and drain connections, temperature and pressure ports, insulation, external cladding, compatible gaskets, terminal enclosure and maintenance supports. A vessel version can use a flanged immersion bundle.
The structure is customized for cleaning, flushing, drainage, element removal and prevention of trapped liquid. These details are confirmed from the process and maintenance method.
Materials and Customization
Material selection must be based on complete chemical data. SS316L may be suitable for some duties, while other fluids may require different alloys or non-standard wetted components. No single material should be assumed suitable for all corrosive chemical services.
Element sheath material, weld filler, shell, flange, gasket and sensor sheath should be reviewed as one wetted-material system. Operating temperature can significantly change corrosion behavior.
Element diameter, watt density and spacing can be adjusted for fluids that may decompose, polymerize, crystallize or form deposits at elevated surface temperature.

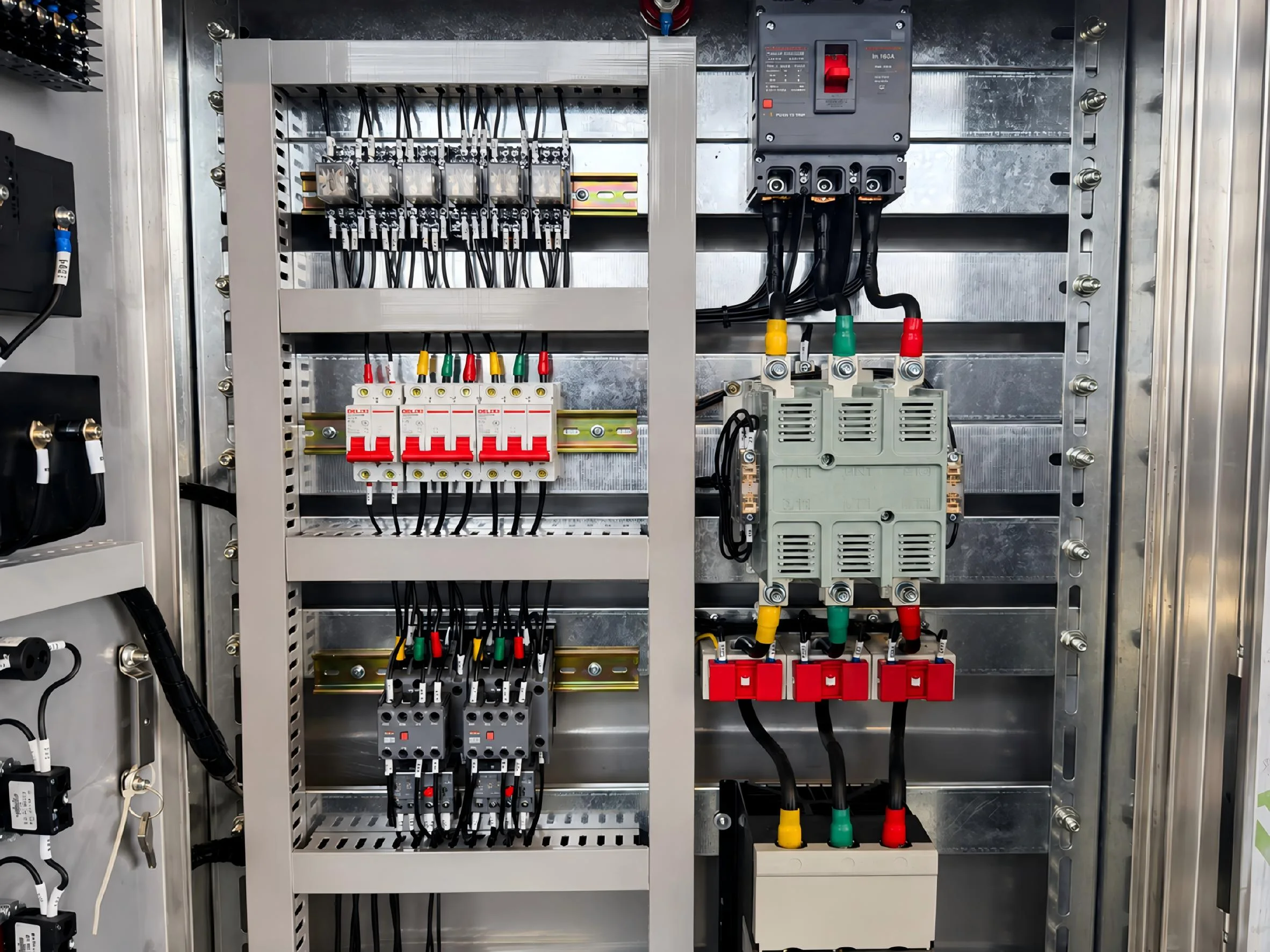

Control System
Temperature can be controlled by PID and SCR or staged power regulation through an independent cabinet or the customer’s PLC/DCS. Outlet-liquid temperature is commonly used for inline duty; vessel temperature can be used for batch duty.
Optional monitoring includes element sheath temperature, flow, level, pressure and upstream or downstream process conditions.
Control logic can prevent energization without confirmed liquid coverage or flow, limit power during start-up and generate alarms for high temperature, low level, low flow or electrical fault.
Safety Protection
Typical protection can include an independent over-temperature cutoff, low-flow or pump interlock, low-level and dry-heating protection, pressure monitoring, ground-fault protection, protective grounding and emergency stop.
The heater must not be energized until the heating elements are fully wetted or the required liquid flow is confirmed. The operating procedure should also prevent unexpected concentration changes, crystallization, polymerization or gas generation around the heating surface.

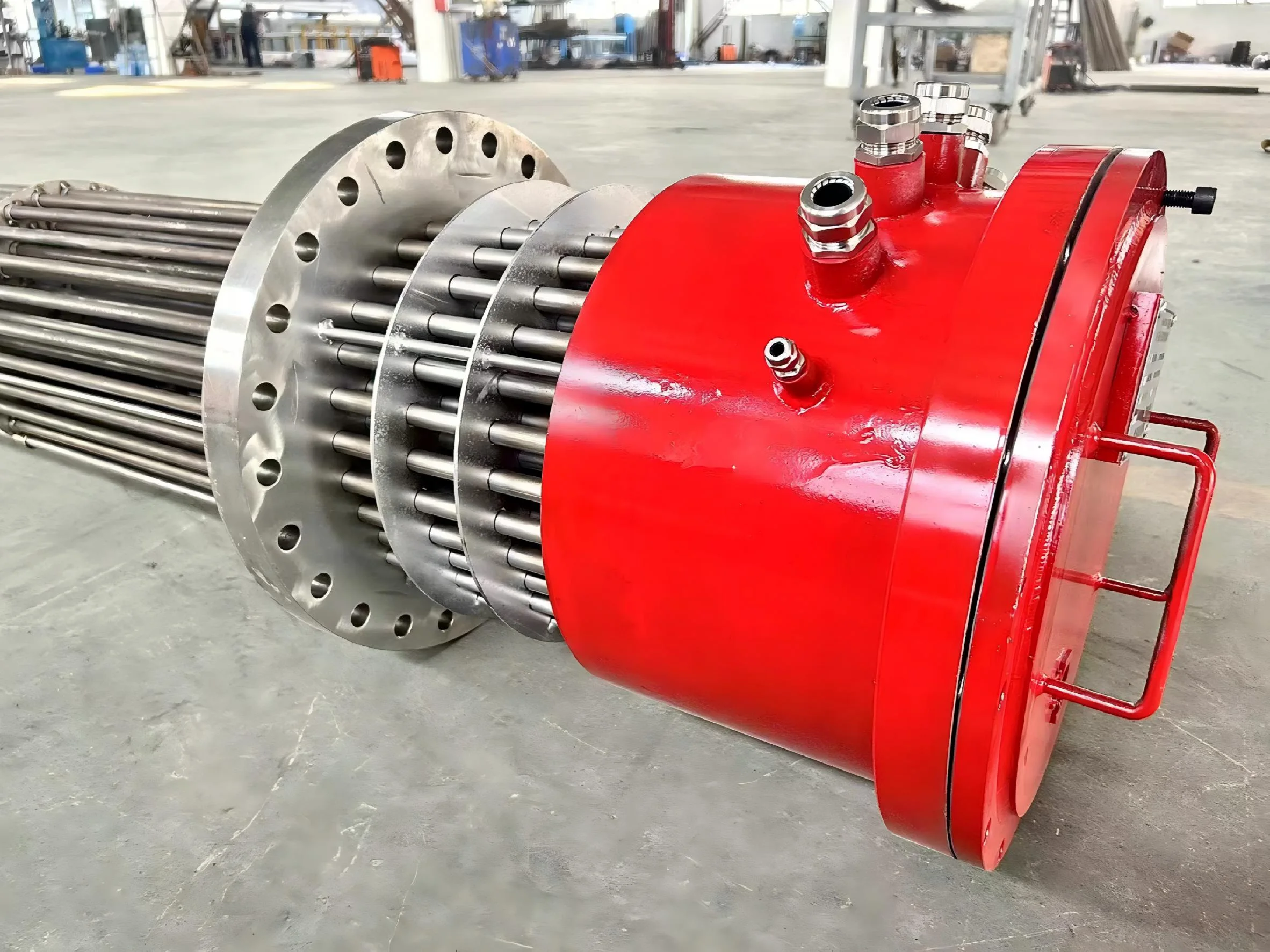

For hazardous-area applications, explosion-proof terminal boxes and matched electrical configurations are available. Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb. The final configuration is confirmed according to the liquid hazard, site classification and actual operating conditions.
Typical Applications
Typical applications for the Corrosive Chemical Liquid Heater include chemical-process, acid/alkali and other corrosion-sensitive liquid-heating duties. Final selection should be based on confirmed fluid composition and process data.
Chemical Process Lines
Inline heating of compatible chemical liquids before reaction or transfer.
Aqueous Solutions
Controlled heating of salts, cleaning solutions or process water mixtures after compatibility review.
Acid / Alkali Service
Customized heating where exact chemical, concentration and temperature are confirmed.
Electroplating and Surface Treatment
Heating compatible baths and circulation loops.
Chemical Waste Treatment
Temperature control in selected chemical-treatment or neutralization processes.
Process Vessel Heating
Immersion heating of compatible liquids in tanks or vessels.
Cleaning and CIP Fluids
Heating compatible cleaning fluids in industrial circulation systems.
Packaged Chemical Equipment
Integration into dosing, mixing, treatment or process skids.
How to Select the Right Corrosive Chemical Liquid Heater
Please provide the following information so Xiangyuan Machinery can select and design the Corrosive Chemical Liquid Heater for the actual operating conditions.
Chemical Name
Provide the chemical name, composition and SDS or technical data where available.
Concentration
State normal, minimum and maximum concentration.
Impurities
List chloride, solids, contaminants or reaction by-products.
Temperature
Provide inlet, target, maximum and cleaning temperatures.
Flow / Volume
State pipeline flow or vessel working volume.
Pressure
Provide operating and design pressure plus allowable pressure drop.
Fluid Behavior
Describe crystallization, polymerization, decomposition or gas release risk.
Material History
Provide successful or prohibited materials from site experience.
Installation
Define inline, immersion, horizontal, vertical and maintenance direction.
Control
State sensor, PLC/DCS, alarm and interlock requirements.
Hazard Classification
Provide flammability and hazardous-area information.
Cleaning Method
State flushing, CIP, drainage and maintenance requirements.
Frequently Asked Questions
Common questions about Corrosive Chemical Liquid Heater selection, customization and industrial use.
What is a Corrosive Chemical Liquid Heater?
What information is required for material selection?
Is SS316L suitable for every chemical liquid?
Can the heater be inline or immersion type?
Can explosion-proof design be provided?
Why Choose Xiangyuan Machinery
Xiangyuan Machinery designs and manufactures industrial electric heaters, heating elements and control systems for customized process conditions. The Corrosive Chemical Liquid Heater is engineered around the customer’s medium, thermal duty, installation limits and safety requirements.
Thermal & Material Engineering
Thermal design based on actual inlet conditions, target temperature and operating duty. Material selection matched to the medium, temperature, pressure and site environment.
Flexible Mechanical Arrangement
Flexible power, connection, installation and maintenance-access arrangements.
Control & Safety Integration
PID, SCR, staged control, PLC, HMI and remote interface options where required. Product-specific temperature, flow, pressure, level or electrical interlocks can be integrated.
Complete Project Supply
Supply scope can include the heater, control cabinet, instruments and related system components. Manufacturing inspection, electrical testing and technical documentation can be prepared according to project scope.
Tell Us Your Chemical Liquid Heating Conditions
Send the medium, flow rate, inlet and outlet temperatures, operating pressure, power supply, installation dimensions, control method and site requirements. Xiangyuan Machinery will prepare a suitable technical proposal and quotation.
