CUSTOM LIQUID HEATING SOLUTION
Electric Inline Process Liquid Heater
Custom Electric Pipeline Liquid Heaters for Water, Oil, Chemical Liquids and Process Fluids
Xiangyuan Machinery designs and manufactures electric inline process liquid heaters for closed pipeline and circulation-loop fluid heating applications that require stable outlet temperature, pressure-bearing construction and customized material selection.
Installed directly in the pipeline, the heater heats liquid as it flows through the heating chamber. It can be customized for water, thermal oil, hydraulic oil, crude oil, heavy oil, chemical liquids, wastewater and other process fluids according to viscosity, flow rate, temperature, pressure and material compatibility.

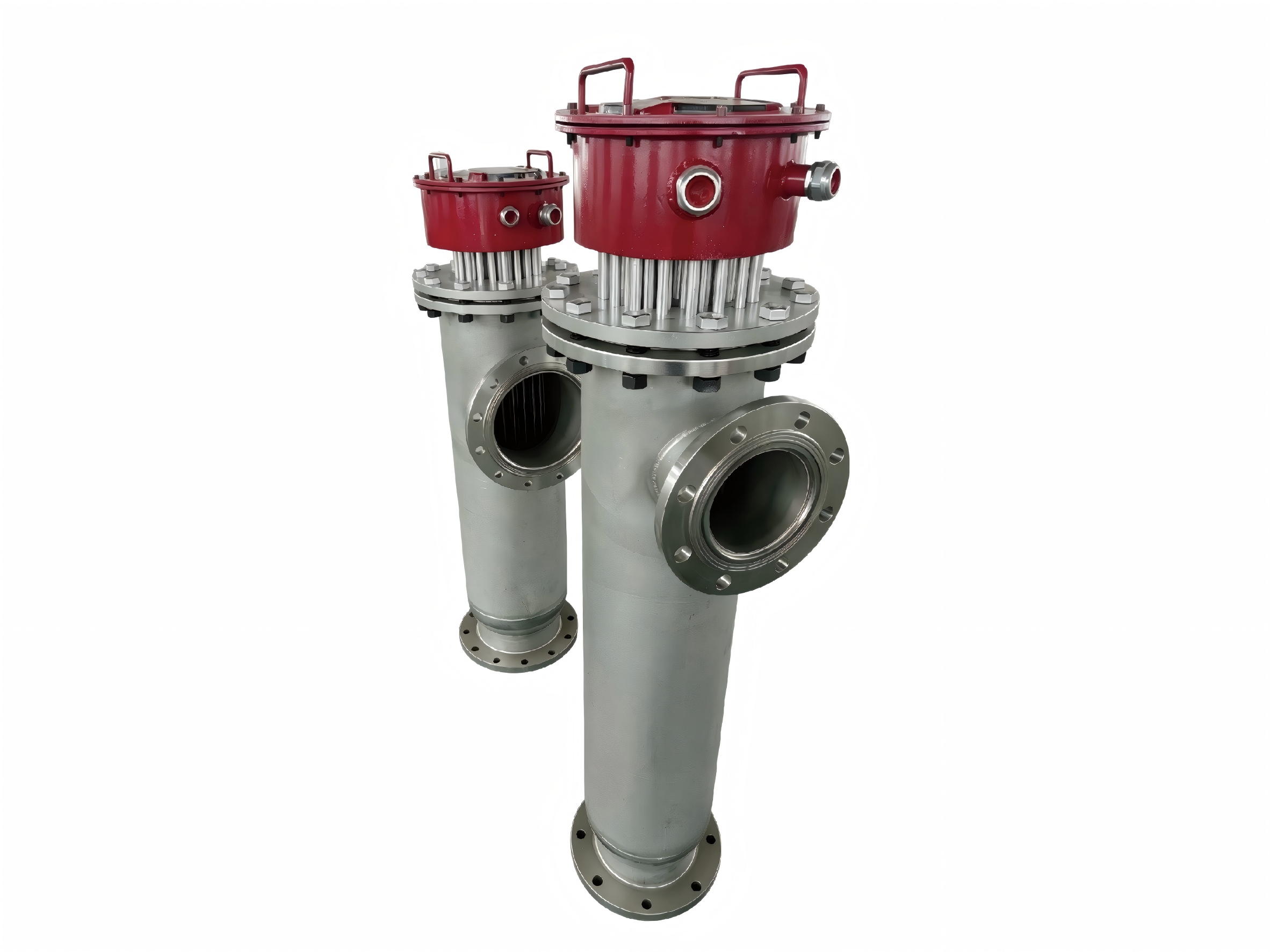

Product Overview

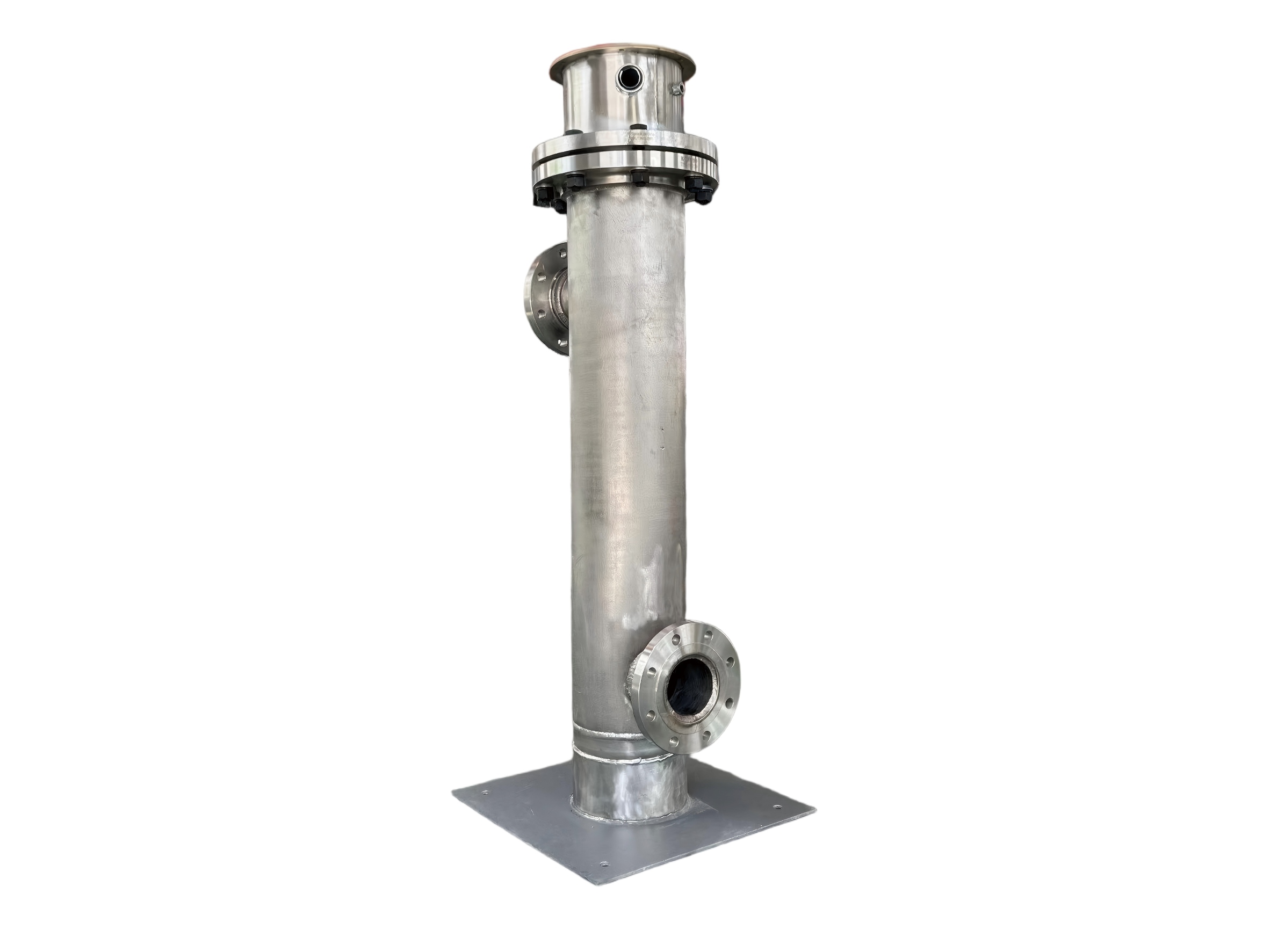

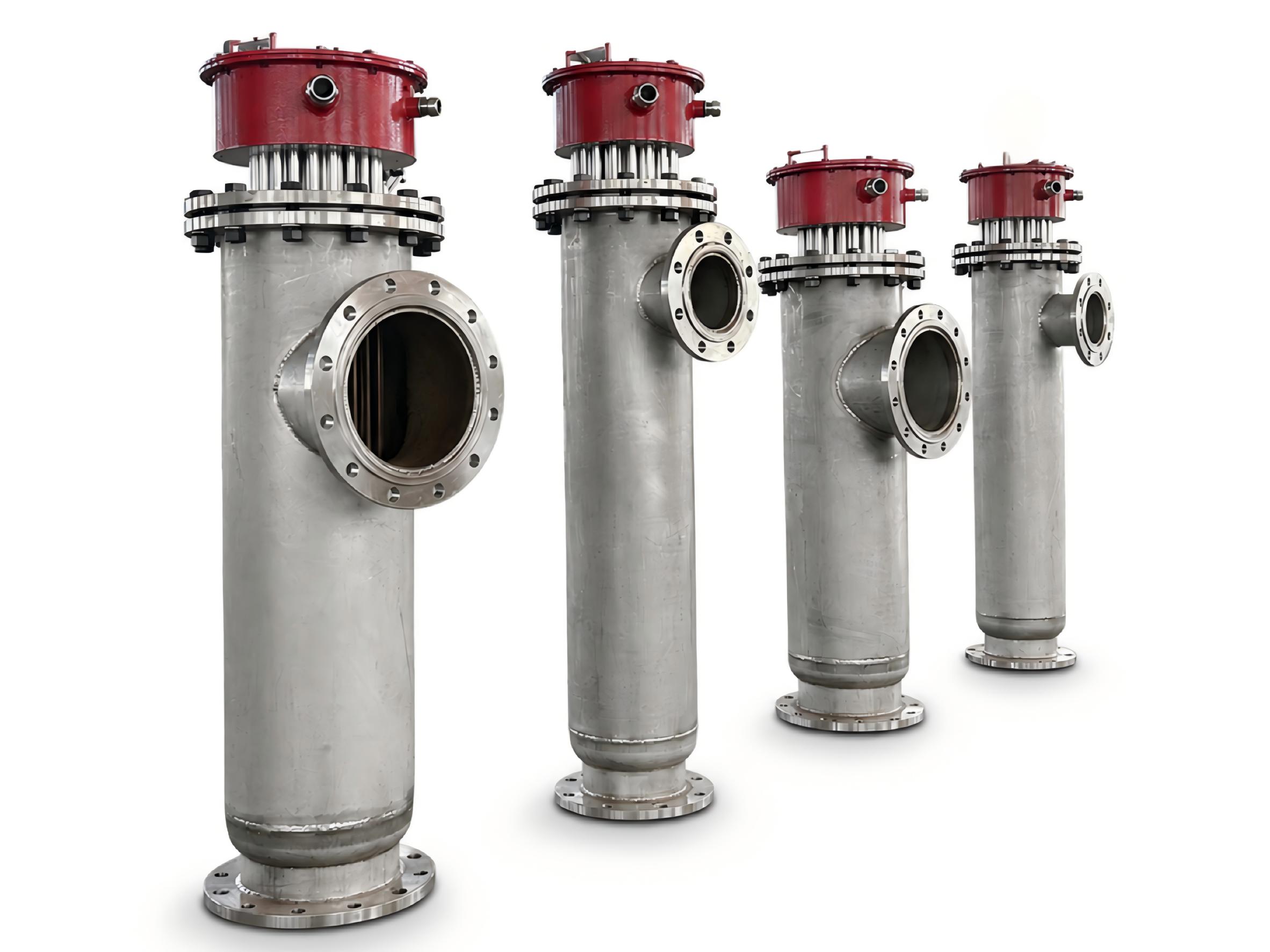

An electric inline process liquid heater is a closed-pipeline electric heating unit installed directly in a liquid pipeline or circulation loop. Liquid enters the heating chamber through the inlet connection, exchanges heat with the flanged electric heating element bundle, and leaves the heater at the required outlet temperature.
The heater is mainly composed of a pressure-bearing shell, flanged immersion heating element bundle, inlet and outlet connections, internal flow guide structure, thermal insulation layer, temperature sensors, pressure monitoring port, terminal box and optional control cabinet.
Compared with tank heating or open immersion heating, an inline process liquid heater is more suitable for continuous fluid heating, pipeline preheating, circulation heating and process temperature control where liquid flow and outlet temperature need to be controlled.
It can be supplied as a single heater body or as a complete heating system with control cabinet, temperature instruments, flow interlock, pressure monitoring, dry-heating protection and over-temperature shutdown.
Key Features
Key design features of the Electric Inline Process Liquid Heater can be customized according to liquid type, viscosity, flow rate, temperature rise, pressure, material compatibility, control method and safety requirements.
Inline pipeline installation
Installed directly in a pipeline or circulation loop to heat flowing liquid through a closed pressure-bearing heating chamber.
Suitable for various industrial liquids
Applicable to water, thermal oil, hydraulic oil, crude oil, heavy oil, wastewater and selected chemical liquids according to working conditions.
Pressure-bearing shell design
The heater body can be designed according to working pressure, flange standard, liquid flow direction and site installation layout.
Stable outlet temperature control
Temperature sensors, PID control, SCR power regulation and PLC control can be configured for stable outlet liquid temperature.
Material selection for different fluids
Carbon steel, SS304, SS316L, SS310S, Incoloy and selected corrosion-resistant materials can be used according to liquid properties.
Optional complete control cabinet
The heater can be supplied with an independent control cabinet for temperature control, power regulation, alarms and interlock protection.
Removable flanged element bundle
The flanged heating element bundle can be designed for easier inspection, replacement and maintenance when site conditions allow.
Safety interlock options
Low-flow, dry-heating, pressure, over-temperature, grounding, leakage and emergency stop protection can be integrated into the system.
Customized for process conditions
Heating power, shell size, flange connection, insulation, sensor position and control logic can be engineered for each project.
Typical Technical Parameters
The following parameters are for reference only. Final electric inline process liquid heater design can be customized according to process conditions and project requirements.
| Parameter | Customizable Range / Options |
|---|---|
| Product Name | Electric Inline Process Liquid Heater |
| Heating Medium | Water, thermal oil, hydraulic oil, crude oil, heavy oil, chemical liquid, wastewater and other process fluids |
| Heating Power | 2 kW – 2000 kW, customized according to process requirements |
| Outlet Temperature | Common liquid heating up to 350°C; higher-temperature designs can be evaluated according to medium and working conditions |
| Working Pressure | Atmospheric pressure to 1.0–2.5 MPa for common designs; higher-pressure designs can be customized after engineering review |
| Flow Rate | Customized according to process flow rate, liquid viscosity and required temperature rise |
| Liquid Viscosity | Reviewed according to medium properties, operating temperature and flow condition |
| Connection | Flange connection, threaded connection or customized according to pipeline standard |
| Installation | Horizontal or vertical inline pipeline installation |
| Shell Material | Carbon steel, SS304, SS316L, SS310S or selected corrosion-resistant alloy material |
| Heating Element Material | Stainless steel, Incoloy 800, Incoloy 840 or customized heating element material |
| Insulation | External thermal insulation layer available according to temperature and heat loss requirements |
| Temperature Sensor | Thermocouple, RTD or customized temperature sensor |
| Control Method | PID control, SCR power control, contactor control, PLC control, control cabinet optional |
| Protection Options | Over-temperature, low-flow, dry-heating, pressure, leakage, grounding and emergency stop protection; low-liquid-level protection optional when required |
| Hazardous-Area Design Option | Explosion-proof terminal boxes and control configurations can be evaluated according to the hazardous-area classification and project requirements |
Structure, Materials, Control and Safety

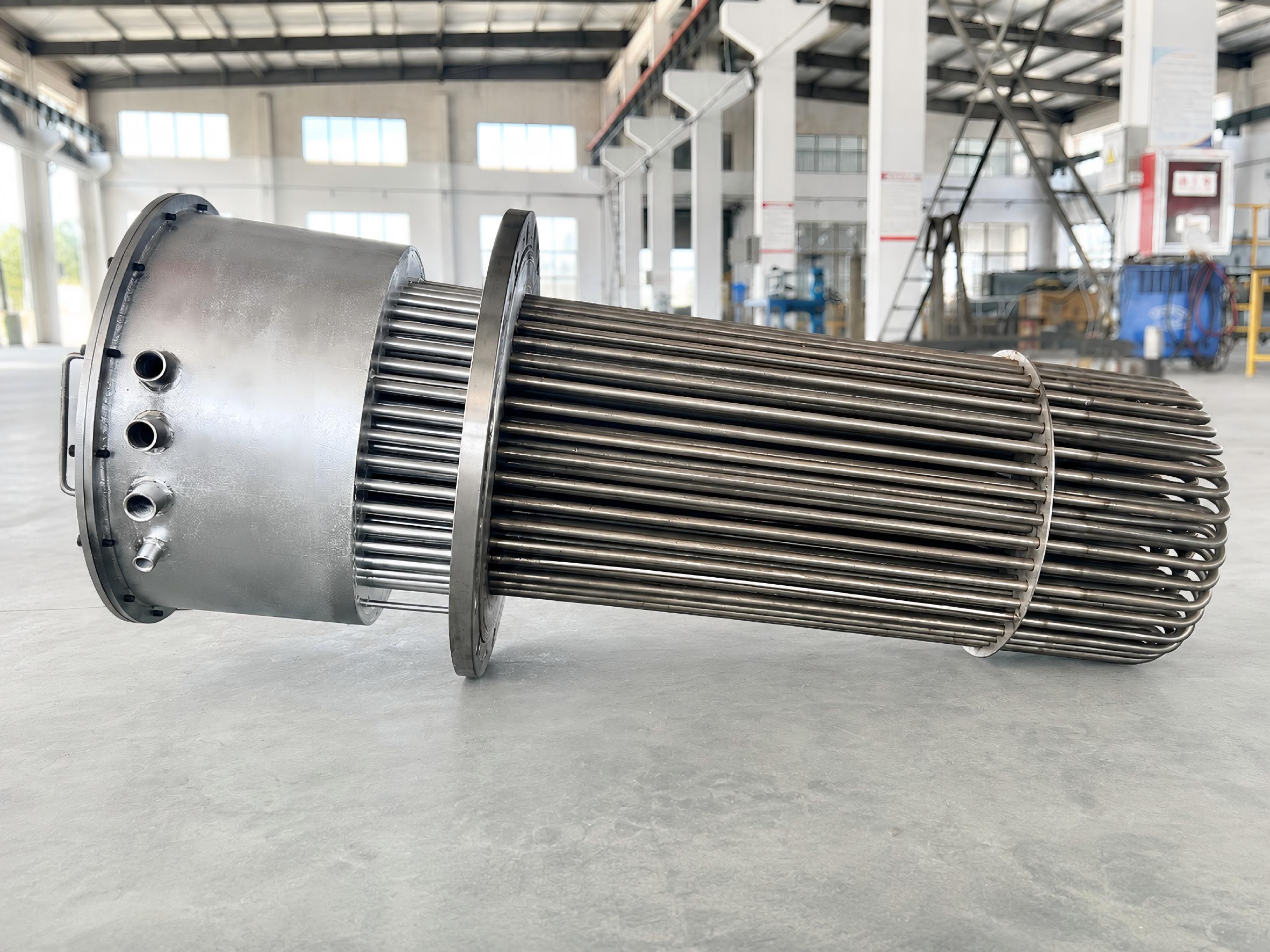

Structure of the Heater
The heater body is designed as a closed pressure-bearing heating chamber. Liquid enters from the inlet connection, passes through the internal flow path, exchanges heat with the flanged electric heating element bundle, and exits from the outlet connection at the required temperature.
Main structure can include:
- Pressure-bearing heater shell
- Flanged inlet and outlet
- Flanged immersion heating element bundle
- Internal support and flow guide structure
- Temperature sensor port
- Pressure monitoring port
- Drain or vent port
- Terminal box or explosion-proof junction box
- External thermal insulation layer
- Optional skid base and control cabinet

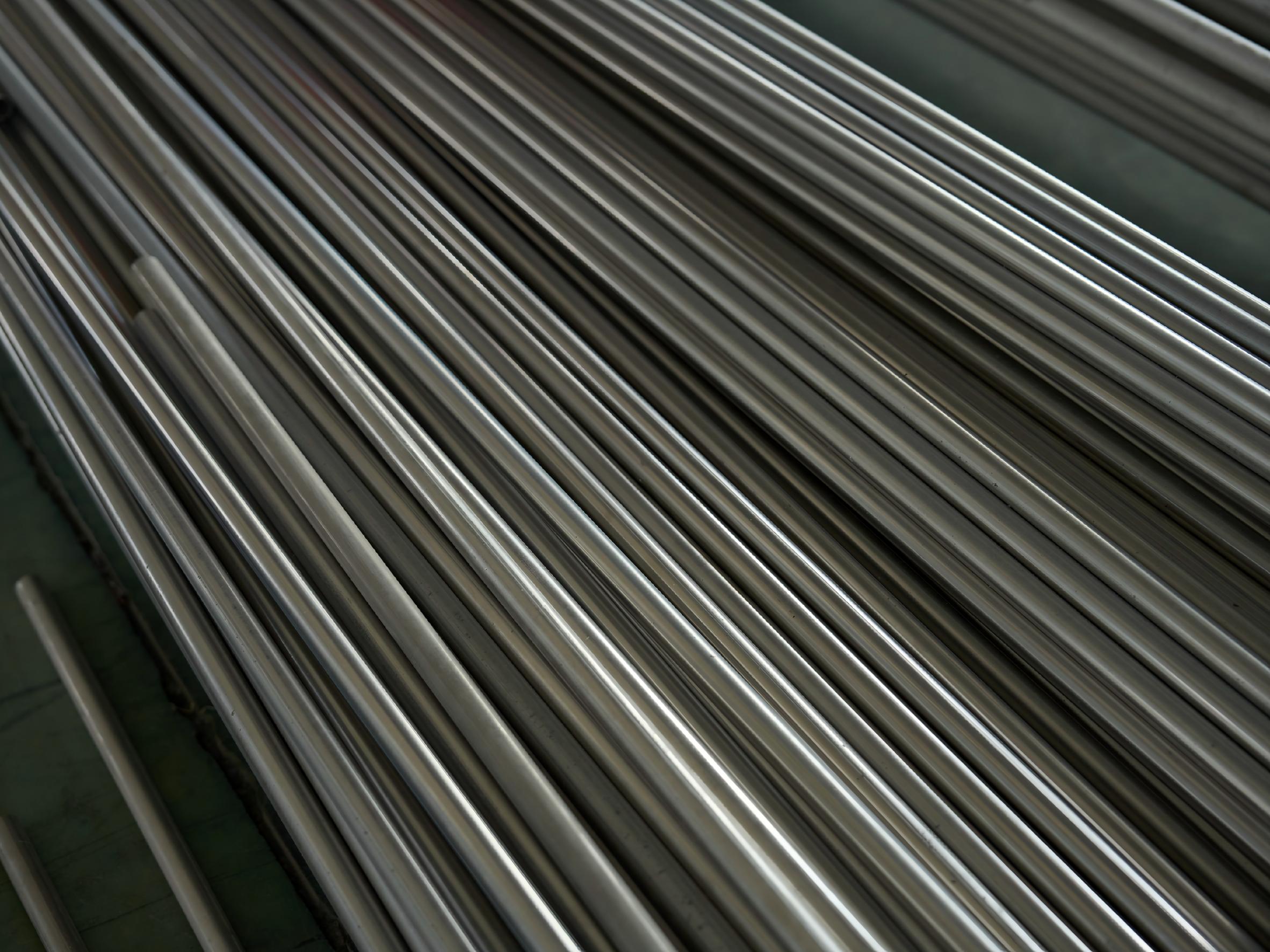

Materials and Customization
Material selection depends on liquid type, viscosity, working temperature, pressure, corrosion level and service environment.
For water or normal oil heating, carbon steel or SS304 can be used for common applications. For humid, corrosive or chemical process liquids, SS316L or selected corrosion-resistant alloy materials can be considered.
For high-temperature oil, heavy oil or special process fluids, heating element sheath material and watt density should be selected according to viscosity, flow condition, allowable surface temperature and maintenance requirements.
Customization options include:
- Heating power
- Shell diameter and length
- Flange standard
- Heating element material
- Heating element watt density
- Flow direction
- Installation position
- Insulation layer
- Control cabinet
- Explosion-proof design
- Skid-mounted system integration

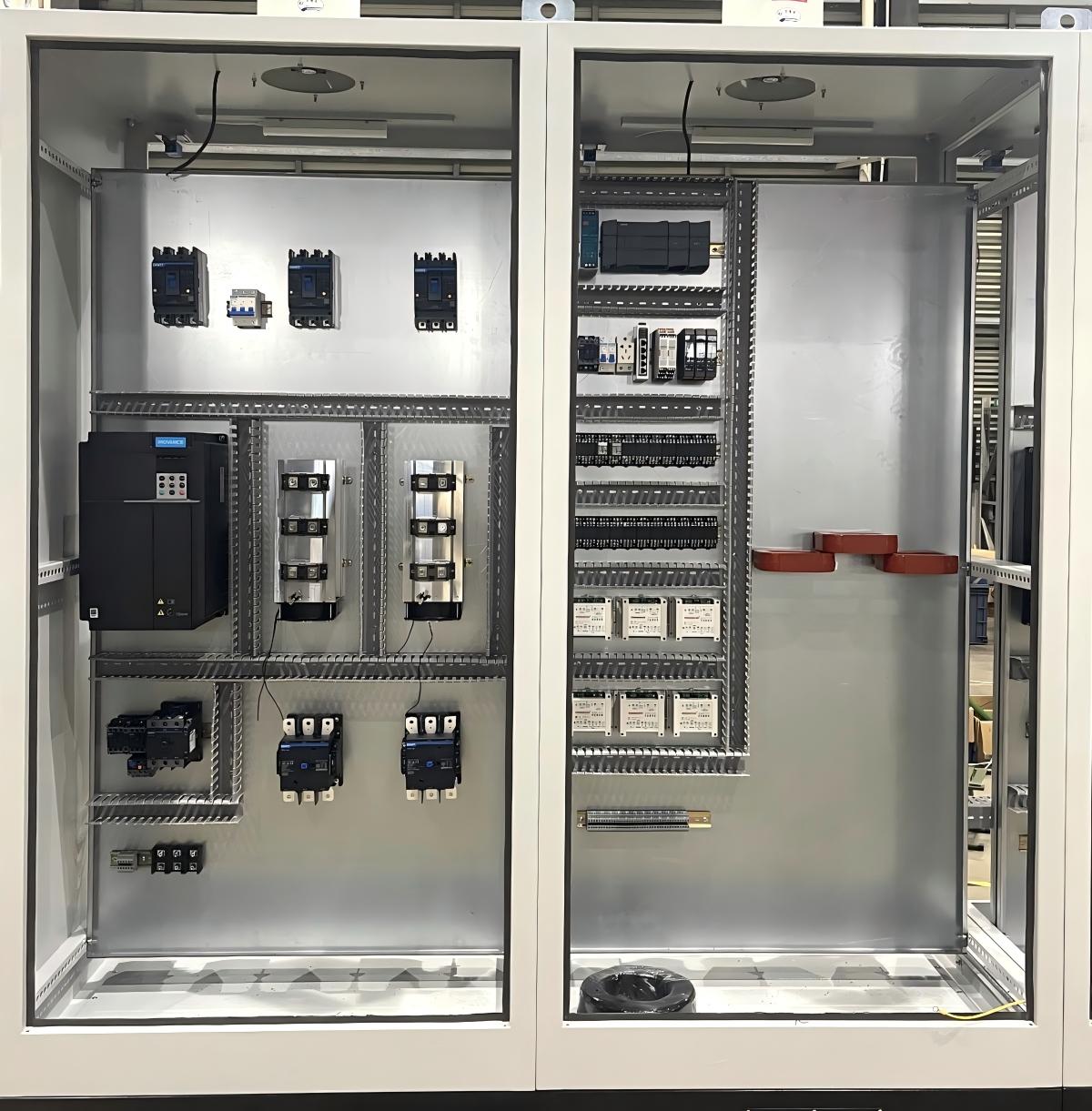

Control System
The electric inline process liquid heater can be supplied with an independent control cabinet for manual operation, automatic temperature control or PLC-based process control.
Control options can include:
- Outlet liquid temperature control
- Heater shell temperature monitoring
- Heating power step control
- SCR / thyristor power regulation
- PID closed-loop control
- Flow interlock
- Pressure monitoring
- Over-temperature shutdown
- Local and remote operation
- Signal interface with customer DCS or PLC system

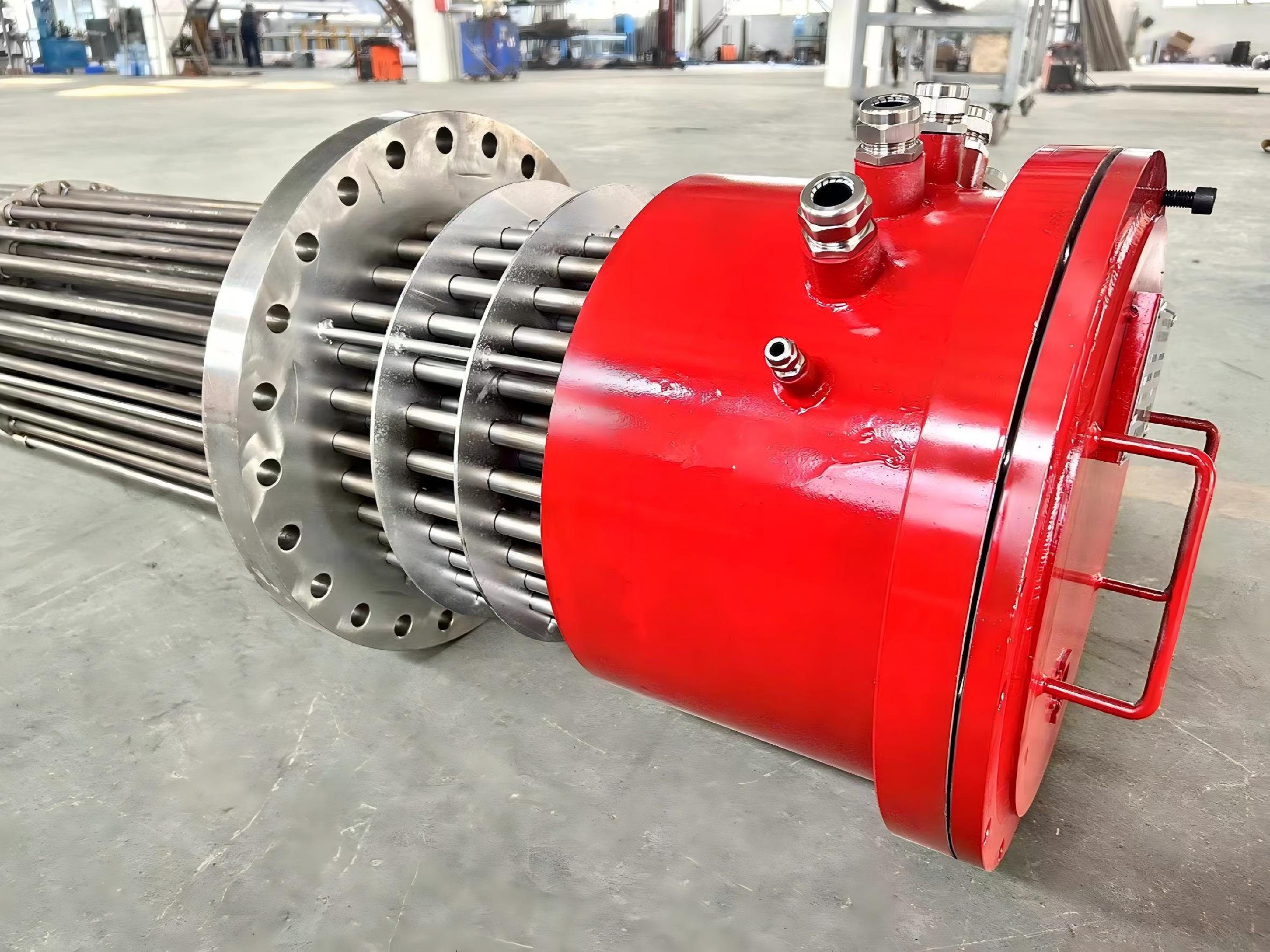

Safety Protection
Liquid heating applications require reliable protection against element overheating, insufficient liquid flow, dry heating, abnormal pressure and electrical failure.
Available safety protection options include:
- High-limit temperature protection
- Outlet liquid temperature monitoring
- Heater shell temperature monitoring
- Low-flow interlock
- Dry-heating protection
- Pressure transmitter or pressure switch
- Low-liquid-level protection when required
- Overload, short-circuit, leakage and grounding protection
- Emergency stop
- Explosion-proof junction box or explosion-proof control system for hazardous-area applications
Typical Applications
The Electric Inline Process Liquid Heater is used where liquid needs to be heated continuously inside a closed pipeline or circulation loop before entering the next process.
Water heating
Inline heating for industrial water systems, process water, cleaning water and temperature-controlled water circulation loops.
Process liquid heating
Used to raise or maintain liquid temperature in chemical, manufacturing, environmental and general process systems.
Thermal oil circulation heating
Provides electric heating for thermal oil or heat transfer oil circulation systems used in industrial process heating.
Hydraulic oil heating
Helps maintain suitable oil temperature and viscosity for hydraulic stations, lubrication units and industrial machinery.
Crude oil and heavy oil heating
Used for viscosity reduction, pipeline heating, oil transfer support and oilfield or petrochemical process heating.
Chemical liquid heating
Custom material selection can be applied for selected chemical liquids according to corrosion level and process temperature.
Wastewater heating
Supports wastewater temperature maintenance, process treatment and environmental protection systems.
Pipeline preheating
Installed in pipelines to preheat liquids before filtration, separation, reaction, transfer or downstream processing.
Industrial cleaning systems
Used in cleaning, washing and surface treatment systems where heated liquid improves process stability.
Petrochemical process heating
Provides customized inline liquid heating for refinery support, oil processing and petrochemical production systems.
Marine fluid heating
Can be customized for shipboard water, oil or auxiliary fluid heating according to marine installation requirements.
Skid-mounted fluid heating systems
Can be integrated with pumps, valves, instruments and control cabinets as a complete fluid heating package.
How to Select the Right Liquid Heater
To design a suitable electric inline process liquid heater, please provide the following process and installation information when available.
1. Liquid name and composition
Provide the liquid name, composition and concentration, especially if the liquid is corrosive, viscous, dirty, flammable or temperature-sensitive.
2. Flow rate
Provide the normal flow rate and maximum flow rate. This is required for heating power calculation and heater structure design.
3. Inlet temperature
Provide the normal inlet liquid temperature and the lowest possible inlet temperature during startup or winter operation.
4. Required outlet temperature
Provide the target outlet liquid temperature and allowable temperature tolerance for the process.
5. Working pressure
Provide the normal working pressure, maximum design pressure and any pressure fluctuation in the pipeline or circulation loop.
6. Liquid viscosity
Viscosity affects flow condition, heat transfer, pressure drop and heating element surface load, especially for crude oil and heavy oil.
7. Corrosion level
Corrosion information helps select shell material, heating element sheath material, sealing structure and maintenance design.
8. Pipeline size
Provide pipeline diameter, installation direction and available maintenance space around the heater.
9. Flange standard
Provide flange standard, flange rating, connection size and whether threaded or customized connections are required.
10. Voltage and frequency
Confirm supply voltage, phase and frequency, such as 380V 3-phase 50Hz or 480V 3-phase 60Hz.
11. Control requirement
Confirm whether manual control, PID control, SCR power regulation, PLC control, remote signal or DCS communication is required.
12. Safety protection requirement
Confirm requirements for over-temperature protection, low-flow interlock, dry-heating protection, pressure monitoring and emergency stop.
13. Hazardous-area requirement
Confirm whether the heater will be installed in a hazardous area and whether explosion-proof design is required.
14. Maintenance requirement
Let us know whether the heating element bundle needs to be removable and how much maintenance space is available on site.
15. Complete system requirement
Confirm whether you need only the heater body, a heater with control cabinet, or a complete skid-mounted liquid heating system.
Frequently Asked Questions
Common questions about electric inline process liquid heaters for industrial pipeline and circulation-loop fluid heating.
What is an electric inline process liquid heater?
It is a closed-pipeline electric heating unit installed directly in a liquid pipeline or circulation loop to heat flowing liquids to the required outlet temperature.
What liquids can be heated?
It can be customized for water, thermal oil, hydraulic oil, crude oil, heavy oil, chemical liquids, wastewater and selected process fluids according to material compatibility.
What design information is required?
Typical information includes liquid type, flow rate, inlet temperature, required outlet temperature, working pressure, viscosity, corrosion level, voltage, connection size and control method.
Can dry-heating protection be configured?
Yes. Flow interlock, low-flow protection, over-temperature shutdown, pressure monitoring and control cabinet interlock can be configured to reduce dry-heating and overheating risk.
Can it be supplied as a complete system?
Yes. Xiangyuan Machinery can supply the heater body only or a complete fluid heating system with control cabinet, instruments, valves, pump and skid frame when required.
Why Choose Xiangyuan Machinery
Xiangyuan Machinery provides custom industrial electric heaters, heating elements and complete electric heating systems for demanding process applications. Each electric inline process liquid heater can be engineered according to real liquid properties, viscosity, flow rate, temperature requirements, pressure level, installation layout, material compatibility, control logic and safety requirements.
Thermal & Material Engineering
Custom design according to real working conditions Material selection for water, oil, chemical liquid and wastewater heating
Flexible Mechanical Arrangement
Pressure-bearing heater body with customized flange and installation design
Control & Safety Integration
Integrated heater and control cabinet supply Optional explosion-proof design for hazardous areas
Complete Project Supply
Support for non-standard industrial liquid heating projects Factory inspection before delivery
Need a custom electric inline process liquid heater?
Tell us your liquid type, composition, flow rate, inlet temperature, required outlet temperature, working pressure, pipeline size, voltage and installation conditions. Xiangyuan Machinery can customize electric inline process liquid heaters for closed pipeline and circulation-loop fluid heating applications.
