HAZARDOUS-AREA ELECTRIC HEATING
Explosion-Proof Electric Heater
Custom Explosion-Proof Electric Heaters for Hazardous-Area Air, Gas, Liquid and Process Heating
Xiangyuan Machinery designs and manufactures explosion-proof electric heaters for hazardous-area heating applications in oil and gas, petrochemical, chemical processing, marine, tank farm and industrial process environments.
Each explosion-proof electric heater can be customized according to heating medium, hazardous-area requirement, temperature class, working temperature, pressure, installation method, material compatibility, control logic and safety protection requirements.
Product Overview
An explosion-proof electric heater is an industrial electric heating unit designed for process environments where flammable gases, vapors or hazardous atmospheres may be present. The heater body, terminal box, sensors, wiring method and control system can be engineered according to the hazardous-area requirement and process conditions.
Explosion-proof electric heaters can be designed for air heating, process gas heating, nitrogen heating, duct heating, liquid heating, thermal oil heating, tank heating, circulation heating and skid-mounted heating systems.
The complete heater can include a pressure-bearing heater body, electric heating element bundle, explosion-proof terminal box, temperature sensors, pressure monitoring, flow or level interlock, control cabinet and safety shutdown logic.
For hazardous-area applications, heater surface temperature, element temperature, outlet temperature, temperature class and interlock protection should be reviewed together to support safe and stable operation.
Key Features
Hazardous-Area Configuration
Terminal boxes, cable entries and electrical components can be selected according to the confirmed site classification.
Multiple Heating Media
Configurations can be evaluated for air, nitrogen, process gas, water, oil, thermal oil and compatible process fluids.
Pressure-Bearing Heater Options
Inline gas and liquid heater bodies can be designed for the stated operating and design pressure.
Material Selection for Different Media
Carbon steel, stainless steel and selected alloys can be evaluated according to corrosion, temperature and process conditions.
Independent Over-Temperature Protection
Separate temperature limits and shutdown logic can be included to reduce overheating risk.
Flow, Level and Pump Interlocks
Required process permissives can be configured according to whether the heater serves gas, liquid, tank or circulation duty.
Local or Remote Control
PID, SCR, PLC, HMI and DCS interfaces can be supplied according to the project control philosophy.
Integrated Heater and Control Supply
The scope can include the heater body, explosion-proof terminal box, remote control cabinet, instruments, valves and piping.
Customized Project Documentation
Drawings, wiring information, inspection records and project documents can be prepared according to the confirmed supply scope.
Typical Technical Parameters
The following parameters are for reference only. Final explosion-proof electric heater design can be customized according to process conditions and project requirements.
| Parameter | Customizable Range / Options |
|---|---|
| Product Name | Explosion-Proof Electric Heater |
| Heating Medium | Air, nitrogen, process gas, thermal oil, crude oil, heavy oil, water, chemical liquid and process fluid |
| Heating Power | 2 kW – 2000 kW, customized according to process requirements |
| Temperature Range | Customized according to medium, working temperature, hazardous-area requirement and temperature class |
| Operating Pressure | Atmospheric pressure to 1.0–2.5 MPa for common designs; higher-pressure designs can be customized after engineering review |
| Explosion-Proof Type | Explosion-proof heater body, terminal box, junction box, control cabinet or complete heating system |
| Certification Option | Ex db IIC T1-T6 Gb options available where applicable |
| Heater Structure | Inline, flanged, immersion, duct-mounted, tank-mounted, circulation or skid-mounted design |
| Shell Material | Carbon steel, SS304, SS316L, SS310S or selected alloy material |
| Heating Element Material | Stainless steel, Incoloy 800, Incoloy 840 or selected high-temperature alloy |
| Temperature Sensor | Thermocouple, RTD, high-limit temperature sensor or customized sensor |
| Control Method | PID control, SCR power regulation, staged control, PLC control, explosion-proof or remote control cabinet optional |
| Safety Interlock | Over-temperature, low-flow, pressure, low-level, leakage, grounding and emergency stop protection |
| Installation | Horizontal, vertical, flange-mounted, skid-mounted or customized installation |
| Documentation | Wiring diagram, inspection record, nameplate information and operation guidance can be provided according to project requirements |
| Custom Design | Medium, power, pressure, temperature class, material, voltage, installation method, control logic and hazardous-area requirement |
Structure, Materials, Control and Safety
Structure of the Heater
The explosion-proof electric heater is designed according to the heating medium and hazardous-area requirement. The heater body, heating element bundle, terminal box, sensor ports, wiring entries and control system should be reviewed together for safe operation.
Main structure can include:
- Explosion-proof heater body
- Electric heating element bundle
- Explosion-proof terminal box or junction box
- Flanged inlet and outlet or mounting connection
- Temperature sensor port
- High-limit temperature sensor
- Pressure monitoring port
- Flow switch or level switch when required
- External thermal insulation layer

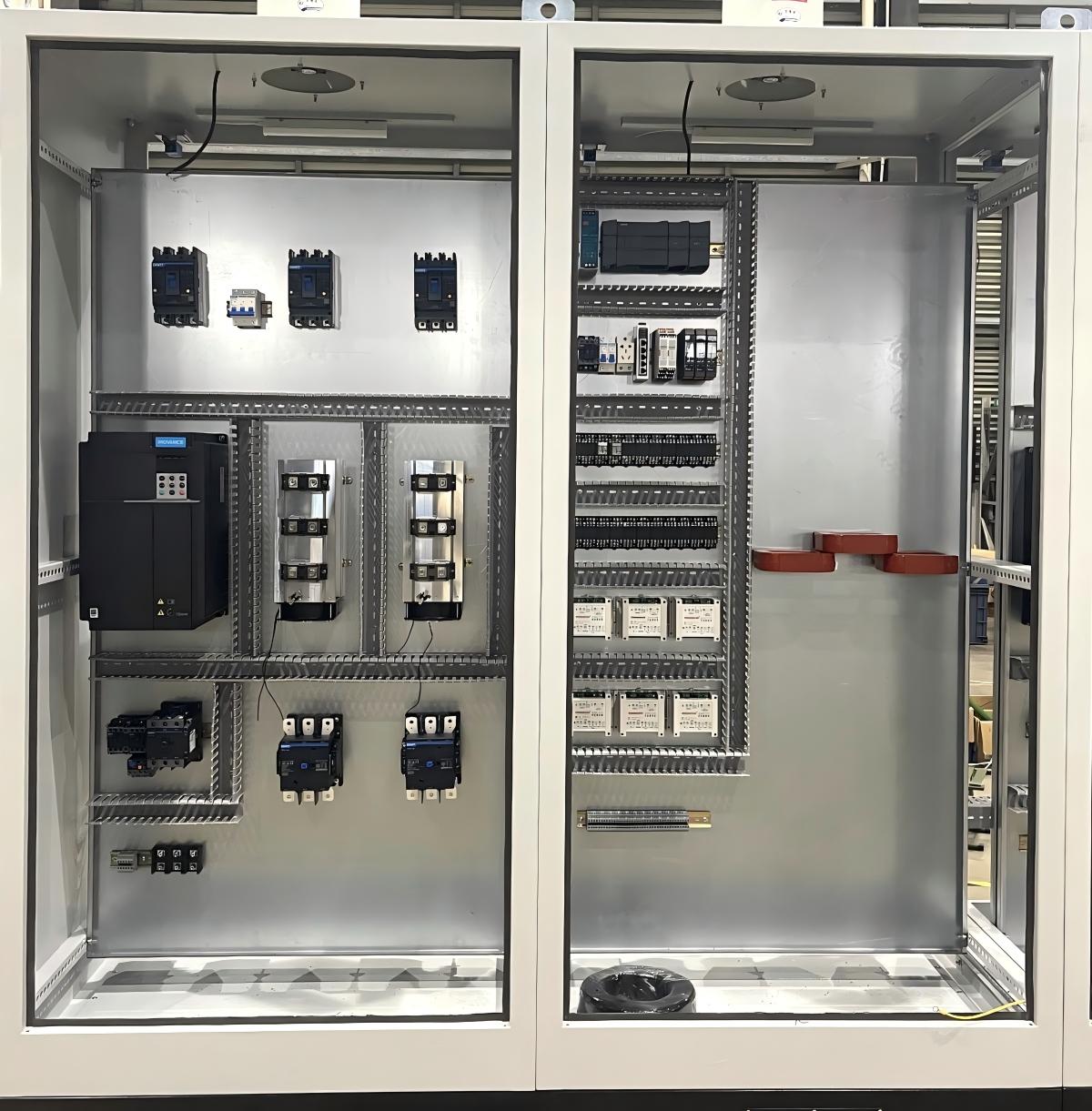

- Explosion-proof or remote-mounted control cabinet
- Optional skid frame and instruments
The structure must be confirmed according to medium, temperature, pressure and hazardous area conditions.
Materials and Customization
Material selection depends on heating medium, working temperature, pressure, corrosion level, hazardous-area requirement and service environment.
For normal air, nitrogen, water or oil heating, carbon steel or SS304 can be used for common applications. For corrosive chemical liquids, humid gas or special process media, SS316L or selected corrosion-resistant alloy materials can be considered.
For high-temperature air, gas or thermal oil heating, SS310S, Incoloy 800, Incoloy 840 or other high-temperature alloy materials may be selected according to actual operating conditions.
Customization options include:
- Heating power
- Explosion-proof terminal box
- Temperature class
- Heating medium
- Working pressure
- Flange standard
- Material selection
- Temperature sensor position
- Control cabinet type
- Safety interlock logic
- Skid-mounted system integration
- Project documentation
Control System
The explosion-proof electric heater can be supplied with a local explosion-proof control box, remote-mounted control cabinet or complete automatic control system depending on the hazardous-area layout and process requirement.
Control options can include:
- Outlet temperature control
- Heater shell temperature monitoring
- High-limit temperature protection
- Heating power step control
- SCR / thyristor power regulation
- PID closed-loop control
- Flow or level interlock
- Pressure monitoring
- Local and remote operation
- Alarm and shutdown logic
- Signal interface with customer PLC or DCS system
Safety Protection
Explosion-proof heating applications require reliable protection against overheating, abnormal pressure, insufficient flow, low liquid level, electrical failure and unsafe operation in hazardous areas.
Available safety protection options include:
- High-limit temperature protection
- Heater surface temperature monitoring
- Outlet temperature monitoring
- Flow switch or differential pressure interlock
- Low-liquid-level protection for liquid or tank heating
- Pressure transmitter or pressure switch
- Overload, short-circuit, leakage and grounding protection
- Emergency stop
- Explosion-proof terminal box and wiring entry
- Explosion-proof or remote-mounted control cabinet
- System interlock with pump, fan, valve or customer control system
Typical Applications
Explosion-proof electric heaters are used in hazardous industrial environments where safe electric heating, temperature monitoring and safety interlock protection are required.
Oil and gas facilities
Used for hazardous-area process heating, oil heating, gas heating and heating systems in oil and gas production or processing sites.
Petrochemical plants
Provides customized explosion-proof heating for process liquids, gases, tanks, pipelines and circulation systems.
Chemical processing
Can be engineered for hazardous-area chemical liquid heating, process gas heating and temperature-controlled production systems.
Hazardous-area liquid heating
Applied to thermal oil, crude oil, heavy oil, water, chemical liquid and selected process fluid heating applications.
Explosion-proof gas heating
Used for nitrogen, process gas, flue gas, exhaust gas and special industrial gas heating in hazardous areas.
Explosion-proof duct heating
Supports hazardous ventilation systems, process air heating, duct air heating and selected low-pressure gas heating applications.
Tank farm heating
Used for storage tank heating, temperature maintenance, freeze protection and viscosity reduction in hazardous tank areas.
Offshore and marine systems
Can be customized for offshore platforms, shipboard auxiliary systems and marine hazardous-area heating applications.
Skid-mounted heating packages
Can be integrated with pumps, valves, instruments, control cabinets and skid frames for complete hazardous-area heating packages.
VOC and environmental systems
Supports selected hazardous-area exhaust treatment, process air temperature control and environmental protection systems.
Industrial process heating
Provides custom electric heating for hazardous manufacturing, processing and temperature control applications.
Explosion-proof control systems
Heater body, terminal box, sensors, instruments and control system can be integrated according to site requirements.
How to Select the Right Explosion-Proof Heater
To design a suitable explosion-proof electric heater, please provide the following process, hazardous-area and installation information when available.
1. Heating medium
Provide whether the heater will be used for air, nitrogen, process gas, thermal oil, crude oil, heavy oil, water, chemical liquid or another process medium.
2. Hazardous-area requirement
Confirm the hazardous-area classification, gas group, temperature class and any project-specific explosion-proof requirement.
3. Inlet and outlet temperature
Provide the inlet temperature, required outlet temperature and allowable temperature tolerance for the process.
4. Flow rate or tank volume
For inline or circulation heating, provide flow rate. For tank heating, provide tank volume and liquid level range.
5. Working pressure
Provide normal working pressure, maximum design pressure and any pressure fluctuation in the system.
6. Required heating power
Provide required heating power if already calculated. If not, Xiangyuan Machinery can calculate it according to process conditions.
7. Medium composition
Let us know whether the medium contains corrosive components, moisture, dust, oil mist, flammable components or suspended solids.
8. Installation method
Confirm whether inline, flanged, immersion, duct-mounted, tank-mounted, circulation or skid-mounted design is required.
9. Material requirement
Material selection should be reviewed according to medium, temperature, pressure, corrosion level and hazardous-area environment.
10. Voltage and frequency
Confirm supply voltage, phase and frequency, such as 380V 3-phase 50Hz or 480V 3-phase 60Hz.
11. Control method
Confirm whether PID control, SCR power regulation, staged control, PLC control, remote control or DCS interface is required.
12. Safety protection requirement
Confirm requirements for over-temperature protection, flow interlock, pressure monitoring, level protection, leakage protection and emergency stop.
13. Terminal box and cable entry
Confirm terminal box position, cable entry direction, wiring method and whether explosion-proof cable glands are required.
14. Control cabinet location
Confirm whether the control cabinet will be installed inside or outside the hazardous area, or whether a remote-mounted cabinet is preferred.
15. Documentation requirement
Let us know whether wiring diagrams, inspection records, nameplate information or project documentation are required.
Frequently Asked Questions
Common questions about explosion-proof electric heaters for hazardous-area industrial process heating.
What is an explosion-proof electric heater?
It is an industrial electric heater configured for process environments where flammable gases, vapors or hazardous atmospheres may be present.
What heating media can be used?
Explosion-proof heater configurations can be customized for air, nitrogen, process gas, thermal oil, crude oil, heavy oil, water, chemical liquids and selected process fluids.
What explosion-proof design options are available?
Options may include an explosion-proof terminal box, junction box, cable entry, temperature sensors, remote-mounted control cabinet or a complete heating system configuration.
What information is needed for selection?
Heating medium, hazardous-area classification, gas group, temperature class, flow rate or tank volume, pressure, temperature, voltage and control requirements are normally needed.
Can the heater be customized for different hazardous-area classifications?
Yes. The configuration can be reviewed according to the site classification, gas group, temperature class and project requirements. Certification claims should only be used when confirmed for the specific project.
Why Choose Xiangyuan Machinery
Xiangyuan Machinery provides custom industrial electric heaters, heating elements and complete electric heating systems for demanding process and hazardous-area applications. Each explosion-proof electric heater can be engineered according to real working conditions, hazardous-area requirements, medium properties, temperature class, pressure level, material compatibility, installation layout, control logic and safety requirements.
Thermal & Material Engineering
Custom design according to hazardous-area requirements Explosion-proof terminal box and control cabinet options
Flexible Mechanical Arrangement
Air, gas, liquid, tank, duct and circulation heating designs available
Control & Safety Integration
Material selection for different media and temperatures Integrated safety interlock and shutdown logic
Complete Project Supply
Ex db IIC T1-T6 Gb options available where applicable Factory inspection before delivery
Need a custom explosion-proof electric heater?
Tell us your heating medium, hazardous-area requirement, temperature class, flow rate or tank volume, inlet temperature, required outlet temperature, working pressure, voltage, installation method and control requirements. Xiangyuan Machinery can customize explosion-proof electric heaters for hazardous-area air, gas, liquid, tank, duct and process heating applications.
