Explosion-Proof Electric Air Heater
Custom explosion-proof electric air heating equipment for process air, drying and ventilation duties in classified industrial areas.
The Explosion-Proof Electric Air Heater is designed to heat clean air or compatible process air where the installation area requires explosion-proof electrical construction and coordinated airflow, temperature and shutdown interlocks.
Heating power, airflow, outlet temperature, pressure drop, housing, element material, terminal enclosure, control cabinet and protection functions can be engineered according to the process and confirmed hazardous-area classification.
Product Overview
The Explosion-Proof Electric Air Heater is an industrial air-heating unit for classified areas in oil, gas, chemical and related plants. It can be used in process-air lines, drying systems, ventilation sections or equipment packages where explosion-proof electrical construction is required.
A typical unit includes a heater housing or pressure-bearing shell, electric element assembly, explosion-proof terminal box, temperature sensors, insulation, inlet and outlet connections and mounting supports. The control cabinet can be located in a suitable area or supplied in an appropriate design according to project scope.
For hazardous-area applications, site classification, gas group, temperature class, maximum allowable surface temperature, ambient conditions and terminal-enclosure requirements are treated as core design inputs.
The heater can be supplied as a standalone unit, with a matched control cabinet, or as part of an integrated process-air heating package.
Key Features
The Explosion-Proof Electric Air Heater can be engineered around the actual medium, duty, installation and control requirements of the project.
Hazardous-Area Engineering
Design inputs include site zone, gas group, temperature class and ambient conditions.
Explosion-Proof Terminal Enclosure
Terminal box selection and cable entry arrangement are matched to the confirmed project requirement.
Airflow Interlock
Heater permission can require fan status, airflow or differential-pressure confirmation.
Temperature-Class Control
Element loading, sensors and independent cutoff are coordinated with the required maximum temperature.
Custom Air-Heating Duty
Heating power is calculated from airflow, inlet temperature and target outlet temperature.
Certified Explosion-Proof Products
Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb. The final configuration is selected according to the confirmed hazardous-area requirements.
Typical Technical Parameters
The following parameters are for reference only. Final design is confirmed according to the operating medium, temperature, dimensions and project requirements.
| Parameter | Customizable Range or Options |
|---|---|
| Product Name | Explosion-Proof Electric Air Heater |
| Heating Medium | Air, ventilation air, process air, nitrogen or compatible process gas after composition review |
| Heating Power | Custom engineered according to airflow and temperature rise |
| Temperature Range | Customized according to process and required temperature class |
| Working Pressure | Low-pressure duct or pressure-bearing design according to installation |
| Explosion-Proof Configuration | Explosion-proof terminal box, cable entries and matched electrical configuration; remote-mounted control cabinet or local explosion-proof control arrangement optional |
| Housing Material | Carbon steel, SS304, SS316L or selected material |
| Heating Element Sheath Material | SS304, SS310S, Incoloy 800/840 or selected high-temperature and corrosion-resistant alloy |
| Terminal Enclosure | Explosion-proof terminal box and cable entry arrangement as applicable |
| Control Method | PID temperature control, SCR/thyristor power regulation, staged control, PLC/HMI or DCS interface |
| Protection Options | Independent over-temperature cutoff, confirmed-airflow or fan interlock, pressure or differential-pressure monitoring, phase-loss and phase-sequence protection, ground-fault protection, protective grounding and emergency stop |
| Optional Design | Remote control cabinet, HMI, differential-pressure instrument and insulated housing |
| Certification | Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb. |
Structure, Materials, Control and Safety
Structure of the Heater

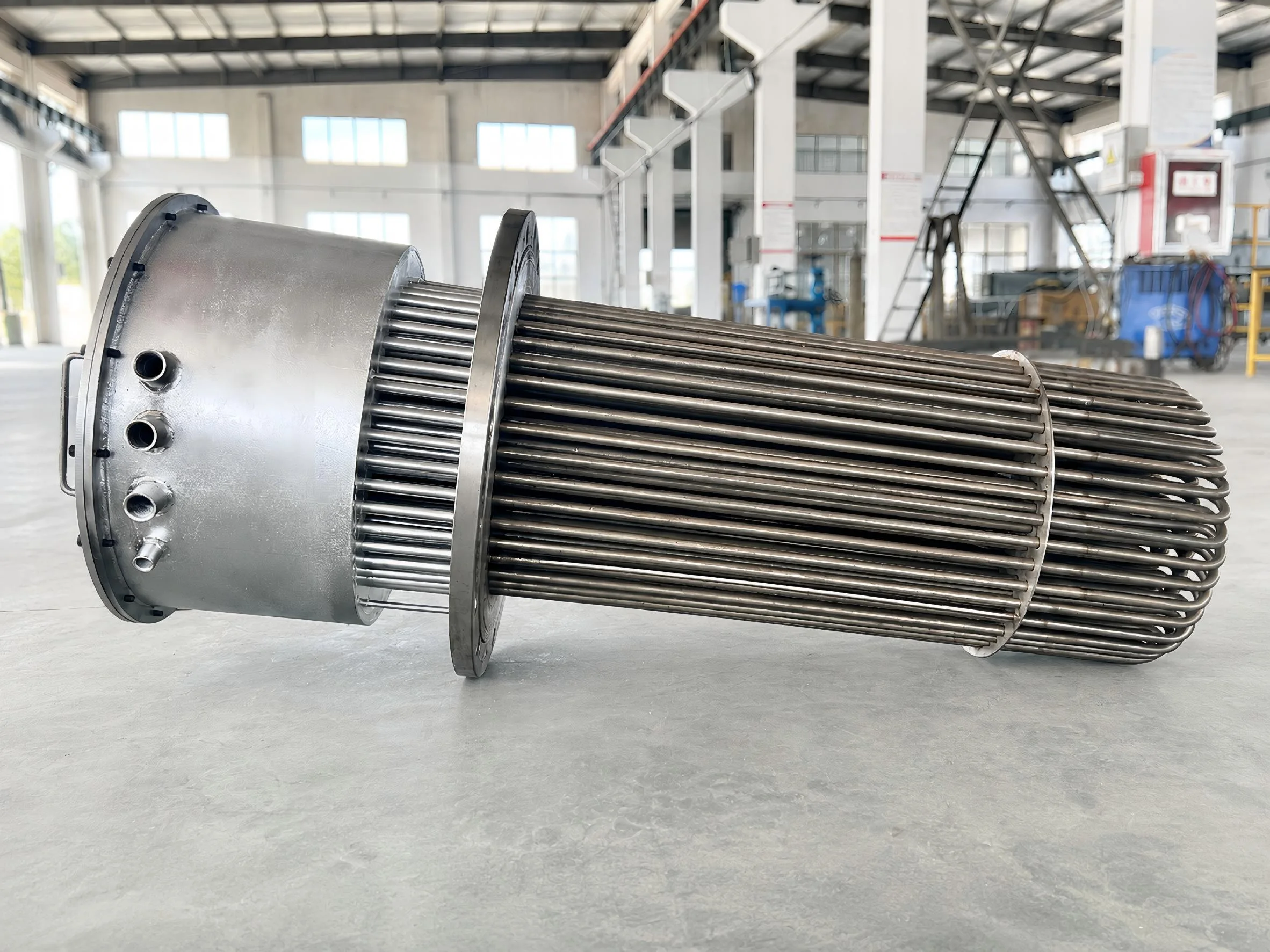

The heater can use a duct-type casing or a cylindrical inline shell depending on airflow and pressure. The electric heating elements are mounted inside the flow path and connected to an explosion-proof terminal enclosure.
The structure can include fan or duct transitions, element support plates, temperature-sensor ports, differential-pressure connections, insulation, cladding and maintenance supports. Cable entries and terminal layout are arranged for the site installation.
The enclosure, element spacing and sensor positions are coordinated with airflow and the required temperature class. The final arrangement is confirmed from the hazardous-area documents and process duty.
Materials and Customization

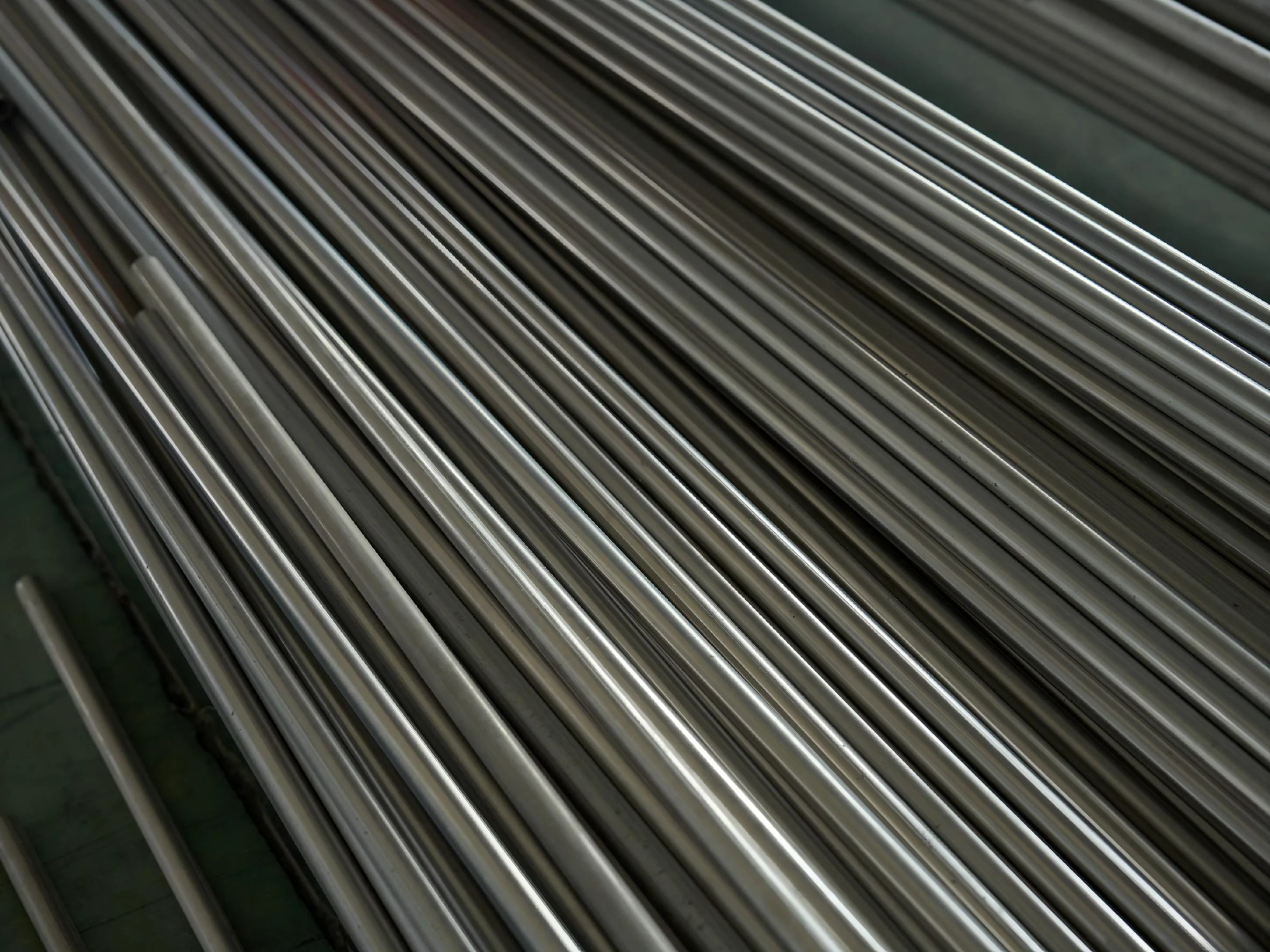

Housing and element materials are selected from air composition, humidity, corrosive components, outlet temperature and site environment. Carbon steel, SS304, SS316L, SS310S, Incoloy 800/840 and selected alloys can be considered where suitable.
Explosion-proof terminal enclosure and cable-entry components are selected according to the confirmed electrical and area-classification requirements. Material options do not replace the need to confirm the temperature class.
The heater can be customized in power, connection, housing shape, element arrangement, insulation, mounting and maintenance-removal direction.
Control System

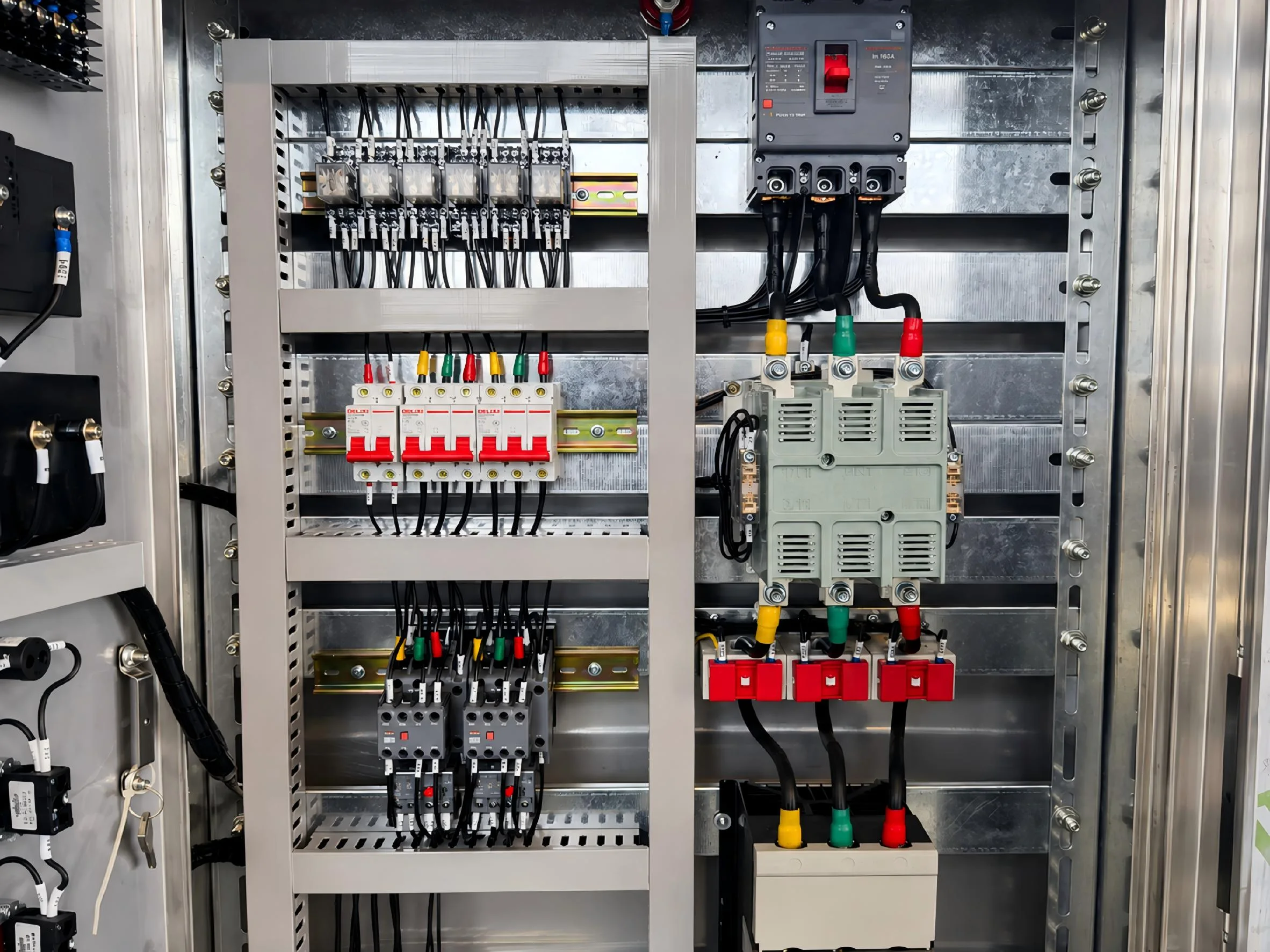

PID temperature control, SCR power regulation, staged control, PLC logic and HMI can be supplied according to project needs. Control equipment can be installed in a safe area or designed according to the confirmed installation conditions.
Outlet-air temperature is normally the main control signal. Inlet temperature, element sheath temperature, airflow, fan status and differential pressure can be monitored.
The control logic can include fan-running confirmation, airflow permissive, purge or ventilation sequence, staged heater energization, outlet-temperature control, independent high-limit shutdown and delayed fan stop after heater de-energization. The control cabinet can be remotely installed outside the hazardous area when required.
Safety Protection

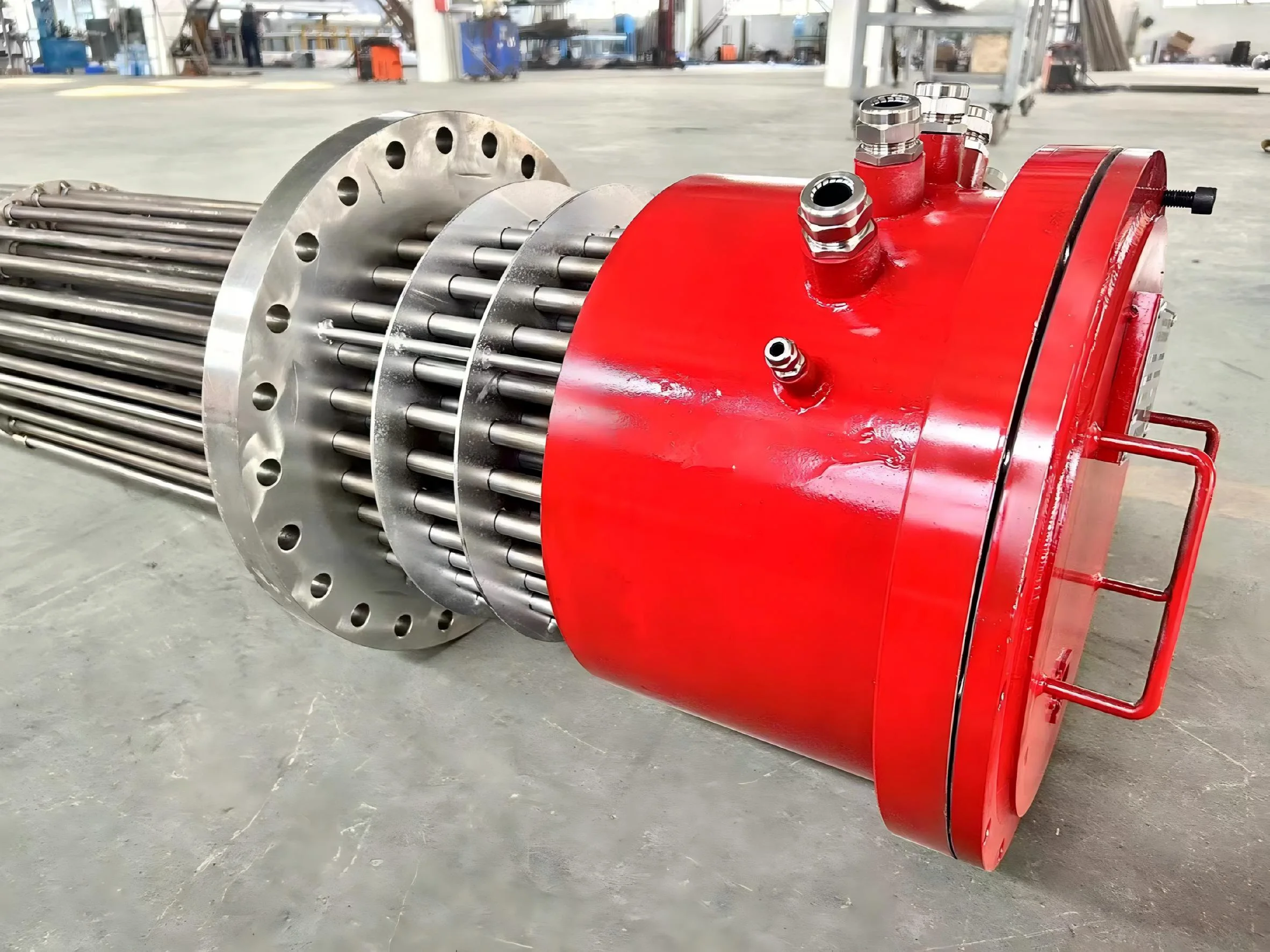

Typical protection can include independent over-temperature protection, confirmed-airflow or fan interlock, pressure or differential-pressure monitoring, phase-loss and phase-sequence protection, ground-fault protection, protective grounding and emergency stop.
The heater must not be energized until the required airflow is confirmed. The control sequence should prevent operation with a stopped fan, closed damper or blocked flow path and should coordinate heater shutdown with the fan or upstream process equipment.
Relevant explosion-proof products have obtained Chinese explosion-proof certification Ex db IIC T1–T6 Gb. The exact configuration and marking are confirmed according to the project specification and hazardous-area classification.
Typical Applications
Typical applications for the Explosion-Proof Electric Air Heater include the following hazardous-area process-air heating duties. Final selection should be based on confirmed process and site data.
Oil and Gas Facilities
Process-air heating in classified oilfield, gathering or treatment areas.
Chemical Plants
Heating compatible air streams in hazardous process sections.
Explosion-Proof Drying
Air heating for selected drying equipment installed in classified areas.
Ventilation Air Heating
Heating controlled ventilation or make-up air where explosion-proof construction is required.
Process Equipment Packages
Integration into hazardous-area skids and production equipment.
Purge and Inerting Support
Heating compatible air or purge streams where process conditions permit.
Coating and Solvent Areas
Customized air heating for classified industrial zones after safety review.
Outdoor Industrial Systems
Packaged air heating for demanding outdoor and hazardous environments.
How to Select the Right Explosion-Proof Electric Air Heater
Please provide the following information so Xiangyuan Machinery can select and design the Explosion-Proof Electric Air Heater for the actual operating conditions.
Airflow
Provide normal, minimum and maximum airflow.
Inlet / Outlet Temperature
State operating range and target temperature.
Working Pressure
Provide duct pressure or pipeline design pressure and allowable pressure drop.
Air Composition
List moisture, dust, solvent vapor or corrosive components.
Hazardous-Area Requirement
Provide the site classification, gas group, temperature class, ambient temperature, required cable entry and preferred control-cabinet location.
Gas Group
State required gas group and project standard.
Temperature Class
Provide required T-class or maximum surface-temperature limit.
Ambient Conditions
State minimum/maximum ambient temperature and outdoor conditions.
Power Supply
Provide voltage, phase and frequency.
Control Location
State safe-area or classified-area cabinet location and interface.
Cable Entry
Provide cable size, entry direction and gland requirements.
Documentation
State certificate, drawing, inspection and test requirements.
Frequently Asked Questions
Common questions about Explosion-Proof Electric Air Heater selection, customization and industrial use.
What is an Explosion-Proof Electric Air Heater?
What explosion-proof certification is available?
Can the heater be used in a duct or pressure-bearing pipeline?
What interlocks are normally required?
Must the control cabinet be installed in the hazardous area?
Why Choose Xiangyuan Machinery
Xiangyuan Machinery designs and manufactures industrial electric heaters, heating elements and control systems for customized process conditions. The Explosion-Proof Electric Air Heater is engineered around the customer’s medium, thermal duty, installation limits and safety requirements.
Thermal & Material Engineering
Thermal design based on airflow, inlet temperature, target outlet temperature and operating duty. Materials and element loading are selected according to gas composition, temperature and site conditions.
Flexible Mechanical Arrangement
Duct-type or pressure-bearing inline construction, connection, mounting, terminal-box orientation and maintenance access can be customized.
Control & Safety Integration
PID, SCR, staged control, PLC/HMI and DCS interfaces, with fan/airflow, differential-pressure and independent over-temperature interlocks as required.
Complete Project Supply
Supply can include the heater, explosion-proof terminal enclosure, remote or matched control cabinet, instruments and project documentation according to scope.
Tell Us Your Hazardous-Area Air Heating Conditions
Send the medium, flow rate, inlet and outlet temperatures, operating pressure, power supply, installation dimensions, control method and site requirements. Xiangyuan Machinery will prepare a suitable technical proposal and quotation.
