ELECTRIC LIQUID & PROCESS FLUID HEATERS
Marine Electric Fresh Water Heater
Custom marine electric fresh water heating equipment for shipboard service and auxiliary water systems.
The Marine Electric Fresh Water Heater is designed to heat or maintain fresh water temperature in shipboard service, machinery-space and auxiliary systems where compact installation, marine power supply and reliable control are required.
Heating power, water flow or tank volume, inlet and outlet temperatures, operating pressure, marine power supply, material, compact installation layout, control method and class-society requirements can be reviewed for each vessel or offshore project.
Product Overview

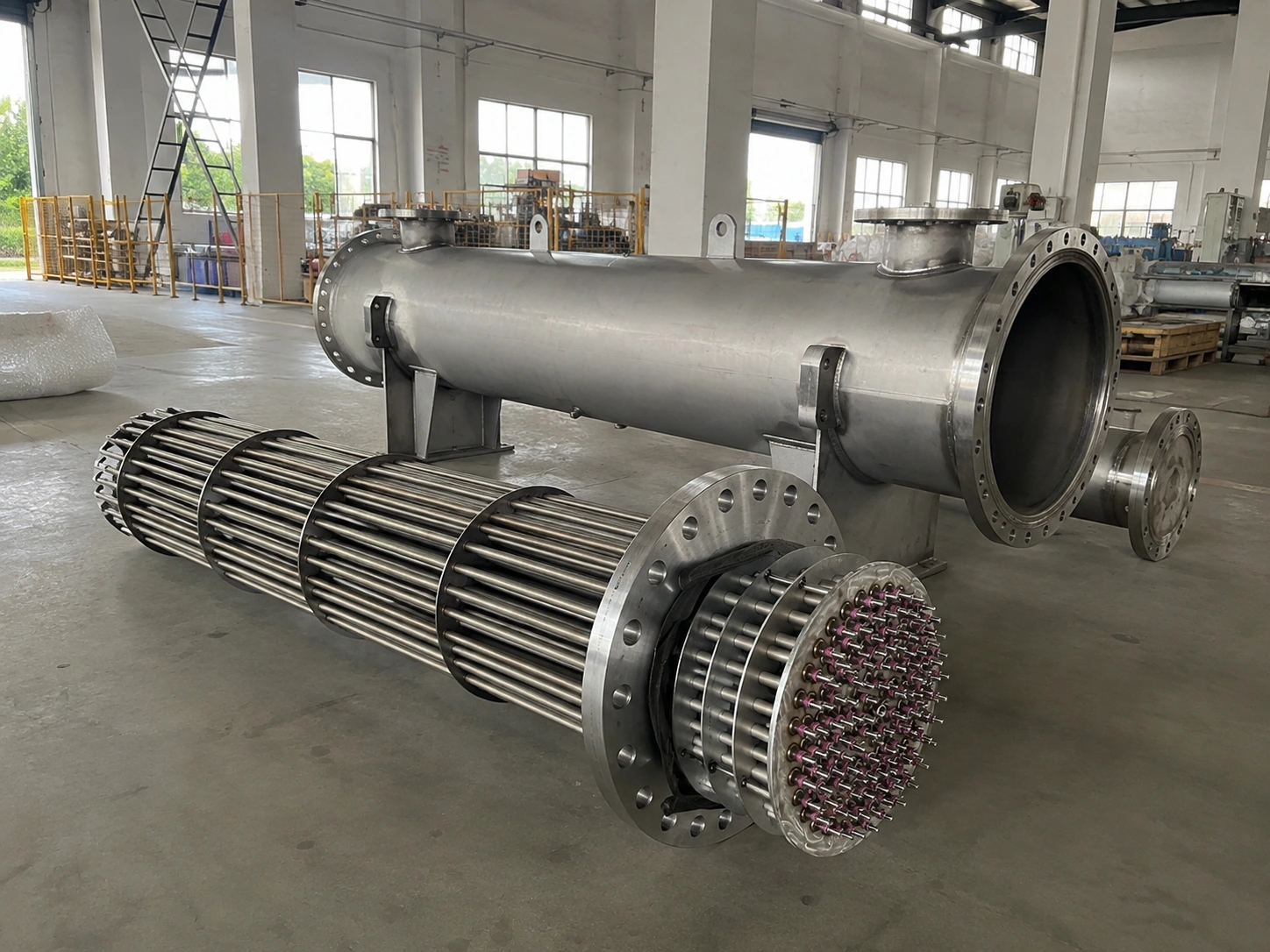

The Marine Electric Fresh Water Heater is intended for shipboard or offshore fresh-water heating, circulation and auxiliary process service. Depending on the project, it can be designed as an inline heater, circulation heater or packaged unit with control cabinet, pump, valves and instruments.
A typical unit includes a pressure-bearing shell or tank, electric heating elements, terminal enclosure, insulation, temperature sensors, safety cutoff, inlet and outlet connections, drain and mounting supports.
Unlike a domestic water heater, the marine unit is selected around vessel voltage and frequency, machinery-space temperature, vibration, corrosion, mounting direction, available space, pressure and technical-document requirements.
Xiangyuan Machinery can supply the heater only, the heater with a local control box, or a coordinated package including valves, instruments and a mounting frame.
Marine selection should consider available installation space, vibration, humidity, salt-laden atmosphere, power supply, piping layout, maintenance access and the vessel’s required documentation or class-society approval scope. Class approval is project-specific and must be confirmed before quotation and final design.
Key Features
The Marine Electric Fresh Water Heater can be engineered around the actual medium, duty, installation and control requirements of the project.
Marine Electrical Supply
Voltage, phase and frequency can be selected for the vessel power system, including project-specific 50 Hz or 60 Hz supplies.
Compact Marine Installation
Heater orientation, connection direction, control-cabinet position and maintenance clearance can be customized for limited machinery-space layouts.
Pressure-Bearing Construction
Shell, flange and fittings are selected for the specified fresh-water system pressure.
Corrosion-Resistant Materials
SS304, SS316L and suitable element materials can be selected for fresh-water service.
Temperature and Safety Control
Operating thermostat or sensor plus independent high-temperature cutoff can be provided.
Class Requirement Review
Required NK, ABS, DNV, LR, BV, CCS or other class-society documentation must be confirmed for the specific project before quotation.
Typical Technical Parameters
The following parameters are for reference only. Final design is confirmed according to the operating medium, temperature, dimensions and project requirements.
| Parameter | Customizable Range or Options |
|---|---|
| Product Name | Marine Electric Fresh Water Heater |
| Heating Medium | Shipboard fresh water, technical water or another compatible marine water service after water-quality review |
| Heating Power | Custom engineered from flow/volume and temperature rise |
| Temperature Range | Customized according to shipboard service requirement |
| Working Pressure | According to vessel system and design specification |
| Installation | Inline circulation, tank/vessel or flanged immersion arrangement |
| Power Supply | Marine power supply according to project voltage, phase and frequency, including 50 Hz or 60 Hz systems |
| Shell / Wetted Material | SS304, SS316L or selected material according to water quality, chloride, pressure and marine environment |
| Heating Element Sheath Material | SS304, SS316L, Incoloy 800/840 or selected alloy according to water chemistry and watt density |
| Control Method | Thermostat, PID, staged control, PLC or vessel automation interface |
| Protection Options | Independent over-temperature cutoff, minimum-flow or pump interlock, low-level and dry-heating protection where applicable, pressure monitoring, ground-fault protection, protective grounding and emergency stop |
| Class / Documentation | Class-society approval, drawings, inspection records and documentation scope to be confirmed for the specific vessel or project |
| Water Flow / Tank Volume | Inline flow, circulation flow or vessel working volume according to the selected heater arrangement |
Structure, Materials, Control and Safety
Structure of the Heater

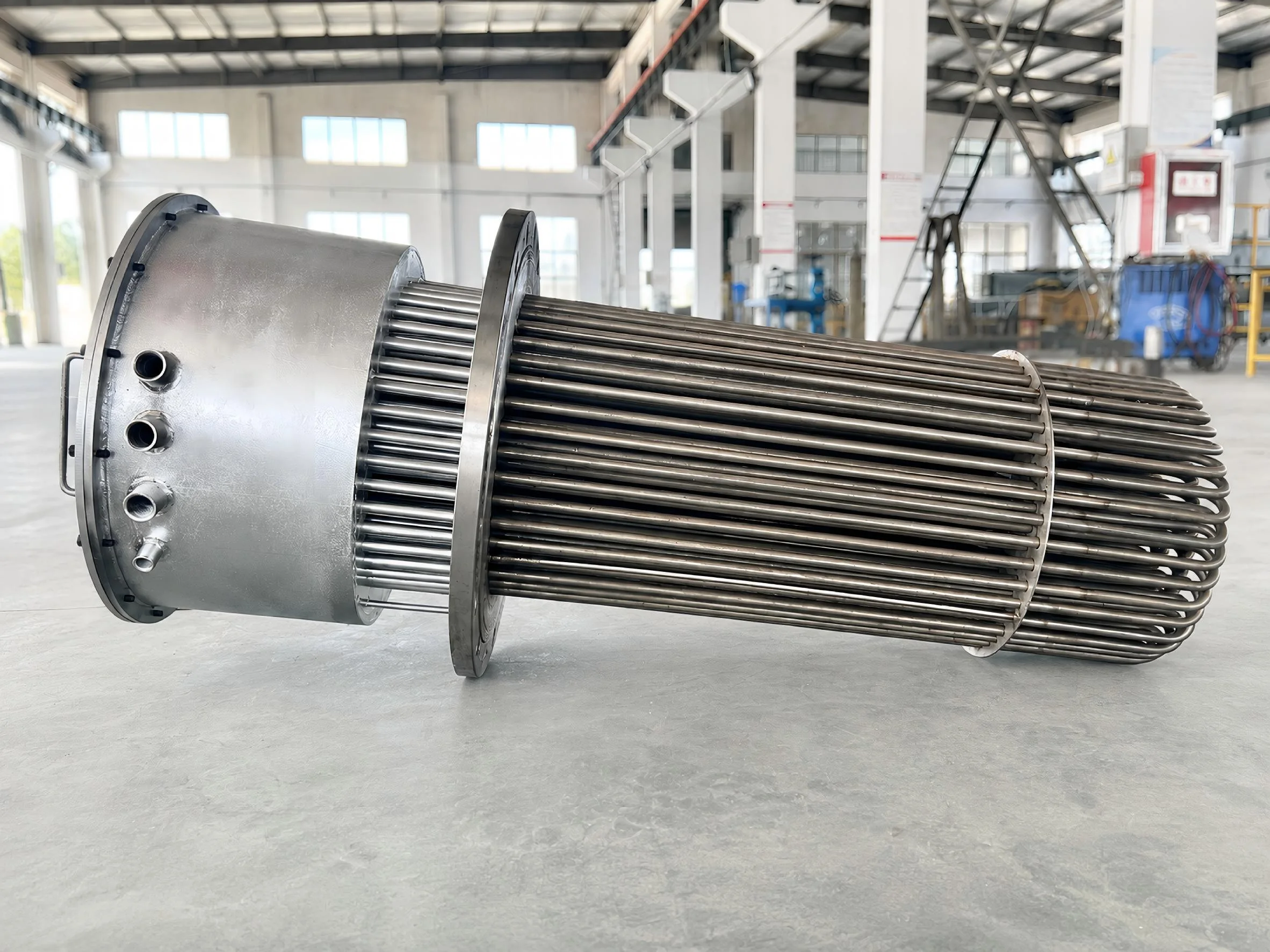

The heater can use a cylindrical inline shell, a compact pressure vessel or a flanged immersion bundle depending on the vessel system. Connections, supports and element-removal direction are arranged for the available machinery-space layout.
The structure can include insulation, external cladding, terminal enclosure, operating temperature sensor, independent safety cutoff, drain, vent, pressure connection and mounting brackets.
For marine installation, vibration, movement, corrosion environment, access and cable routing are considered together with the thermal duty.
Materials and Customization

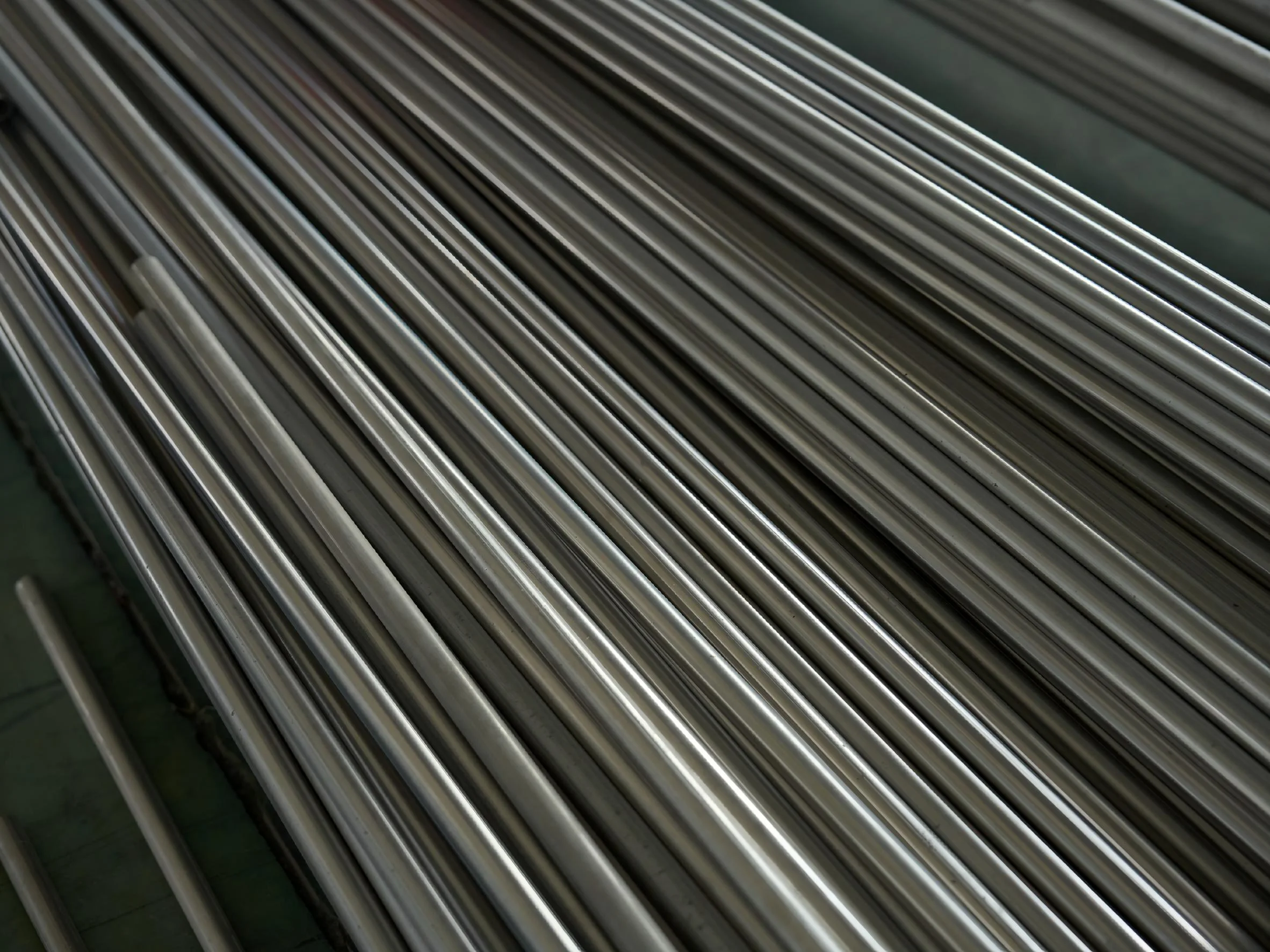

Shell, tank and heating-element materials are selected from water quality, chloride level, pressure, temperature and owner specification. SS304, SS316L and selected alloys can be used where suitable.
Gaskets, fittings, sensors and weld materials are matched to the fresh-water service and operating temperature. External coating or stainless cladding can be supplied according to installation environment.
The unit can be customized in connection standard, flange, element length, mounting orientation, insulation, terminal-box direction and maintenance clearance.
Control System

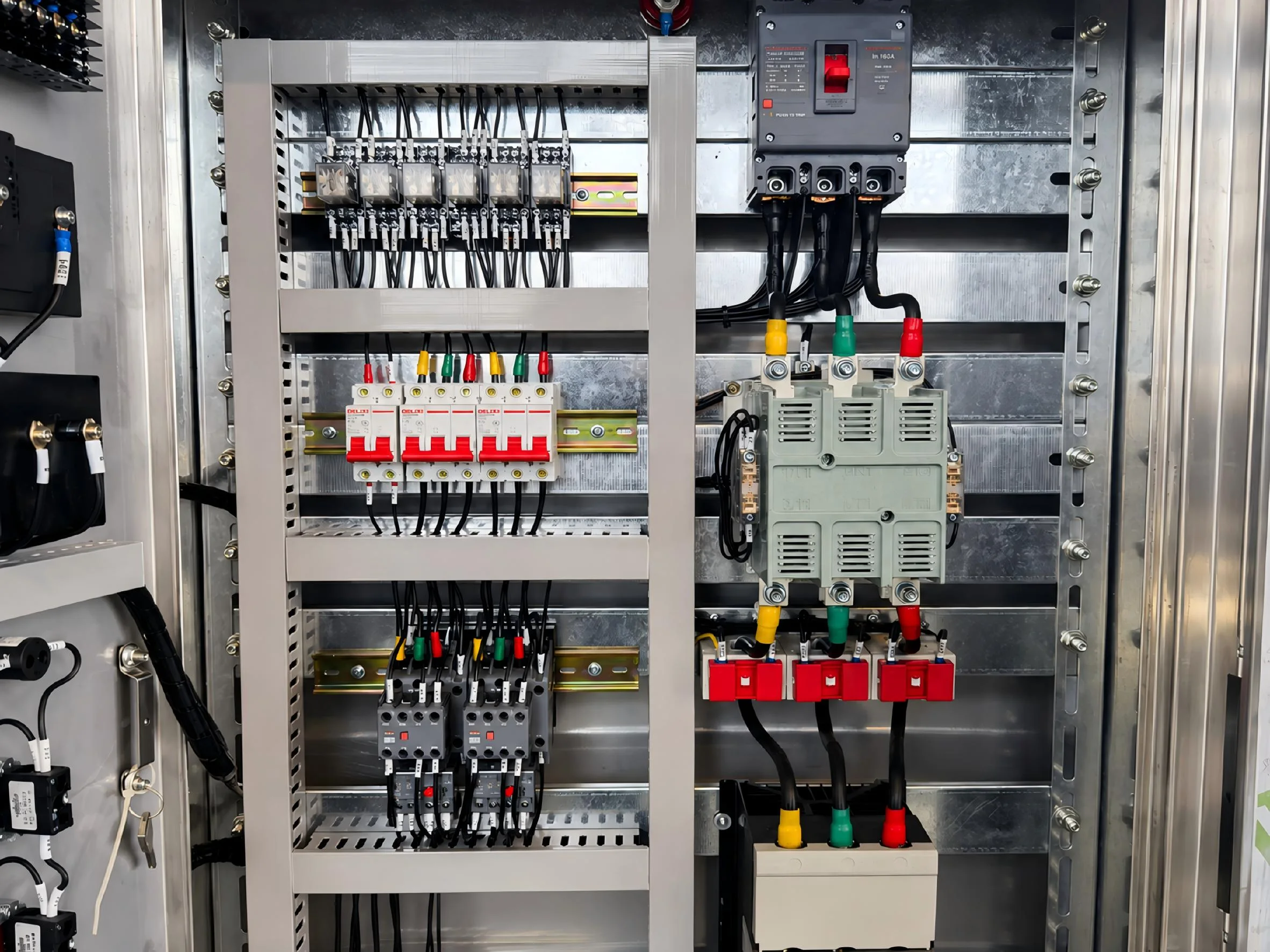

Control options include thermostat control, PID, staged contactor control, SCR, PLC or interface with the vessel automation system. Local temperature indication and alarm contacts can be provided.
Temperature can be controlled from the heater outlet or tank. Independent high-temperature cutoff is recommended as a separate protective function.
Optional interlocks include low level, pump or flow status, pressure alarm, remote start/stop and operating-status feedback according to the vessel control philosophy.
Safety Protection

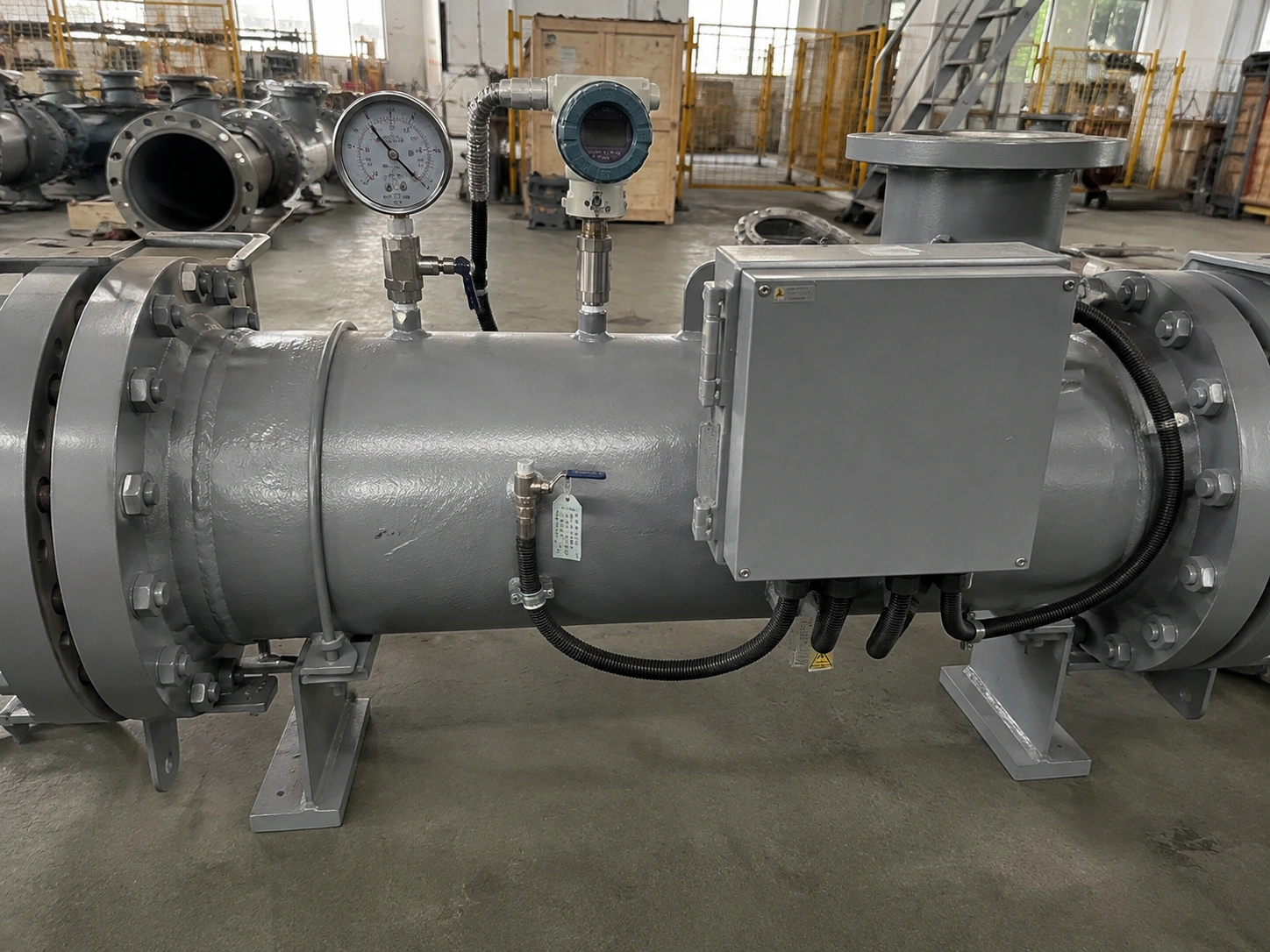

Typical protection includes independent high-temperature cutoff, low-level or dry-heating protection for immersion arrangements, pressure monitoring, ground-fault protection and protective grounding.
The elements must remain wetted during operation. The installation should provide suitable venting, drainage and maintenance access according to the vessel piping layout.
Pressure relief, expansion management, venting and drainage should be coordinated with the complete shipboard water system. Where class-society approval or project-specific marine inspection is required, the applicable rules, drawings, material documents, tests and witness requirements must be confirmed before quotation and production.
Typical Applications
Typical applications for the Marine Electric Fresh Water Heater include the following marine and offshore fresh-water heating duties.
Shipboard Fresh Water Systems
Heating fresh water for machinery-space or auxiliary service.
Engine-Room Auxiliary Systems
Compact water heating around marine machinery and equipment.
Circulation Loops
Inline heating of compatible fresh-water circulation systems.
Service Water Tanks
Immersion or vessel heating for controlled water temperature.
Offshore Platforms
Fresh-water heating for marine and offshore auxiliary systems.
Workboats and Commercial Vessels
Customized water heating for limited-space installations.
Marine Equipment Packages
Integration into shipboard treatment or utility equipment.
Replacement / Retrofit Projects
Custom dimensions and connections for existing vessel systems.
How to Select the Right Marine Electric Fresh Water Heater
Please provide the following information so Xiangyuan Machinery can select and design the Marine Electric Fresh Water Heater for the actual operating conditions.
Vessel Type
State ship, offshore platform or equipment package.
Water Service
Describe fresh-water duty and water quality.
Flow / Volume
Provide flow rate or tank working volume.
Inlet / Target Temperature
State required temperature rise and operating range.
Working Pressure
Provide operating, design and test pressure requirements.
Marine Power Supply
Provide voltage, phase, frequency, available electrical capacity and any vessel-specific power requirements.
Installation Space
Provide GA dimensions, orientation and element-removal clearance.
Connections
State flange/thread standard and nozzle arrangement.
Materials
Provide owner or class material requirements.
Control Interface
Define local control and vessel automation signals.
Class and Documentation
State whether NK, ABS, DNV, LR, BV, CCS or another class approval is required and identify the required certification or inspection scope.
Testing / Documents
List pressure test, electrical test, drawings and records required.
Frequently Asked Questions
Common questions about Marine Electric Fresh Water Heater selection, customization and industrial use.
Is this a domestic household water heater?
Can it be supplied for 440 V, 60 Hz marine power?
What information is needed for selection?
Can it be supplied with a local control box?
Can NK or another class-society certificate be provided?
Why Choose Xiangyuan Machinery
Xiangyuan Machinery designs and manufactures industrial electric heaters, heating elements and control systems for customized process conditions. The Marine Electric Fresh Water Heater is engineered around the customer’s medium, thermal duty, installation limits and safety requirements.
Thermal & Material Engineering
Thermal design based on actual inlet conditions, target temperature and operating duty. Material selection matched to the medium, temperature, pressure and site environment.
Flexible Mechanical Arrangement
Flexible power, connection, installation and maintenance-access arrangements.
Control & Safety Integration
PID, SCR, staged control, PLC, HMI and remote interface options where required. Product-specific temperature, flow, pressure, level or electrical interlocks can be integrated.
Complete Project Supply
Supply scope can include the heater, control cabinet, instruments and related system components. Manufacturing inspection, electrical testing and technical documentation can be prepared according to project scope.
Tell Us Your Marine Fresh Water Heating Conditions
Send the medium, flow rate, inlet and outlet temperatures, operating pressure, power supply, installation dimensions, control method and site requirements. Xiangyuan Machinery will prepare a suitable technical proposal and quotation.
