AIR HEATING ELEMENT
Finned Tubular Heating Element
Custom Finned Heating Elements for Air Heating, Duct Heaters and Drying Equipment
Xiangyuan Machinery manufactures custom finned tubular heating elements for industrial air heating, electric duct heaters, ovens, drying equipment and hot air circulation systems.
By adding metal fins to the tubular heating element surface, the heating element provides a larger heat transfer area and improves heat exchange between the element and moving air. It is suitable for forced-air heating applications where stable heat transfer, compact installation and reliable operation are required.
Product Overview

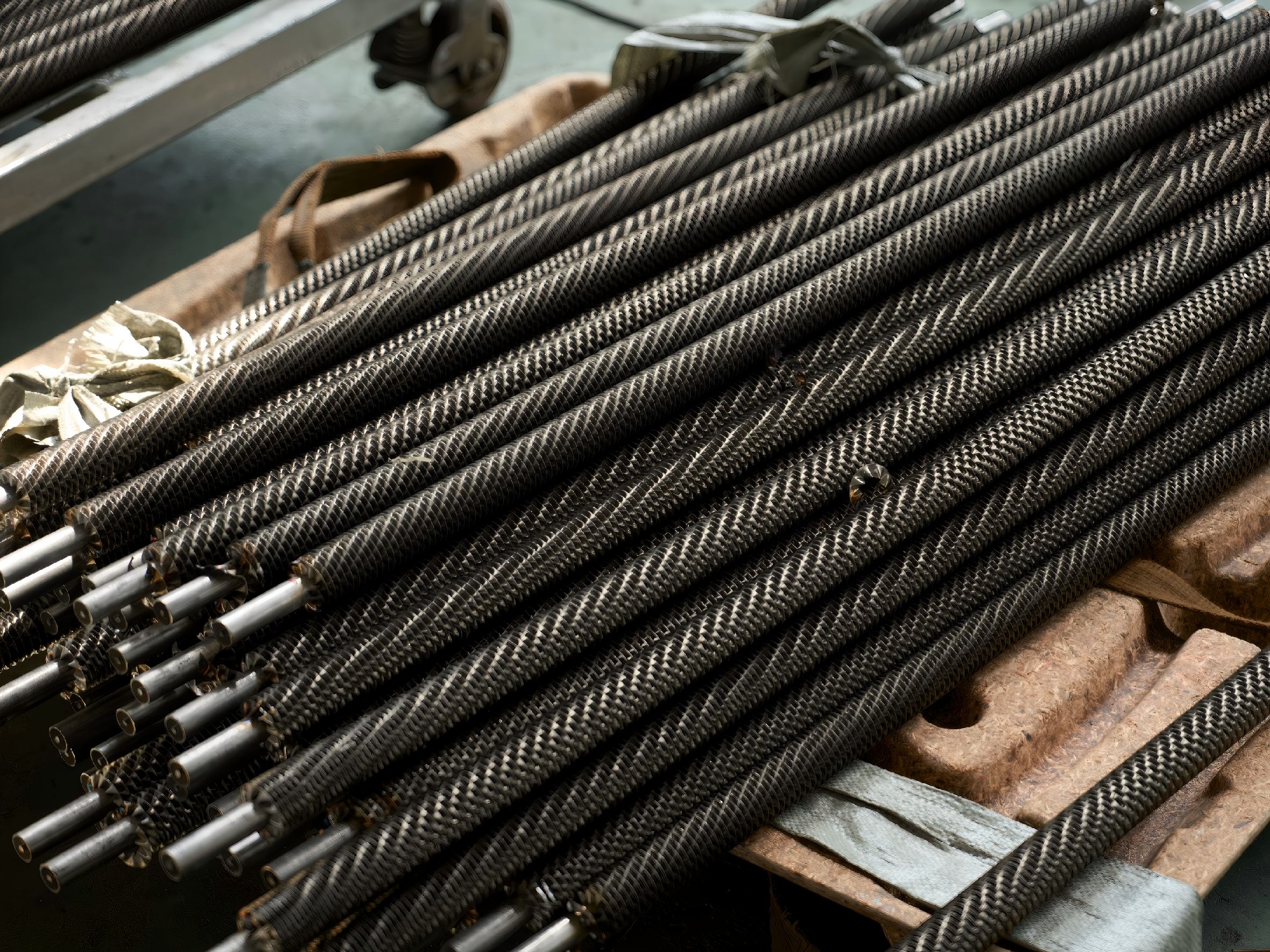

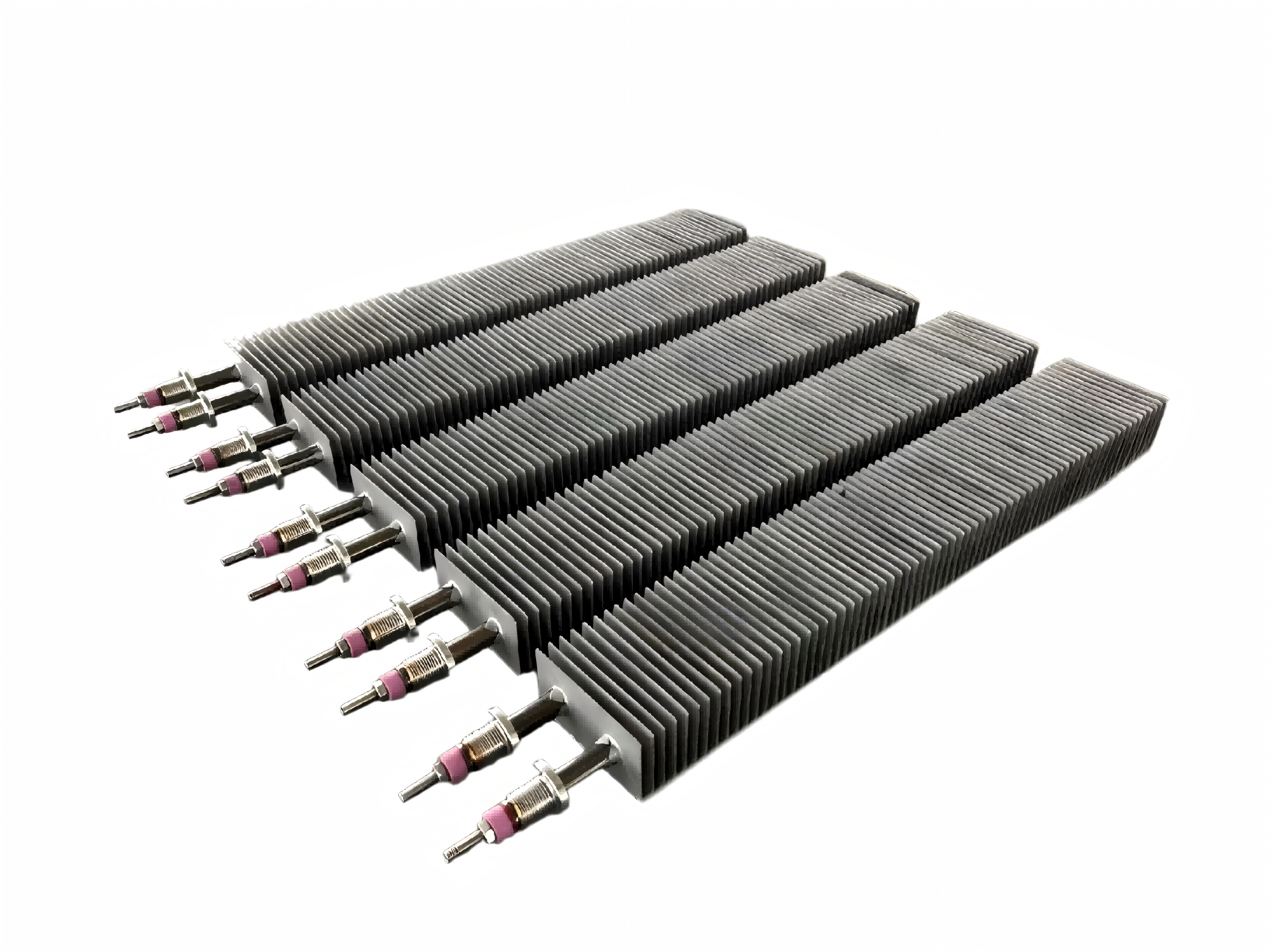

A finned tubular heating element is a tubular electric heating element with metal fins fixed around the outer sheath. The fins increase the heat transfer surface area and allow air to absorb heat more efficiently during forced-air heating.
Compared with a plain tubular heating element, a finned design is more suitable for air ducts, ovens, dryers, hot air circulation systems and other equipment where air passes across the heating element surface.

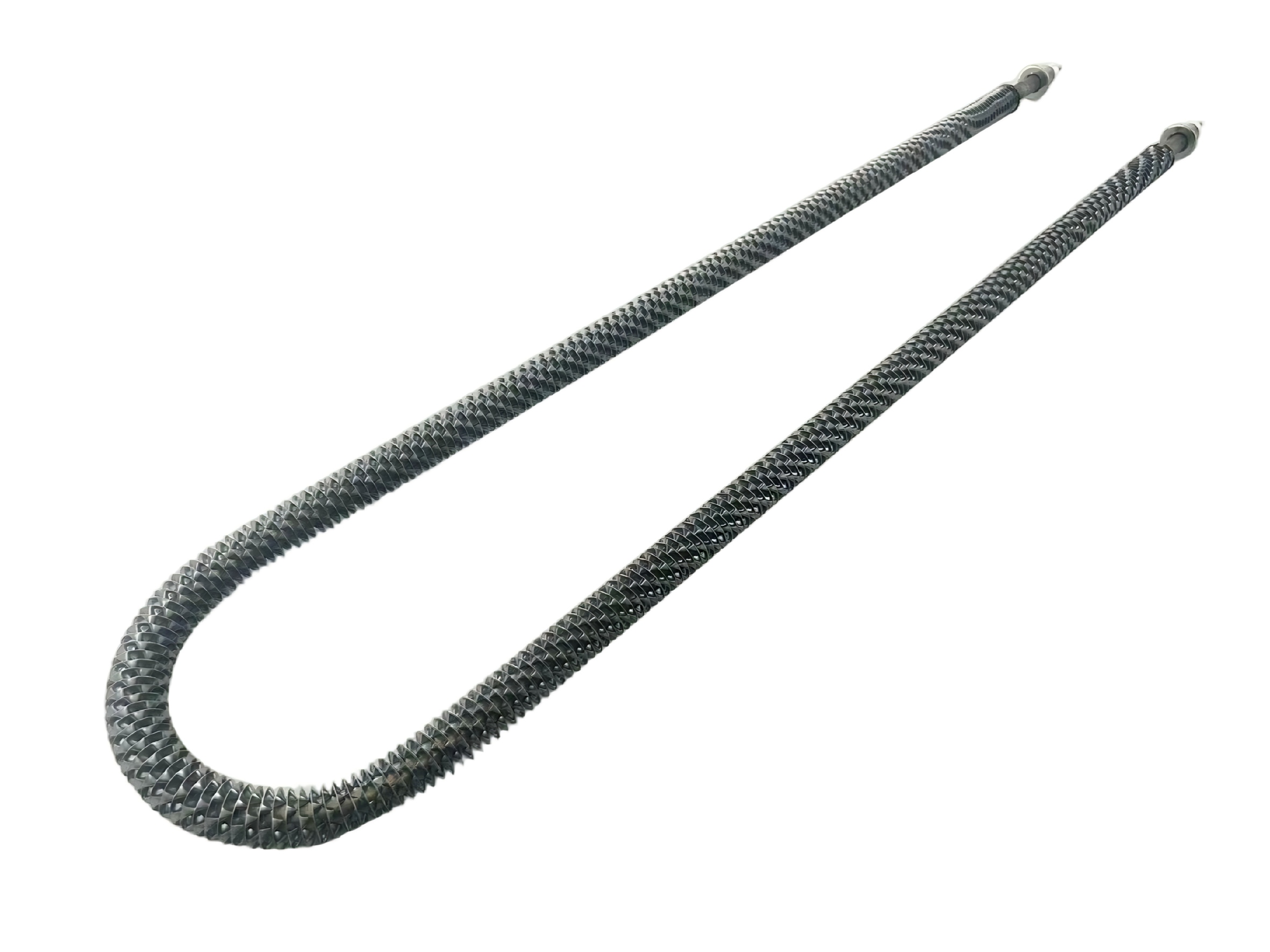

The element can be manufactured in straight, U-shaped, W-shaped or customized shapes according to the installation space, airflow direction, mounting method and required heating power.
Key Features
Increased Heat-Transfer Area
Metal fins increase the external surface area for forced-air and circulation-air heating.
Custom Element Shape
Straight, U-shaped, W-shaped and drawing-specific configurations can be manufactured where forming conditions permit.
Custom Fin Pitch and Fin Height
Fin spacing and dimensions can be selected according to airflow, temperature, pressure drop and available installation space.
Sheath and Fin Material Options
Stainless steel, carbon steel and selected alloy combinations can be evaluated according to temperature and corrosion conditions.
Selectable Watt Density
Surface loading is selected according to airflow, element temperature and heat-transfer conditions.
Cold-Zone Customization
Unheated lengths can be arranged near terminals, mounting plates and connection areas.

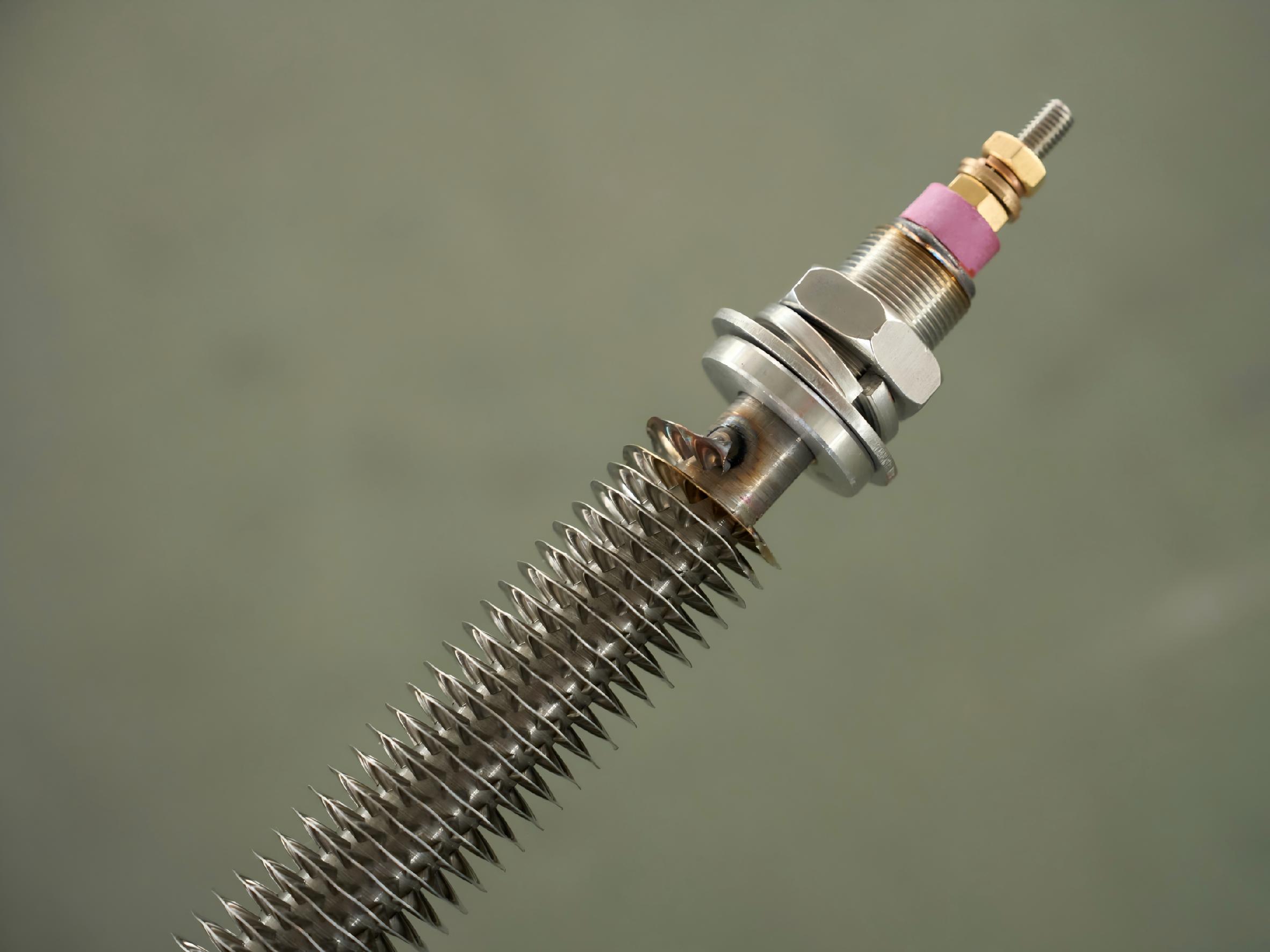

Terminal and Lead Options
Threaded studs, terminal pins, flexible leads and protected terminal arrangements can be supplied.

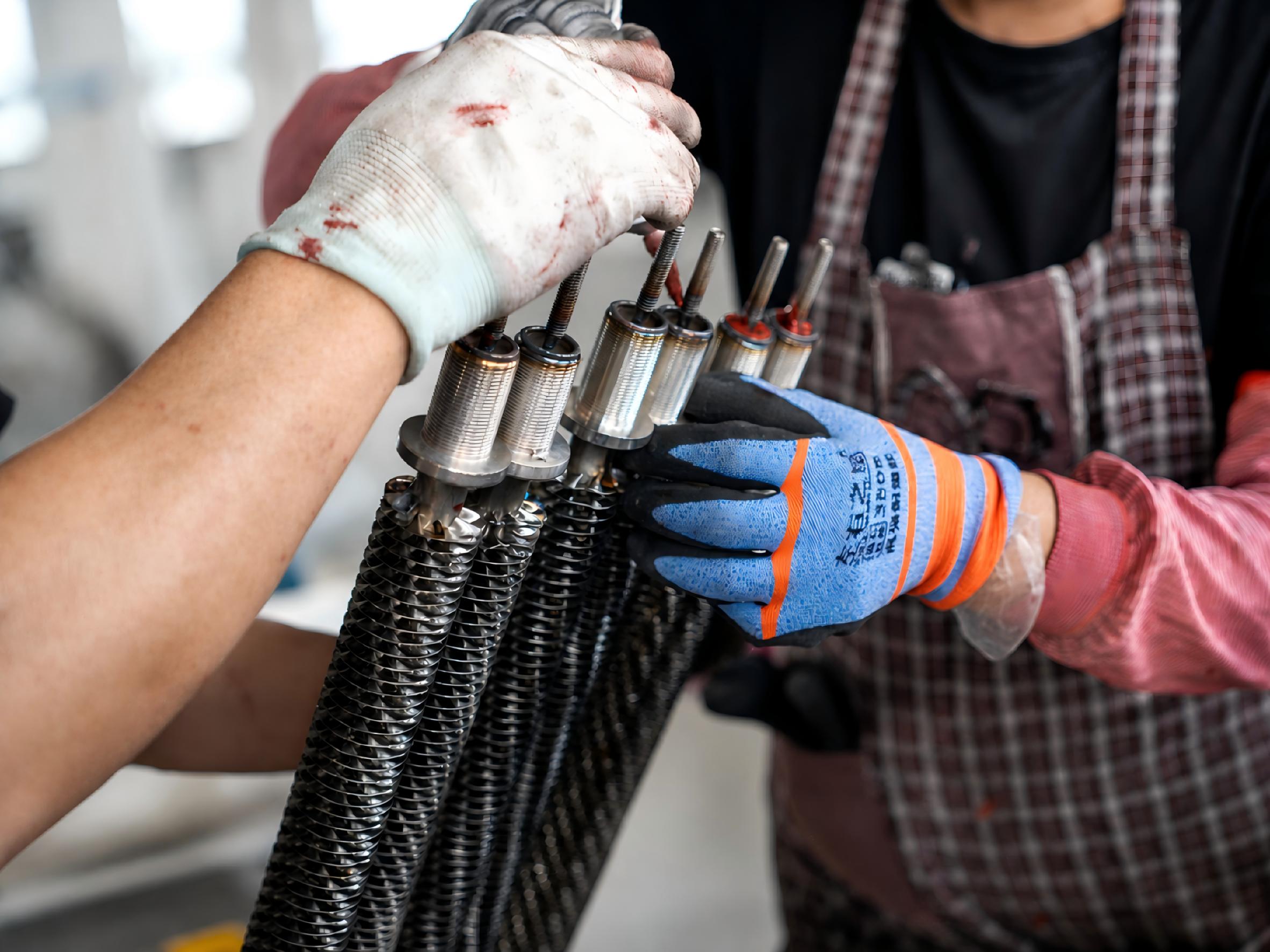

Mounting and Assembly Options
Elements can be supplied individually or assembled on frames, plates, flanges or duct-heater structures.
Drawing-Based Production
Tube diameter, shape, heated length, fin geometry, voltage, power and terminals are confirmed from the approved drawing.
Typical Technical Parameters
The following parameters are for reference only. Final finned tubular heating element design can be customized according to process conditions and project requirements.
| Parameter | Customizable Range / Options |
|---|---|
| Product Name | Finned Tubular Heating Element |
| Heating Medium | Air, hot air, ventilation air and selected low-pressure gas |
| Typical Applications | Electric duct heater, air heater, oven, dryer, hot air circulation system |
| Element Shape | Straight, U-shaped, W-shaped or customized |
| Tube Material | SS304, SS316L, SS310S, Incoloy or customized |
| Fin Material | Stainless steel, carbon steel or customized |
| Tube Diameter | Customized according to heating power and installation space |
| Element Length | Customized according to equipment structure and airflow path |
| Fin Pitch / Fin Height | Customized according to airflow, heat transfer requirement and installation space |
| Voltage | 110V, 220V, 380V, 415V, 480V or customized |
| Power | Customized according to heating capacity and surface load requirement |
| Watt Density | Designed according to air velocity, working temperature and element material |
| Terminal Type | Threaded terminal, lead wire, terminal pin or customized |
| Mounting Method | Threaded fitting, bracket, flange or customized mounting structure |
| Control Method | Used with thermostat, temperature controller, PID control or heater control cabinet |
| Protection | Over-temperature protection, airflow interlock, grounding and leakage protection through the complete heater system |
Structure, Materials, Control and Safety
Structure of the Heating Element
The finned tubular heating element includes:
- Tubular heating element
- Metal fins
- Resistance wire
- Magnesium oxide insulation
- Metal sheath
- Terminal rod
- Mounting structure
- Optional flange or bracket
During operation, heat generated by the internal resistance wire is transferred through compacted magnesium oxide insulation to the metal sheath, then to the fins and finally to the passing air.
Materials and Customization
Material selection depends on air temperature, humidity, corrosion level, airflow condition and installation environment.
Common material options include:
– SS304 tube and stainless steel fins for general industrial air heating
– SS316L tube for humid or mildly corrosive environments
– SS310S or Incoloy tube for higher-temperature applications
– Carbon steel or stainless steel fins according to cost and working conditions
– Customized terminal structure, mounting bracket or flange assembly

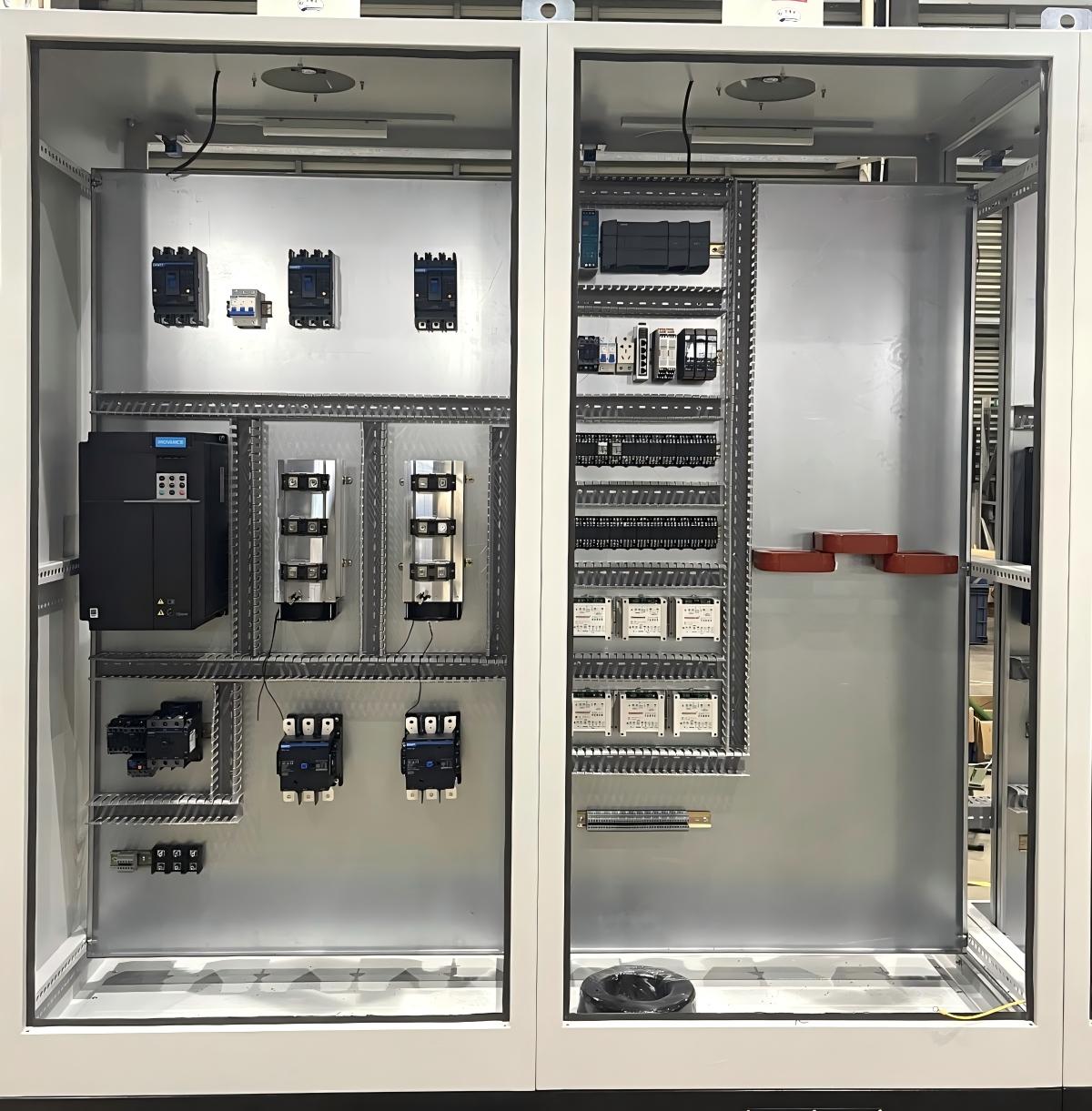

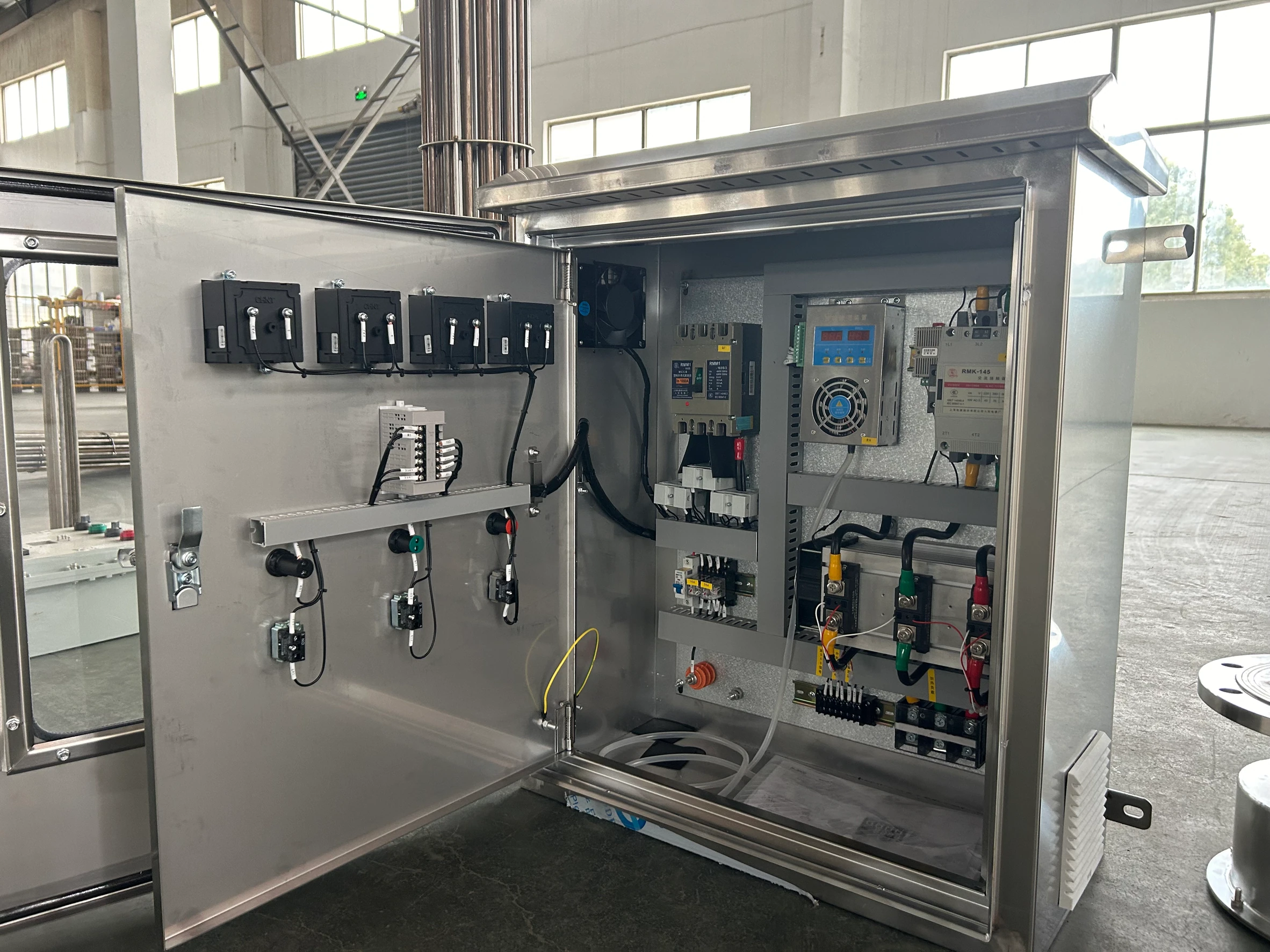

Control System
Finned tubular heating elements are usually installed as part of a complete air heater, duct heater, oven or drying system. Temperature control and electrical protection are normally configured at the complete heater or control cabinet level.
Control options can include:
– Thermostat control
– Temperature controller
– PID temperature control
– SCR power regulation
– Contactor control
– PLC control cabinet
– Airflow interlock
– Over-temperature alarm and shutdown
Safety Protection
Because a finned tubular heating element is normally installed inside a duct heater, oven or air heating system, safety protection should be designed together with the complete equipment.
Available protection options include:
– Over-temperature protection
– Airflow interlock or fan interlock
– Grounding protection
– Leakage protection
– Short-circuit protection
– High-temperature terminal protection
– Temperature sensor or thermostat near the heating zone
– Proper element spacing to avoid local overheating
Typical Applications
Electric Duct Heaters
Heating moving air inside rectangular or round industrial ducts.
Industrial Air Heaters
Providing forced-air heating for machinery and production equipment.
Hot Air Circulation Systems
Heating recirculated air in enclosed industrial systems.
Industrial Ovens
Providing convective heat for ovens, chambers and thermal-processing equipment.
Drying Equipment
Heating air used in industrial drying and moisture-removal processes.
Paint and Coating Drying Lines
Supplying heated air for compatible paint, coating and curing processes.
Packaging Machinery
Heating process air in shrink, sealing and packaging equipment.
Ventilation and Air-Handling Units
Providing temperature control in compatible industrial ventilation systems.
Textile and Printing Equipment
Heating process air in compatible drying, finishing and production equipment.
Food Machinery
Heating air in compatible industrial equipment where hygiene requirements are separately confirmed.
Laboratory and Test Equipment
Providing controlled air heating for test chambers and pilot equipment.
Customized Forced-Air Equipment
Drawing-based heating-element assemblies for specialized industrial air systems.
How to Select the Right Finned Tubular Heating Element
1. Application Equipment
State the duct heater, oven, dryer, air heater or other equipment type.
2. Airflow Rate
Provide minimum, normal and maximum airflow.
3. Inlet Air Temperature
Provide minimum, normal and maximum inlet temperature.
4. Required Outlet Temperature
State the target temperature and allowable tolerance.
5. Air Velocity
Provide the expected velocity across the finned element surface.
6. Voltage and Phase
Provide operating voltage, phase and connection method.
7. Required Power
Provide total power or required element power.
8. Element Shape
Provide straight, U-shaped, W-shaped or drawing-specific geometry.
9. Tube Diameter and Length
State tube diameter, overall length and heated length.
10. Sheath and Fin Material
State temperature, oxidation, humidity and corrosion requirements.
11. Mounting Method
Specify frame, bracket, plate, flange or other installation method.
12. Terminal or Lead
Specify terminal type, lead length, direction and protection requirement.
13. Fin Pitch and Fin Height
Provide required fin geometry or allowable installation and pressure-drop limits.
14. Cold-Zone Requirement
Provide unheated lengths near terminals and mounting areas.
15. Drawing, Quantity and Testing
Supply the drawing, tolerances, quantity, inspection and testing requirements.
Why Choose Xiangyuan Machinery
Xiangyuan Machinery provides custom industrial electric heating elements, electric heaters and complete heating systems for demanding process applications. Each finned tubular heating element can be engineered according to real working conditions, airflow, temperature, installation layout, material requirements and electrical safety requirements.
Thermal & Material Engineering
Custom design according to drawings or project parameters Material selection for industrial air heating environments
Flexible Mechanical Arrangement
Custom shape, terminal and mounting structure
Control & Safety Integration
Integrated heater and control cabinet options Support for non-standard industrial heating projects
Complete Project Supply
Factory inspection before delivery
Need a custom finned tubular heating element?
Send us your element size, voltage, power, airflow condition, working temperature and installation drawing. Xiangyuan Machinery can customize finned tubular heating elements for duct heaters, ovens, dryers and other industrial air heating equipment.
